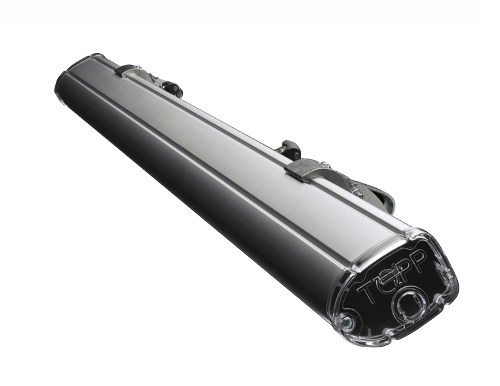

Topp C240 Chain Actuator

Call us for latest pricing

Brand: Topp | Manufacturer Part numbers: C240 230V, C240 24V

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Cupolas
Specifications at a glance:

Max applicable load in thrust: 400 N

Max applicable load in traction: 300 N

Stroke: 360 mm

Idle translation speed: 8 mms

Protection Class: IP 30

Voltage supply: 230v AC, 24v DC

Colours Available:

Available in die cast aluminium

Aluminium

Description

Topp C240 Chain Actuator
Electric chain actuator model Topp C240 with 2 double-link chains, in an elegant die-cast aluminium profile, with custom-made length from 1200 mm to 4000 mm, complete with brackets and accessories for top and bottom hung windows.

Operation at 230V~50Hz or, as an alternative, at 24V DC. Max. thrust force 400N. Fast hooking and unhooking system to the window frame. Max. stroke 360 mm.
CE marked.

Additional information

Manufacturer

Brand

Topp

Topp

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights
  • Cupolas
Product Applications: Bottom hung, Top hung, Cupolas, Skylights

Technical Details

Model:
C240 230V
C240 24V
Power voltage:
230V ~ 50Hz
min 21V ~ max 28V
Max applicable load in thrust:
400 N
400 N
Max applicable load in traction:
300 N
300 N
Stroke:
360 mm
360 mm
Absorbed current:
0,22 A
0,75 A
Idle translation speed:
8 mms
7,5 mms
Duration of the idle stroke:
46 s
48 s
Double electrical insulation:
yes
Service type:
S2 di 4 min
S2 di 4 min
Operating temperature:
– 5°C + 50°C
– 5°C + 50°C
Protection Class:
  IP 30
IP30
Window mounting adjustment:
not necessary
not necessary
Parallel connection option:
yes
yes
Stroke end:
Electronic in opening, by amperometric absorption in closing
Electronic in opening, by amperometric absorption in closing

Download PDF's

TOPP Chain actuator C240 instructions

TOPP Chain actuator C240 pdf details
