Topp C260 Double Chain Actuator
Topp C260 Double Chain Actuator

Topp C260 Double Chain Actuator

Call us for latest pricing

Enquire or Call 01702 826267 to Order

Brand: Topp | Manufacturer Part numbers: C260 230V

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights
  • Cupolas
Specifications at a glance:

Max applicable load in thrust: 600 N

Max applicable load in traction: 600 N

Stroke: 600 mm

Idle translation speed: 13 mms

Protection Class: IP 30

Voltage supply: 230v AC

Colours Available:

Available in black
Black		 Available in silver
Silver

Description

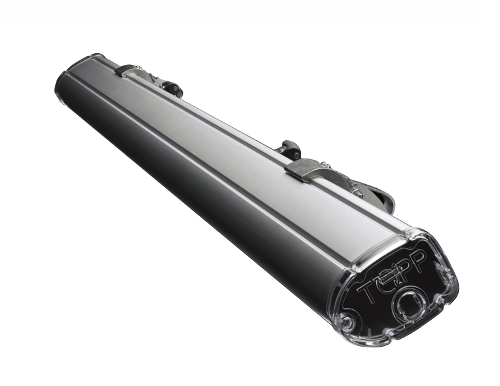

Topp C260 Double Chain Actuator

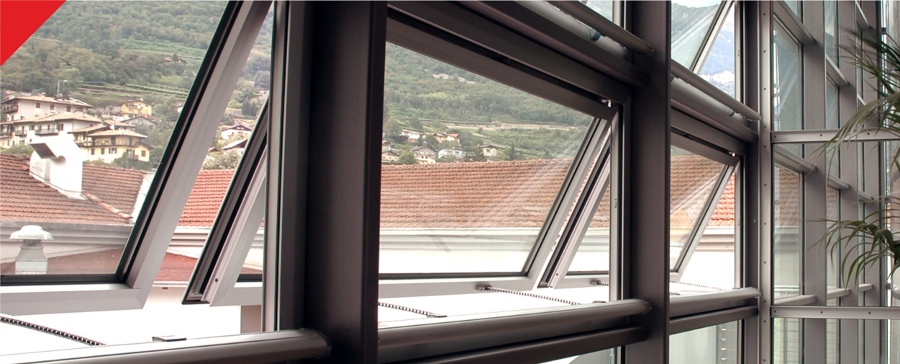

Electric actuator Topp model C260 with 2 double-link chains, in an elegant diecast aluminium profile, with custom-made length from 1500 mm to 4000 mm, complete with brackets and accessories for top and bottom hung windows.

Operation at 230V~50Hz. Max. thrust force 600N. Max. stroke 600 mm. Electronic end of stroke in closing by current absorption control.
CE marked device.

Additional information

Manufacturer

Brand

Topp

Topp

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights
  • Cupolas
Product Applications: Bottom hung, Top hung, Cupolas, Skylights

Technical Details

Model:

C260 230V
Power voltage:

230V ~ 50Hz
Max applicable load in thrust:

600 N
Max applicable load in traction:

600 N
Stroke:

600 mm
Absorbed current:

0,4 A
Idle translation speed:

13 mms
Duration of the idle stroke:

48 s
Double electrical insulation:

yes
Service type:

S2 di 4 min
Operating temperature:

– 5°C + 50°C
Protection Class:

IP30
Window mounting adjustment:

not necessary
Parallel connection option:

yes
Stroke end:

Electronic in opening, by amperometric absorption in closing

Download PDF's

TOPP Chain actuator C260 instructions

TOPP Chain actuator C260 pdf details
