Nekos Kato 305 RWA

Nekos Kato 305 RWA
By: Joseph Date: July 8, 2021
Nekos kato 305 rwa actuator

Call for details

Brand: Nekos | Manufacturer Part numbers: Kato 305 RWA

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Pivot frames
Specifications at a glance:

Traction force:  300 N
Thrust force:  300 N
Strokes:  200 mm / 300 mm / 500 mm
Protection Class:  IP 32

Colours Available:

Available in black
Black		Available in white
White		Available in grey
Grey


Bracket Options:
Get in touch for help picking the right brackets for your window.

Nekos Kato 305 brackets
NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Order or Ask us about this Product
Category: Tags: ,
nekos kato 305 rwa
Nekos kato 305 rwa

Description

Kato 305 and 305 RWA have successfully passed the most demanding heat and fire resistance tests as specified by the standard EN 12101-2:2003-09, obtaining the classification of B 300 with certificate No. 13-000921 at the IFT testing institute of Rosenheim in year 2013. This is a guarantee for safety, quality, efficiency, reliability and constructional simplicity, all with an attractive design for incorporation in state-of-the-art window frames.

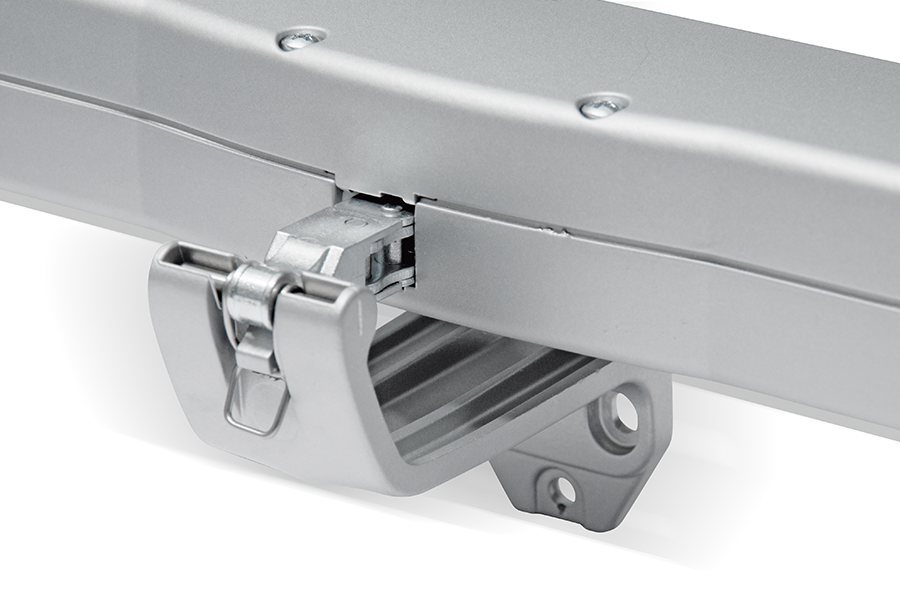

It has new electronic technology based on the use of a microprocessor to control the position and manage every working phase. The bodywork is made of die-cast aluminium and the support brackets are manufactured from zinc alloy (zamak). It’s easy to install with quick-coupling assembly onto the support brackets, without any screws or fastening components (NEKOS patented system); another Nekos patent provides for the actuator’s quick-release from the window even just for easier cleaning. The strokes can be selected by means of dip-switches.

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267

Brand

Nekos
Nekos

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
Product applications top & bottom hung windows

Technical Details

Model:
Kato 305 RWA 230V
Kato 305 RWA 24V

Power voltage:
  110 – 230V  50/60 Hz
24V

Traction force:
300 N
300 N

Thrust force:
300 N
300 N

Strokes:
200 mm / 300 mm / 500 mm
200 mm / 300 mm / 500 mm

Absorbed current:
0,32 A -0,21 A
0,95 A

Power absorption at nominal load:
25-28 W
23 W

No load speed:
9,2 mm / s
9,2 mm / s

Duration of load stroke: (500 mm)
54 s
54 s

Electrical insulation:
Class II
Class III SELV

Type of service:
2 cycles
5 cycles

Operating temperature:
  – 5°C + 65°C
– 5°C + 65°C

Protection Class:
IP32
IP32

Parallel opening of 2 or more motors:
yes (max 10 actuators)
yes (max 10 actuators)




Window frame connection adjustment:
Automatic definition of position
Automatic definition of position

Syncronised function:
  no
no





Length of power cable:
2 m
2 m

Connection in Parallel:
  yes  (max 10)
yes  (max 10)




Stroke end:
Electronic by dip switch, by power absorption in closing
Electronic by dip switch, by power absorption in closing




Dimensions:
386,5 x 59 x 37 mm
456 x 60 x 43 mm

Weight:
1,55 kg
1,55 kg
