Topp C20 Chain Actuator
Topp C20 Chain Actuator
Topp C20 Chain Actuator
Topp C20 Chain Actuator
Topp C20 Chain Actuator
Topp C20 Chain Actuator
Topp C20 Chain Actuator
Topp C20 Chain Actuator
Topp C20 Chain Actuator

Topp C20 Chain Actuator

► Click to Enquire, or call us on 01702 826 267 to order

If you prefer to speak to us by phone during office hours please call: 01702 826 267

Brand: Topp | Manufacturer Part numbers: C20 230V, C20 24V

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Cupolas
Specifications at a glance:

Max applicable load in thrust:  300 N
Max applicable load in traction:  200 N
Strokes (selectable at any time):  240 e 360 mm
Protection Class:  IP 30
Voltage supply: 230v AC, 24v DC

Colours Available:

Available in black
Black 		Available in white
White 		Available in silver
Silver/Grey

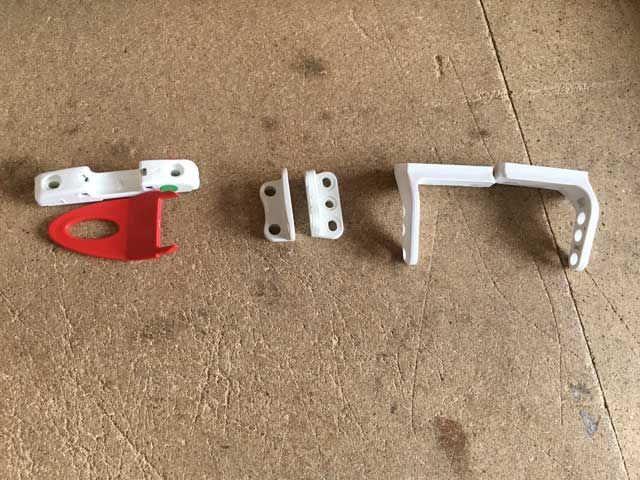

Bracket Options:
Options listed in Download Pdf below.
Get in touch for help picking the right brackets for your window.

Get in touch for help picking the right brackets for the Topp C20 Window Opener.
NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Category: Tag:

Description

Topp C20 Chain Actuator

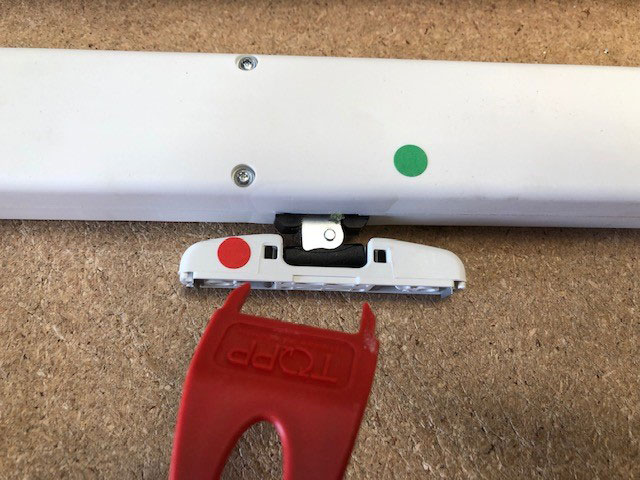

Electric C20 actuator with double link articulated chain, enclosed in a suitable casing, with different mounting accessories for top and bottom hung windows. Operation at 230V 50Hz or, as an alternative, at 24V DC. Maximum applicable load 300N. Fast hooking and unhooking system of the chain to the window.

Adjustment of the force and of the stroke at 240 or 360mm by external knobs. Electronic end of stroke in closing by current absorption control.
CE marked device.



Free Live Product Support - help finding window opener products

Order Now by Phone



We offer free expert phone guidance & advice to both trade and public

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm it is the correct product for your exact needs.

To Order or for Advice – Dial: 01702 826 267

Brand

Topp
Topp















Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Cupolas

Technical Details

Model:
C20 230V
C20 24V

Power voltage:
230V ~ 50Hz
min 21V ~ max 28V

Max applicable load in thrust:
300 N
300 N

Max applicable load in traction:
200 N
200 N

Strokes (selectable at any time):
240 e 360 mm
240 e 360 mm

Absorbed current:
0,12 A
0,43 A

Idle translation speed:
8 mms
7,5 mms

Duration of the idle stroke:
46 s
48 s

Double electrical insulation:
yes
–

Service type:
S2 di 4 min
S2 di 4 min

Operating temperature:
– 5°C + 50°C
– 5°C + 50°C

Protection Class:
  IP 30
IP30

Window mounting adjustment:
not necessary
not necessary

Parallel connection option:
yes
yes

Stroke end:
Electronic in opening, by amperometric absorption in closing
Electronic in opening, by amperometric absorption in closing

Dimensions:
362x48x34 mm
362x48x34 mm

Weight:
0,970 kg  (the indicated weight is subject to variations, depending on the chosen accessories)
0,970 kg  (the indicated weight is subject to variations, depending on the chosen accessories)

Video Tutorials

Top Hung Topp C20 Chain Actuator Installation Guide

View Bottom Hung Installation Guide View Skylight Installation Guide

Download Product PDF's

Download TOPP Chain actuator C20 PDFsTOPP Chain actuator C20 instructions

TOPP Chain actuator C20 pdf details
