Description

Nekos Kato 305 RWA Syncro³
The Nekos Kato 305 RWA Syncro³ version based on communication between actuators through a direct connection allows instantaneous control of the force, speed and resistance of each actuator through an encoder reading of the work of the individual motors. The continuous exchange of information allows the actuators to open and close in synchronization. Syncro³ is the evolution of the first patent that provided for installation and wiring of a maximum of two motors connected directly to one another.

▪ Today the Syncro³ software allows connection of up to 8 motors directly to one another without the need for external synchronization control units.
▪ The number of actuators to be included on the frame in Syncro³ function varies according to the dimensions, weight and type of the frame itself.
▪ For a width of more than 1200 mm the use of two motors is already recommended in order to allow correct movement and perimeter seal of the frame when closed. An additional actuator is recommended for every additional 1200 mm of width.

Additional information

Stroke (mm)

Selectable, 200, 300, 500

Max Force (N)

300

Supply Voltage

24Vdc

Max Current (amps)

0.95

Max Speed (mm/s)

9.20

Locking Force (N)

2000

Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating

IP32

Manufacturer

Colour/Finish

Black (RAL 9005), Grey (RAL 9006), White (RAL 9010)

Brand

Nekos
Nekos

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
Product applications top & bottom hung windows

Technical Details

Model:
Kato 305 RWA 230V
Kato 305 RWA 24V
Power voltage:
  110 – 230V  50/60 Hz
24V
Traction force:
300 N
300 N
Thrust force:
300 N
300 N
Strokes:
200 mm / 300 mm / 500 mm
200 mm / 300 mm / 500 mm
Absorbed current:
0,32 A -0,21 A
0,95 A
Power absorption at nominal load:
25-28 W
23 W
No load speed:
9,2 mm / s
9,2 mm / s
Duration of load stroke: (500 mm)
54 s
54 s
Electrical insulation:
Class II
Class III SELV
Type of service:
2 cycles
5 cycles
Operating temperature:
  – 5°C + 65°C
– 5°C + 65°C
Protection Class:
IP32
IP32
Parallel opening of 2 or more motors:
yes (max 10 actuators)
yes (max 10 actuators)
Soft stop:
  yes
yes
Window frame connection adjustment:
Automatic definition of position
Automatic definition of position
Syncronised function:
  yes (max 8)
yes (max 8)
Relax function:
   yes
yes
Length of power cable:
2 m
2 m
Connection in Parallel:
  yes  (max 10)
yes  (max 10)


Stroke end:

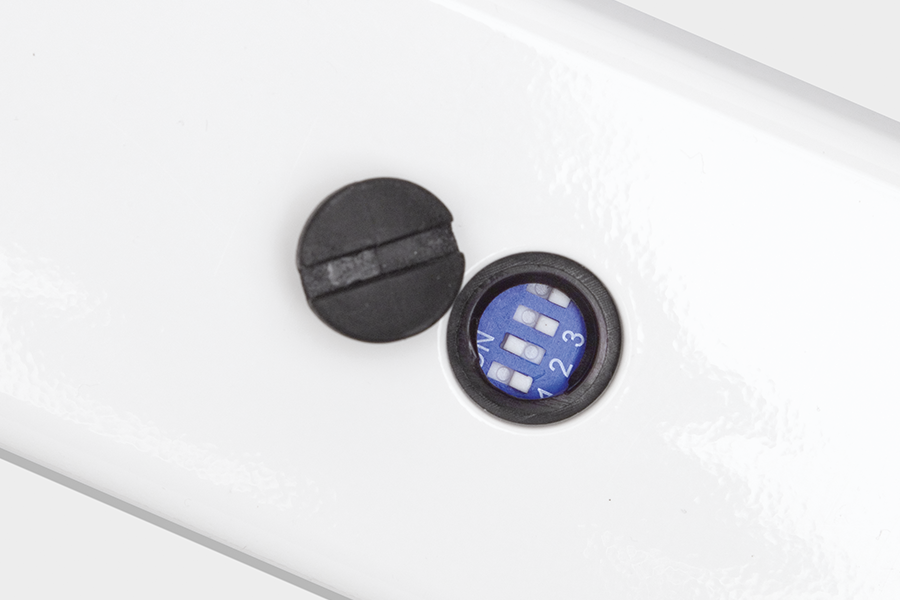

Electronic by dip switch, by power absorption in closing
Electronic by dip switch, by power absorption in closing


Dimensions:
386,5 x 59 x 37 mm
456 x 60 x 43 mm
Weight:
1,55 kg
1,55 kg
