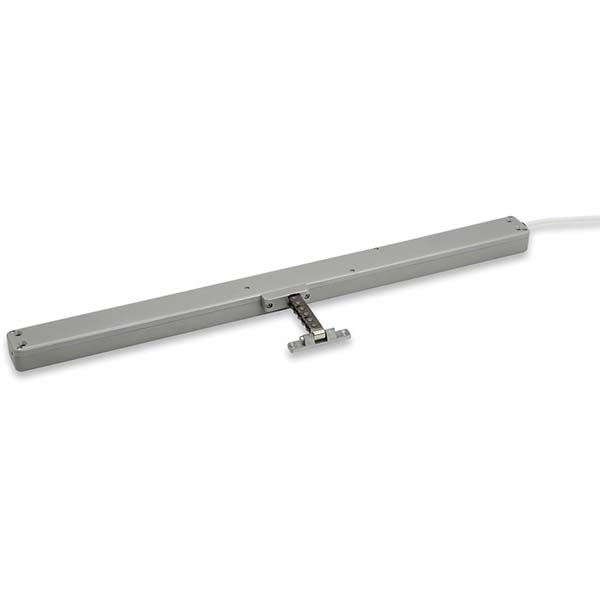

Ultraflex Control Systems Quasar DC
MAIN FEATURES:
High performance in small die-cast aluminum casing (47 x 32 mm), powder painted.
Chain in double stainless steel links. Chain exit in central position.
Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.
QUASAR DC is provided with 1,5 m cable (no synchronization, feedback signal and speed selection). Suitable for combined installation with the additional locking device E-LOCK or PLUSULTRA (see related data sheet).
OTHER VERSIONS UPON REQUEST:
QUASAR DC versions with IP42 protection class, for a higher resistance against atmospheric agents.
RAL colour and chain length can be customised.
Additional information
Stroke (mm) | 500 |
---|---|
Max Force (N) | 300 |
Supply Voltage | 24Vdc |
Max Current (amps) | 0.90 |
Max Speed (mm/s) | 15.00 |
Locking Force (N) | 3000 |
Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
IP Rating | IP40 |
Manufacturer | |
Colour/Finish | Black (RAL 9005), Grey (RAL 9006), White (RAL 9010) |
