Product Information
Description

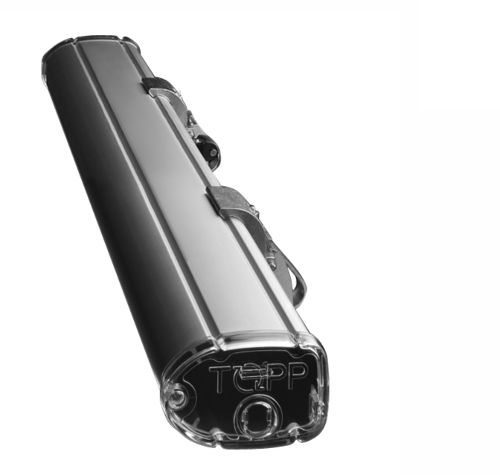

Topp C130 Chain Actuator
Electric actuator Topp model C130 with double-link chain, in an elegant die-cast aluminium profile, with custom-made length from 600 mm to 1200 mm, complete with brackets and accessories for top and bottom hung windows.
Operation at 230V ~ 50Hz or, as an alternative, at 24V d.c. Max. thrust force 300N. Fast hooking and unhooking system to the window frame. Max. stroke 360 mm.
CE marked device.
Additional information
| Stroke (mm) | 360 |
|---|---|
| Max Force (N) | 300 |
| Supply Voltage | 230Vac |
| Max Current (amps) | 0.12 |
| Max Speed (mm/s) | 8.00 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP30 |
| Manufacturer | |
| Colour/Finish | Aluminium |
Brand
Topp
Product Applications
|
This product is suitable for:
 |
Technical Details
Model:
C130 230V
C130 24V
Power voltage:
230V ~ 50Hz
min 21V ~ max 28V c.c.
Max applicable load in thrust:
300N
300N
Max applicable load in traction:
200 N
200 N
Stroke:
360 mm
360 mm
Absorbed current:
0,12 A
0,43 A
Idle translation speed:
8 mms
8 mms
Duration of the idle stroke:
46 s
48 s
Service type:
S2 di 4 min
S2 di 4 min
Operating temperature:
– 5°C + 50°C
– 5°C + 50°C
Protection Class:
IP 30
IP30
Parallel connection option:
yes
yes
Window mounting adjustment:
not necessary
not necessary
Stroke end:
Electronic in opening, by amperometric absorption in closing
Electronic in opening, by amperometric absorption in closing
