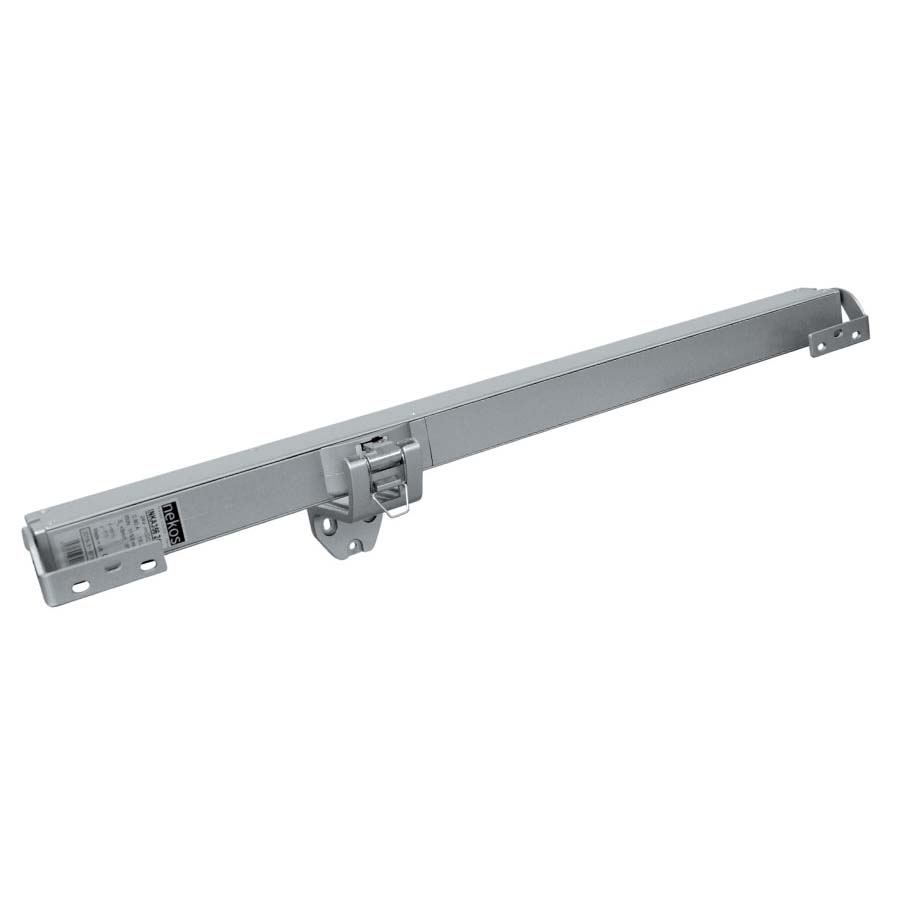

Nekos Inka 356 – 350N Chain Actuator

Call us for latest pricing

Enquire or Call 01702 826267 to Order

Brand: Nekos | Manufacturer Part numbers: Inka 356

This product is suitable for:

Top-hung windows
Bottom-hung windows
Skylights, roof windows
Pivot frames
Cupolas

Specifications at a glance:

Traction force: 350 N

Thrust force: 350 N

Strokes: 300 mm / 600 mm / 800 mm/ 1000 mm

Protection Class: IP 32

Voltage supply: 230v AC, 24v DC

Colours Available:

SAA

Nekos Inka 356
The Nekos Inka 356 is the latest member of Nekos chains actuators’ family and it widens the supply of force (350N) and strokes (from 200 to 1000mm) adapting to diverse kind of windows from outward and vasistas to dormer windows and dome.

Brand

Nekos

Product Applications

This product is suitable for:

Top-hung windows
Bottom-hung windows
Pivoting frame windows
Roof windows
Cupolas

Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

Inka 356 230V

Inka 356 24V

Power voltage:

110 – 230V 50/60 Hz

24V

Traction force:

350 N

Thrust force:

350 N

Strokes:

300 mm / 600 mm / 800 mm / 1000 mm

Absorbed current:

0,32 A -0,21 A

0,95 A

Power absorption at nominal load:

27-29 W

23 W

No load speed:

11/9,5 mm / s

Duration of load stroke: (500 mm)

300 / 600 / 800 / 1000 = 28 / 54 / 72 / 90 s

Electrical insulation:

Class II

Class III SELV

Type of service:

2 cycles

Operating temperature:

– 10°C + 70°C

Protection Class:

IP32

Parallel opening of 2 or more motors:

yes (max 10 actuators)

Window frame connection adjustment:

Position self determining

Syncronised function:

Length of power cable:

2 m

Stroke end:

Electronic by dip switch, by power absorption in closing

Dimensions:

386,5 x 59 x 37 mm

456 x 60 x 43 mm

Weight:

1,55 kg

Download PDF's

Nekos Chain actuator Inka 356 instructions

Nekos Chain actuator Inka 356 data
