Brand: Ultraflex Control Systems | Manufacturer Part numbers: 48035J, 48036K, 48037L
- Top-hung windows
- Bottom-hung windows
- Skylights, roof windows
- Pivot frames
Traction force: Programable up to 300 N
Thrust force: Programable up to 300 N
Strokes: Programmable up to 500 mm
Protection Class: IP 40
Voltage supply: 24v DC

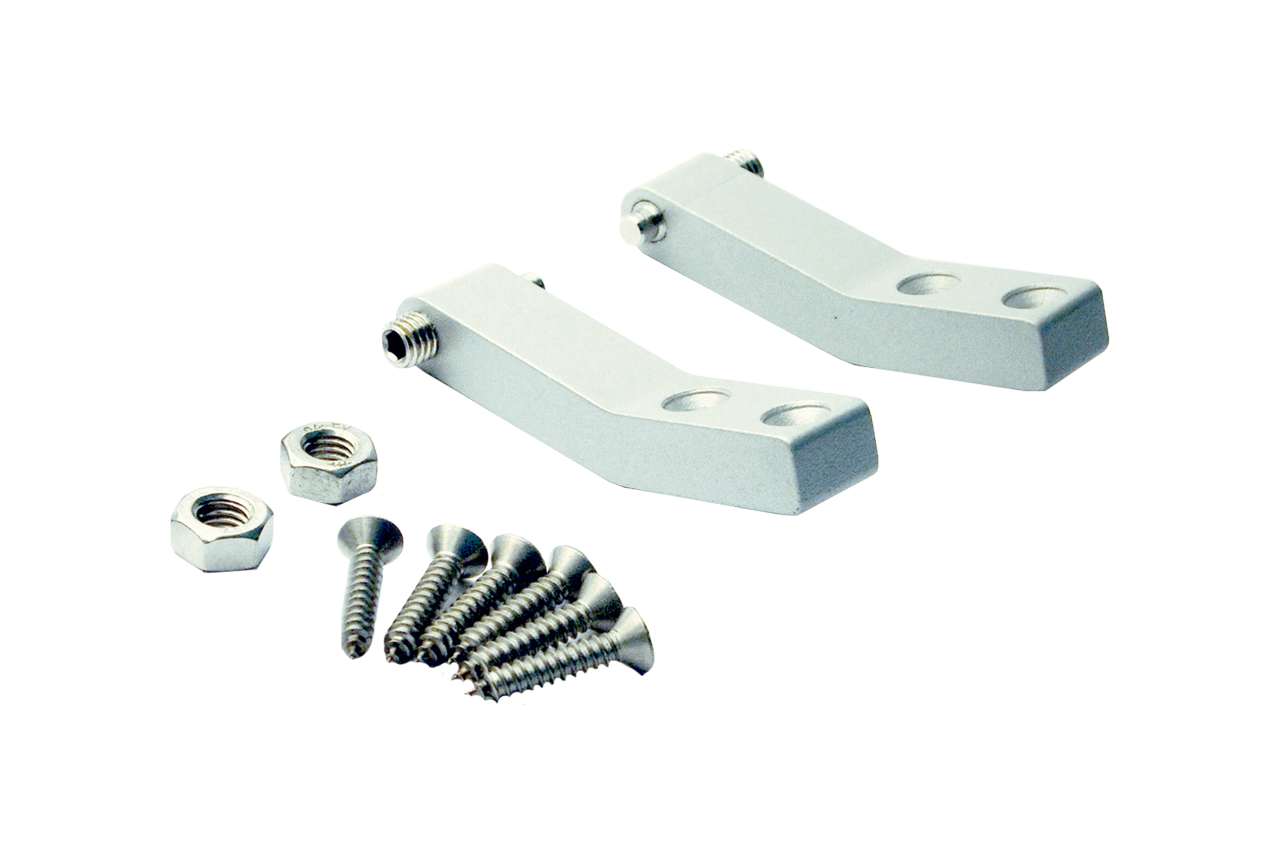

Get in touch for help picking the right brackets for your window.
Call 01702 826267 to order or for advice
Next Day Delivery on 100s of Products
Free for Trade & Public
Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

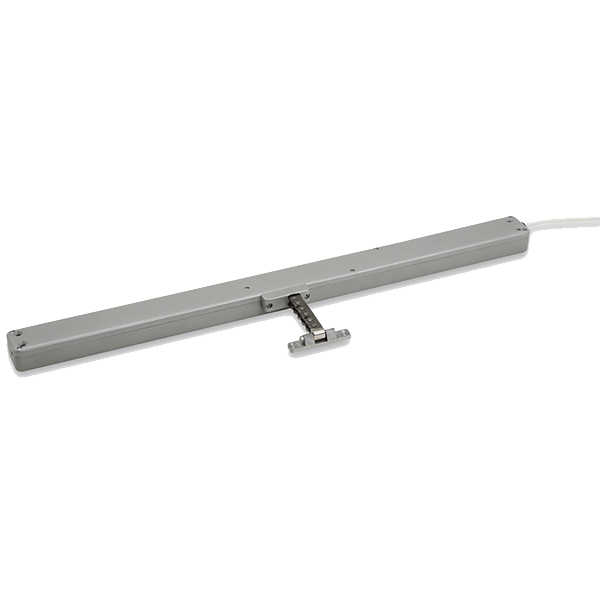

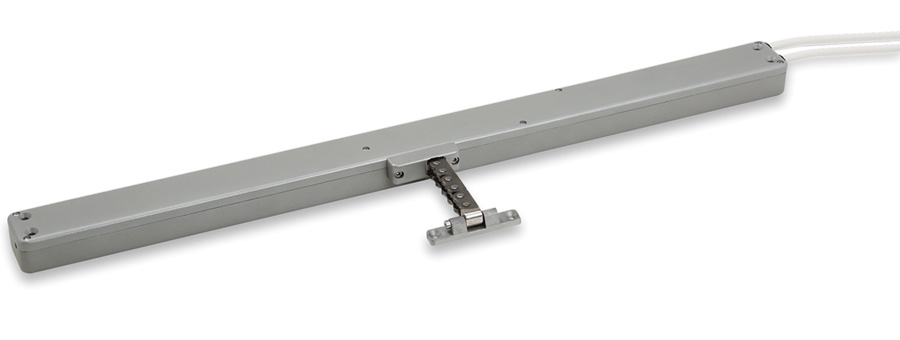

BMSline PROGRAMMABLE and ADDRESSABLE chain actuators:
New generation of compact actuators fully programmable in all functions, providing two-way communication with computer system. Integrating window automation with the BMS Building Management System will enable interaction with other systems in building (HVAC, lighting…) granting considerable energy saving, improving comfort and wellbeing, becoming health and productivity. At the same time the building’s safety is assured by smoke ventilation in emergencies.
> Compatible with all existing building management systems
> Continual, totally controlled window with 100% real-time feedback. Not just an ON/OFF operation (open/close)
> Addressable actuators in order to control the environment of each room in a building.
> No need for external modules/control panels: the actuator has built-in intelligence
> Window controlled locally by a standard wall switch, even with a centralized Building Management System.
> Smoke Ventilation Control Panels with back-up batteries can be directly and safely connected.
> Percentage of opening and closing action.
> Speed, in opening and closing action.
> Force, in opening and closing action.
> Real close position of the window.
> Closing position tolerance.
> Soft stop length and speed.
> Full opening or closing
> Percentage of opening and position of the chain.
> Current setting of parameters and scenarios
> Location in the building and address in the network.
> Command state
> Eventual Failures
Order Now by Phone
The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.
To Order Dial: 01702 826 267
Ultraflex Control Systems
This product is suitable for:
