Description

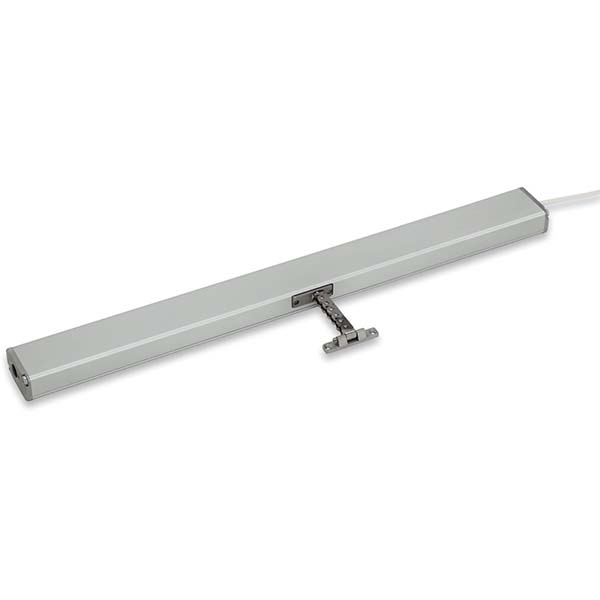

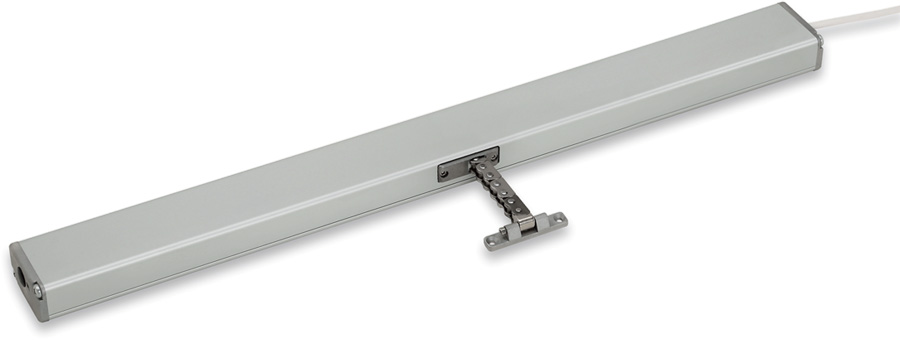

Ultraflex Control Systems Quasar L DC
MAIN FEATURES:
Available 3 different strokes: 600 mm – 750 mm – 1000 mm.
Chain in double stainless steel links.
Anodized (silver) or painted (white or black) aluminum casing.
Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.
Easy replacement of the cable in case a different / longer cable or a different colour is required; upon request it is possible to supply actuators with cable exit by the opposite side.
QUASAR L DC is provided with 3 m cable (no synchronization, feedback signal and speed selection). Suitable for combined installation with the additional locking device E-LOCK or PLUSULTRA (see related data sheet).
OTHER VERSIONS UPON REQUEST:
QUASAR L DC versions with IP42 protection class, for a higher resistance against atmospheric agents.
RAL colour and chain length can be customised.
Additional information
| Stroke (mm) | 600, 750, 1000 |
|---|---|
| Max Force (N) | 300 |
| Supply Voltage | 24Vdc |
| Max Current (amps) | 0.90 |
| Max Speed (mm/s) | 15.00 |
| Locking Force (N) | 3500 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP40 |
| Manufacturer | |
| Colour/Finish | Black (RAL 9005), Silver Anodised, White (RAL 9010) |
Brand
Ultraflex Control Systems
Product Applications
|
This product is suitable for:
 |
Ultraflex Control Systems UCS Quasar L DC data sheet
