Nekos Kato Syncro³

Call us for latest pricing

Brand: Nekos | Manufacturer Part numbers: Kato Syncro?

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Pivot frames
Specifications at a glance:

Traction force: 300 N

Thrust force: 300 N

Strokes: 100 mm / 200 mm / 400 mm

Protection Class: IP 30

Voltage supply: 230v AC, 24v DC

Colours Available:

Available in black

Black

Available in white

White

Available in Silver Anodised

SAA

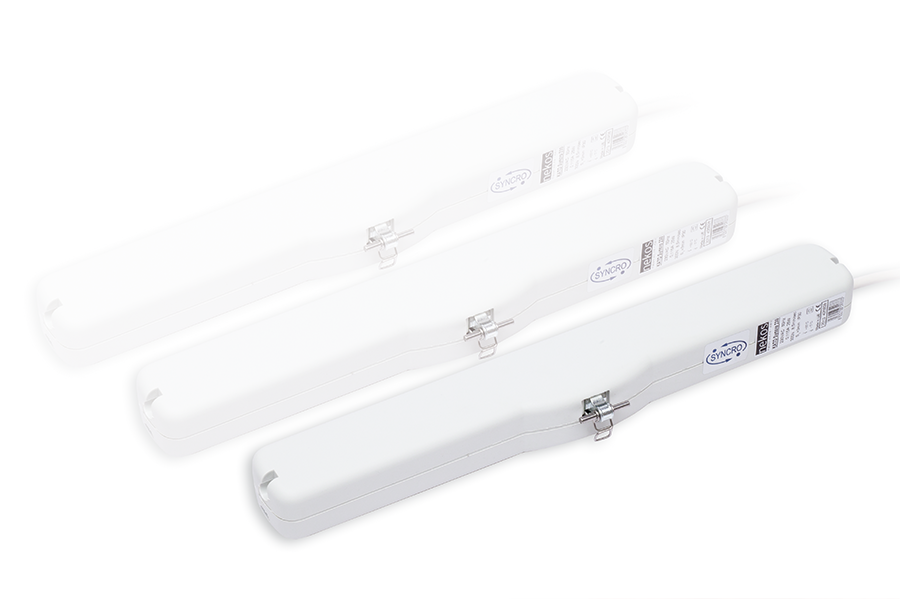

Nekos Kato Syncro³
Kato Syncro3 is the evolution of the original Nekos patent which now allows perfectly coordinated synchronization of up to 8 (eight) actuators without the use of external control units.

Syncro3 is the only true synchronization of actuators for windows existing on the market and only one of many patents that Nekos has registered, in confirmation of the high technology achieved by the company and its R&D department.



Brand

Nekos
Nekos

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
Product applications top & bottom hung windows

Technical Details

Model:
Syncro³ 230V
Syncro³ 24V
Power voltage:
  110 – 230V
24V
Traction force:
300 N
300 N
Thrust force:
300 N
300 N
Strokes:
100 mm / 200 mm / 400 mm
100 mm / 200 mm / 400 mm
Absorbed current:
0,34 A -0,21 A
0,95 A
Power absorption at nominal load:
26-27 W
23 W
No load speed:
8,9 mm / s
8,9 mm / s
Duration of load stroke: (400 mm)
44 s
44 s
Electrical insulation:
Class II
Class III SELV
Type of service:
2 cycles
5 cycles
Operating temperature:
  – 5°C + 65°C
– 5°C + 65°C
Protection Class:
IP30
IP30
Parallel opening of 2 or more motors:
yes (max 10 actuators)
yes (max 10 actuators)


Window frame connection adjustment:
Automatic definition of position
Automatic definition of position
Syncronised function:
  no
yes (max 8)
Holding nominal force:
  1600 N (can vary according to brackets)
1600 N (can vary according to brackets)
Length of power cable:
2.5 m
2.5 m
Connection in Parallel:
  yes  (max 10)
yes  (max 10)
Signaling window open/closed:
  no
no
Stroke end:
Electronic by dip switch, by power absorption in closing
Electronic by dip switch, by power absorption in closing
Chain exit:

Central
Dimensions:
386,5 x 59 x 37 mm
386,5 x 59 x 37 mm
Weight:
1,150 kg
1,150 kg
