AOV Window Stairwell Smoke Ventilation

Fully Compliant • Quick Delivery • Installation Service Available

Our AOV smoke vent windows meet all the requirements under BS EN 12101-2 making them certified for use in a smoke ventilation systems. We’ll work with you to find the best delivery date with same day options available. We can recommend an installer for most parts of the UK. But if you want to handle that yourself, we’ll be on hand for technical installation support if required.

For a quick price or help selecting the right kit, why not fill in our enquiry form below and we’ll be in touch.

Stairwell Kit Illustration 2

Next day delivery for 1000s of products

The right solutions at trade prices

Helpful staff for technical advice

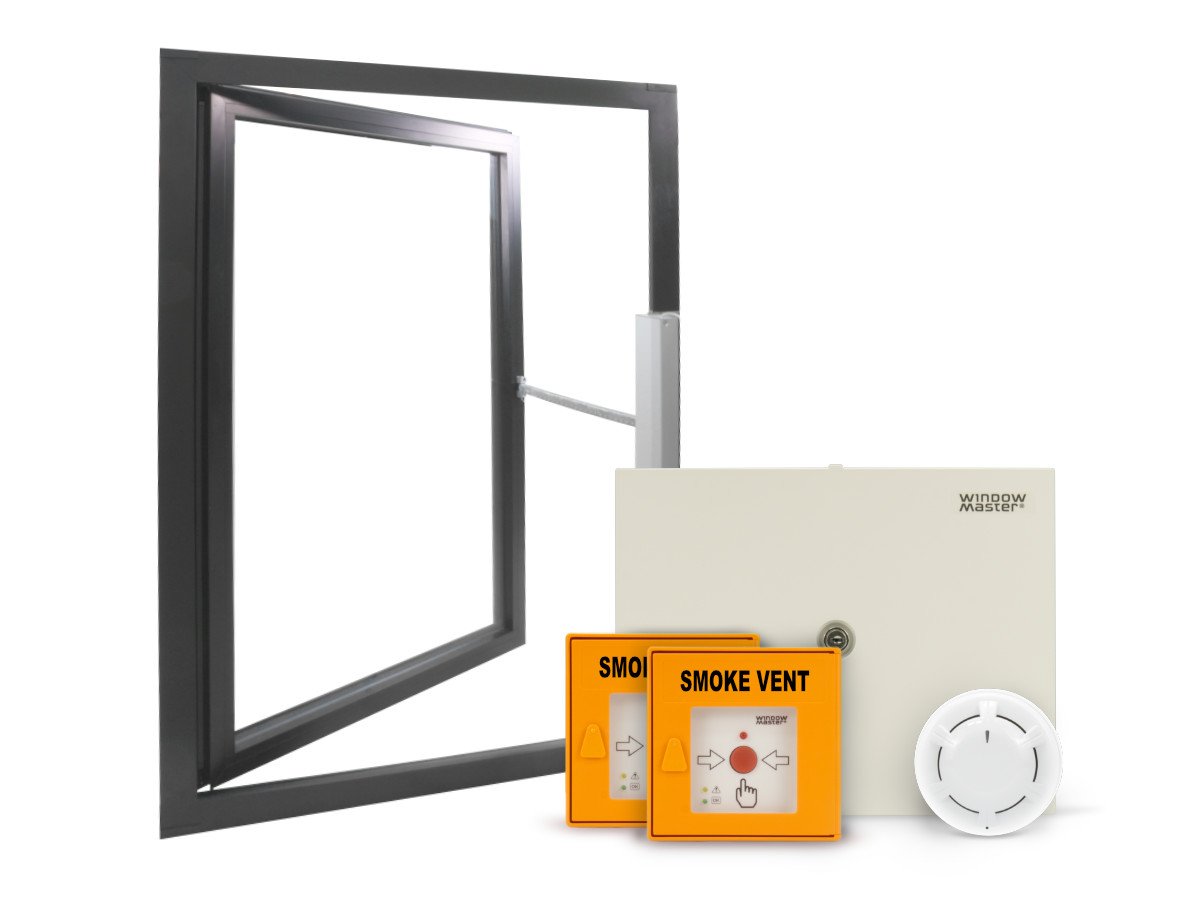

Kit Groupshot 2

Rocburn AOV Window for Facades

  • Typically 1m² or 1.5m² GFA (Geometric Free Vent Area)
  • Custom/Bespoke sizes and RAL colours available.
  • Double or Triple glazing options.
  • Fire-resistant, aluminium frame construction
  • BS EN 12101-2 certified

WindowMaster Smoke Vent Panel

  • CompactSmoke™ Control Panel
  • 24v DC
  • 72-hour battery backup, batteries included
  • 2x Breakglass/reset/monitoring switch
  • Connection to either Smoke Detector or Fire Alarm input
  • BS EN 12101-10 certified

Example Window Stairwell Smoke Ventilation Kit

Single stairwell kit for buildings under 11m (3-4 storeys), described as a small single stair buildings in Approved Document B. If you’re building is bigger, we can adjust things to suit, so use the enquiry form or call us on 01702 826 267 to find out more.

Up to 1.5m² GFA AOV Kit with Fire Alarm Trigger Up to 1.5m² GFA AOV Kit with Smoke Detector Trigger
For a tailored quote, get in touch with our smoke ventilation experts.
WindowMaster Stairwell Control Panel WindowMaster Stairwell Control Panel
AOV Window
1m² or 1.5m² GFA
(Geometric Free Vent Area)
AOV Window
1m² or 1.5m² GFA
(Geometric Free Vent Area)
2x Breakglass/reset/monitoring switch 2x Breakglass/reset/monitoring switch
Fire Alarm Integration Module Smoke Detector
Call us on 01702 826 267

Our technical staff are available, Mon-Fri 08:30 – 17:30. We’ll work with you to find the right product for your project.

Enquiry Form

Fill in what you can and we’ll do the rest.

Same Day Delivery Zones

Fully Certified and Delivered

Most windows are built specifically for your structural opening and ventilation requirements. Our manufacturers have a lead time of around 4-5 weeks for bespoke orders. Upon receiving your window, we can dispatch together with your controls using a dedicated same day transit service.

Frequently Asked Questions

Why choose an AOV Louvre instead of a window?2023-10-17T12:48:27+01:00

Aside from the obvious appearance reasons there are a few other benefits louvres can provide when used in smoke ventilation.

  • Glazed AOV louvres provide more flexbility in structural opening dimensions, making full, floor to ceiling height window possible.
  • It’s not always possible to install a Julliet Balcony of  other fall arrest structure on facades, so louvres can work better in these situations.  During design, the individual blades can be customised to be fixed instead of opening with the rest of the vent.
  • Thermal efficiency, louvres can have better U-Value ratings than casement windows.
What safety measures are required for fall arrest in smoke shafts?2023-06-02T16:22:41+01:00

Smoke shafts typically extend the height of multiple floors in a building and the size of the vent openings introduces a safety issue. It’s important to ensure that grills and fall arresters are installed as required to prevent accidental falls.

What are the common sizes for Dampers and Smoke Shafts?2023-06-02T16:22:18+01:00

There’s no standard size but the most common sizes are below.

Dampers – 800w x 1920h
Doors – 1000w x 1500h
Shaft – 850×1800 or 1000m x 1500m throat size

How far should a Roof AOV open?2023-06-02T16:18:44+01:00

For single vents the vent will need to have an opening angle of at least 140°. Twin vents that are installed side by side should have each leaf open to at least 90°. This is primarily to reduce damage caused by wind and to ensure adequate airflow.

Can I use an AOV rooflight as an access hatch?2023-06-08T12:01:31+01:00

Yes, we’re able to supply the roof hatch with an offset motor assembly. This will allow you to place a ladder alongside and gain access to the roof when the hatch is open.

How do I know I’m choosing the right control panel?2023-06-12T14:43:31+01:00

All our product pages include detailed descriptions, technical details, specifications, and key information to help you determine if it is appropriate for your needs. If you are at any point unsure of a products suitability, then do not hesitate to contact us and one of our knowledgeable experts will help to make sure that you get the very best control panel to fit your buildings requirements.

What is the best brand of control panel?2024-05-22T10:52:54+01:00

At Rocburn we are proud to be stockists of some of the very best manufacturers of ventilation products including – Actulux, Aumuller and Window Master.
