Description

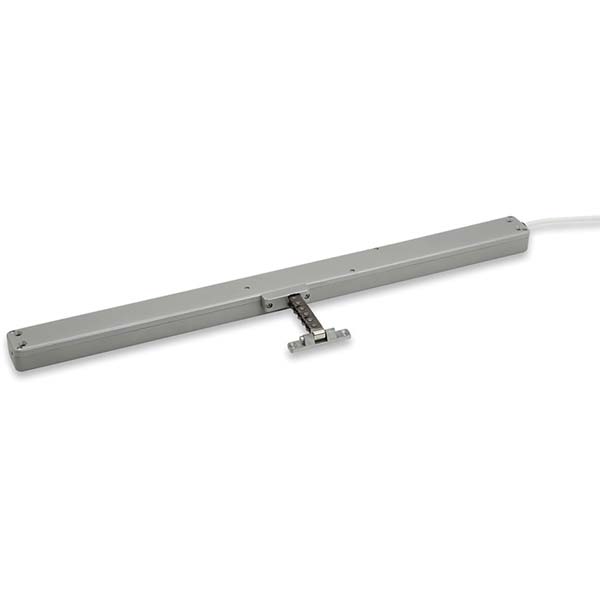

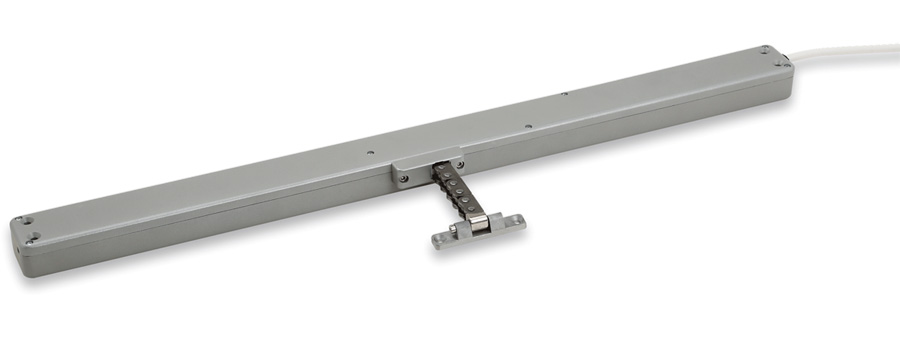

Ultraflex Control Systems Synchro Quasar DC
MAIN FEATURES:
High performance in small die-cast aluminum casing (47 x 32 mm), powder painted.
Chain in double stainless steel links. Chain exit in central position.
Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.
SYNCHRO QUASAR DC versions are equipped with an integrated speed synchronization control board for the installation of more than one actuator on the same vent, avoiding any external control panel. Suitable for combined installation with the additional locking device E-LOCK (see related data sheet).
AC version: 1 Synchro Quasar AC + 1 Synchro Quasar DC (max 2 couples), DC version: max 4 Synchro Quasar DC.
OTHER VERSIONS UPON REQUEST:
SYNCHRO QUASAR DC versions with IP42 protection class, for a higher resistance against atmospheric agents.
RAL colour and chain length can be customised.
Additional information
| Stroke (mm) | 500 |
|---|---|
| Max Force (N) | 300 |
| Supply Voltage | 24Vdc |
| Max Current (amps) | 0.90 |
| Max Speed (mm/s) | 15.00 |
| Locking Force (N) | 3000 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP40 |
| Manufacturer | |
| Colour/Finish | Black (RAL 9005), Grey (RAL 9006), White (RAL 9010) |
Brand
Ultraflex Control Systems
Product Applications
|
This product is suitable for:
 |
Ultraflex Control Systems UCS Synchro Quasar DC data sheet
