Product Information
Description

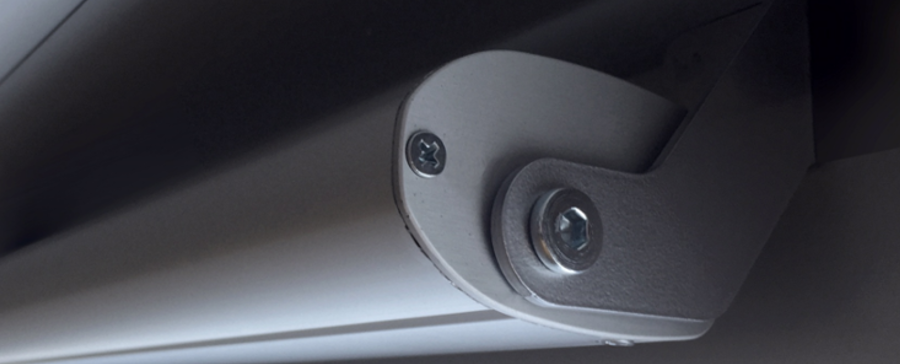

Topp C160 RWA Chain Actuator
Electric actuator Topp model C160 RWA with double-link chain, enclosed in an elegant die-cast aluminium profile, complete with brackets and accessories for bottom hinged windows opening outside for smoke evacuation systems. Operation at 24V according to the EN12101-2 European Standard about smoke and heat evacuation systems. Max applicable load 300N. Available strokes: 360mm – 600mm – 1000mm.
CE marked.
Additional information
| Stroke (mm) | 360 |
|---|---|
| Max Force (N) | 300 |
| Supply Voltage | 24Vdc |
| Max Current (amps) | 0.43 |
| Max Speed (mm/s) | 7.50 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP30 |
| Manufacturer | |
| Colour/Finish | Aluminium |
Brand
Topp

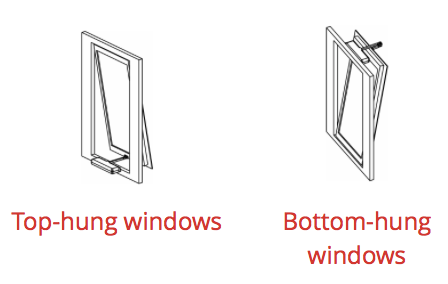

Product Applications
|
This product is suitable for:
|
Technical Details
Model:
C160 360
C160 600
C160 1000
Power voltage:
24V
24V
24V
Max applicable load in thrust:
300N
300N
50N
Max applicable load in traction:
200 N
185 N
185 N
Stroke for top hung application:
360 mm
600 mm
1000 mm
Stroke for bottom hung application:
322 mm
562 mm
962 mm
Absorbed current:
0,43 A
0,60 A
0,60 A
Idle translation speed:
7,5 mms
9,5 mms
9,5 mms
Duration of the idle stroke:
48 s
60 s
105 s
Service type:
S2 di 4 min
S2 di 4 min
S2 di 4 min
Operating temperature:
– 5°C + 50°C
– 5°C + 50°C
– 5°C + 50°C
Protection Class:
IP 30
IP 30
IP30
Parallel connection option:
yes
yes
yes
Window mounting adjustment:
not necessary
not necessary
not necessary
Stroke end:
Electronic in opening, by amperometric absorption in closing
Electronic in opening, by amperometric absorption in closing
Electronic in opening, by amperometric absorption in closing
Possible to install double push point on the same window:
yes
no
no
TOPP Double Chain actuator C160 RWA instructions
