Product Information
Description

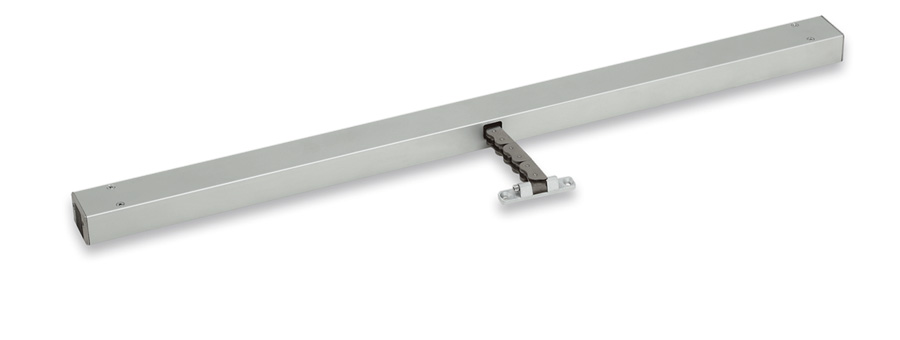

Ultraflex Control Systems Nano BMSline
BMSline PROGRAMMABLE and ADDRESSABLE chain actuators:
New generation of compact actuators fully programmable in all functions, providing two-way communication with computer system. Integrating window automation with the BMS Building Management System will enable interaction with other systems in building (HVAC, lighting…) granting considerable energy saving, improving comfort and wellbeing, becoming health and productivity. At the same time the building’s safety is assured by smoke ventilation in emergencies.
MAIN FEATURES:
> Compatible with all existing building management systems
> Continual, totally controlled window with 100% real-time feedback. Not just an ON/OFF operation (open/close)
> Addressable actuators in order to control the environment of each room in a building.
> No need for external modules/control panels: the actuator has built-in intelligence
> Window controlled locally by a standard wall switch, even with a centralized Building Management System.
> Smoke Ventilation Control Panels with back-up batteries can be directly and safely connected.
PROGRAMMABLE PARAMETERS:
> Stroke
> Percentage of opening and closing action.
> Speed, in opening and closing action.
> Force, in opening and closing action.
> Real close position of the window.
> Closing position tolerance.
> Soft stop length and speed.
FEEDBACK:
> Full opening or closing
> Percentage of opening and position of the chain.
> Current setting of parameters and scenarios
> Location in the building and address in the network.
> Statistics
> Command state
> Eventual Failures
Additional information
| Stroke (mm) | Programmable, 200, 300, 400, 500, 600, 800 |
|---|---|
| Max Force (N) | 400 |
| Supply Voltage | 24Vdc |
| Max Current (amps) | 1.20 |
| Max Speed (mm/s) | 14.00 |
| Locking Force (N) | 1900 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP40 |
| Manufacturer | |
| Colour/Finish | Black (RAL 9005), Grey (RAL 9006), White (RAL 9010) |
Brand
Ultraflex Control Systems
Product Applications
|
This product is suitable for:
 |
Ultraflex Control Systems UCS Nano BMSline instructions
