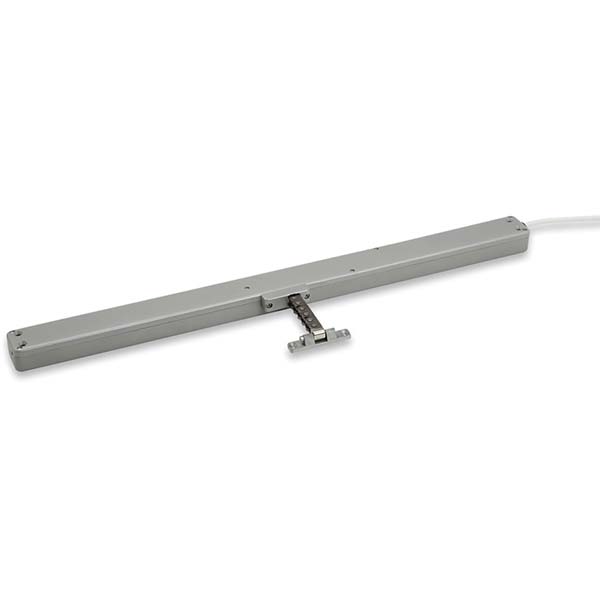

Ultraflex Control Systems QUASAR DC F-SIGNAL
MAIN FEATURES:
High performance in small die-cast aluminum casing (47 x 32 mm), powder painted.
Chain in double stainless steel links. Chain exit in central position.
Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.
QUASAR DC F-SIGNAL versions provide free potential opening and closing feedback signal (maintained contact), activated by the current limit. Suitable for combined installation with the additional locking device E-LOCK or PLUSULTRA (see related data sheet).
OTHER VERSION UPON REQUEST:
RAL colour and chain length can be customised.
Additional information
| Stroke (mm) | 500 |
|---|---|
| Max Force (N) | 300 |
| Supply Voltage | 24Vdc |
| Max Current (amps) | 0.90 |
| Max Speed (mm/s) | 15.00 |
| Locking Force (N) | 3000 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP40 |
| Manufacturer | |
| Colour/Finish | Black (RAL 9005), Grey (RAL 9006), White (RAL 9010) |
Brand
Ultraflex Control Systems
Product Applications
|
This product is suitable for:
 |
Ultraflex Control Systems UCS Quasar DC F-Signal data sheet
