Nekos Kato Chain Actuator

Nekos Kato Chain Actuator
By: Joseph Date: July 8, 2021
Nekos Kato chain actuator

Call for details

Brand: Nekos | Manufacturer Part numbers: Kato Chain Actuator

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Pivot frames
Specifications at a glance:

Traction force:  300 N
Thrust force:  300 N
Strokes:  110 mm / 200 mm / 300 mm / 400 mm
Protection Class:  IP 30
Power voltage: 230 V AC / 24V DC

Colours Available:

Available in white
Black		 Available in white
White		 Available in Silver Anodised
SAA


Bracket Options:
Get in touch for help picking the right brackets for your window.

Nekos Kato brackets
NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Order or Ask us about this Product
Category: Tags: , , ,

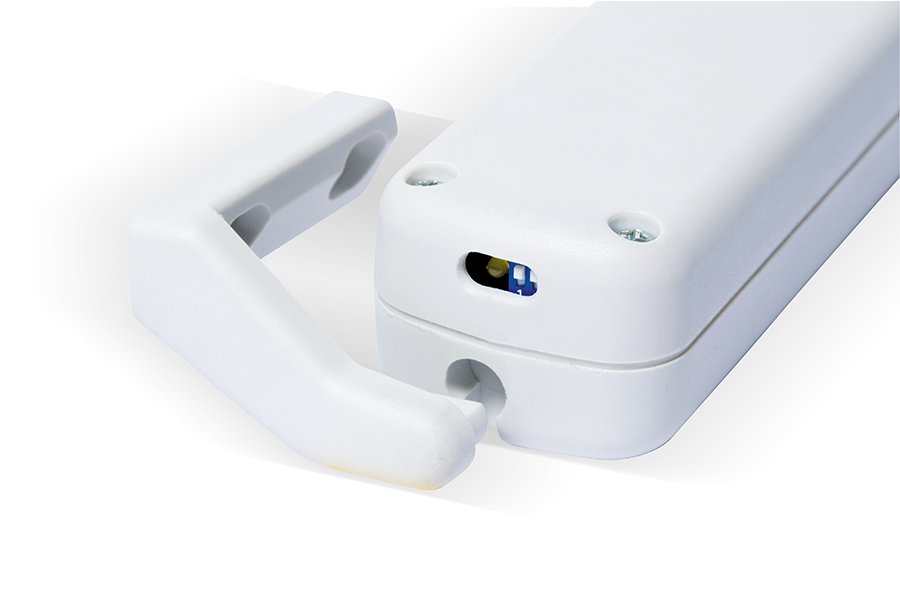

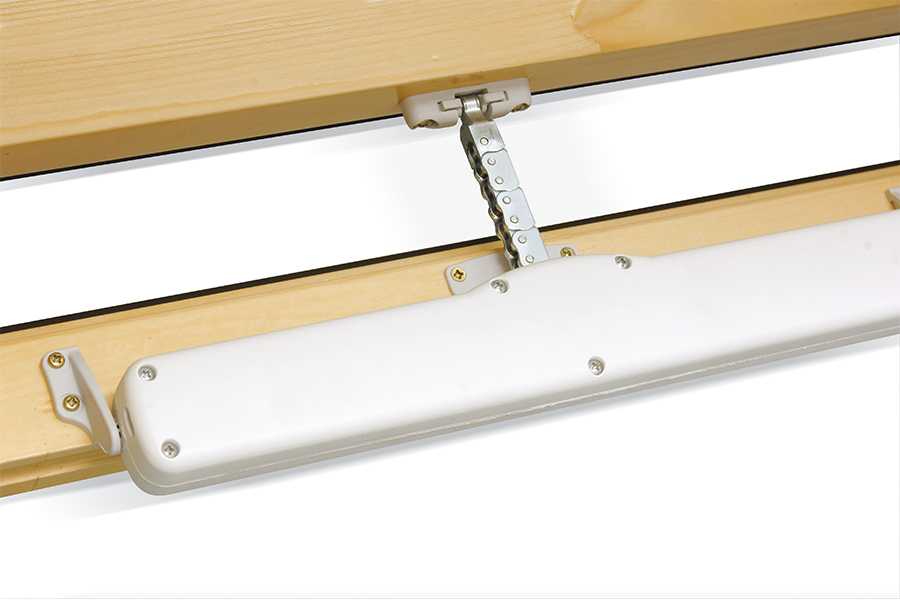

Nekos Kato close up
Nekos Kato close up
Nekos Kato close up

Description

Nekos Kato Chain Actuator

The strong points of Nekos products are recognised in all the actuators, and Kato is the mother product of the entire family. An idea fulfilled by the expertise of its inventor over the last 10 years is now used by frame manufacturers, light dome manufacturers, mansarded window manufacturers, electricians and special applications.

Brackets for quick coupling of the actuator in its working position, variable strokes that can be electronically selected, ease of hooking the chain to the frame, and the relax function are the primary characteristics that distinguish Kato and all the other actuators born after it. The actuator is compact, with a cross-section of only 37×59 cm, and the bodywork and brackets are made of high-strength composite material (glass fibre reinforced polyamide).



Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267

Brand

Nekos
Nekos

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
Product applications top & bottom hung windows

Technical Details

Model:
Kato 230V
Kato – 24V

Power voltage:
  230V
24V

Traction force:
300 N
300 N

Thrust force:
300 N
300 N

Strokes:
110 mm / 200 mm / 300 mm / 400 mm
110 mm / 200 mm / 300 mm / 400 mm

Absorbed current:
0,25 A
0,9 A

Power absorption at nominal load:
27 W
22 W

No load speed:
14,6 mm / s
14,6 mm / s

Duration of load stroke: (400 mm)
27 s
27 s

Electrical insulation:
Class III
Class III SELV

Type of service:
2 cycles
5 cycles

Operating temperature:
  – 5°C + 65°C
– 5°C + 65°C

Protection Class:
IP30
IP30

Parallel opening of 2 or more motors:
yes (max 20 actuators)
yes (max 10 actuators)




Window frame connection adjustment:
Automatic definition of position
Automatic definition of position

Syncronised function:
  no
yes (max 8)

Holding nominal force:
  1600 N (can vary according to brackets)
1600 N (can vary according to brackets)

Length of power cable:

2 m

Connection in Parallel:
  yes  (max 20)
yes  (max 10)

Signaling window open/closed:
  no
no

Stroke end:
Electronic by dip switch, by power absorption in closing
Electronic by dip switch, by power absorption in closing

Chain exit:

Central

Dimensions:
386,5 x 59 x 37 mm
386,5 x 59 x 37 mm

Weight:
0,98 kg
0,97 kg
