Ultraflex Control Systems Synchro UCS Quasar DC F-Signal

Call us for latest pricing

Enquire or Call 01702 826267 to Order

Brand: Ultraflex Control Systems | Manufacturer Part numbers: 41319L, 41320M, 41321N

This product is suitable for:

Top-hung windows
Bottom-hung windows
Skylights, roof windows
Pivot frames
Cupolas

Specifications at a glance:

Traction force: 300 N

Thrust force: 300 N

Strokes: 500 mm

Protection Class: IP 40

Voltage supply: 24v DC

Colours Available:

Black

White

SAA

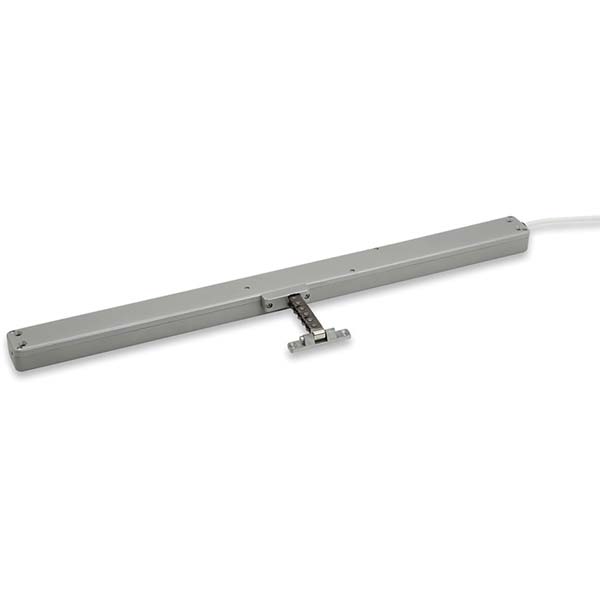

Ultraflex Control Systems Synchro Quasar DC F-Signal
MAIN FEATURES:
High performance in small die-cast aluminum casing (47 x 32 mm), powder painted.
Chain in double stainless steel links. Chain exit in central position.
Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.

SYNCHRO QUASAR DC F-SIGNAL versions are equipped with an integrated speed synchronization control board for the installation of more than one actuator on the same vent, avoiding any external control panel.

SYNCHRO QUASAR DC F-SIGNAL versions provide free potential opening and closing feedback signal (maintained contact), activated by the current limit.
Suitable for combined installation with the additional locking device E-LOCK (see related data sheet).
AC version: 1 Synchro Quasar AC + 1 Synchro Quasar DC (max 2 couples), DC version: max 4 Synchro Quasar DC.

OTHER VERSIONS UPON REQUEST:
SYNCHRO QUASAR DC F-SIGNAL versions with IP42 protection class, for a higher resistance against atmospheric agents.
RAL colour and chain length can be customised.
