Ultraflex Control Systems UCS E-LOCK F-Signal

Call us for latest pricing

Brand: Ultraflex Control Systems | Manufacturer Part numbers: 41889W

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Pivot frames
  • Cupolas
Specifications at a glance:

Traction force: 600 N

Thrust force: 600 N

Strokes: 19 – 38 MM

Protection Class: IP 32

Voltage supply: 24V DC

Colours Available:

Available in Silver Anodised

SAA

Product Information

Description

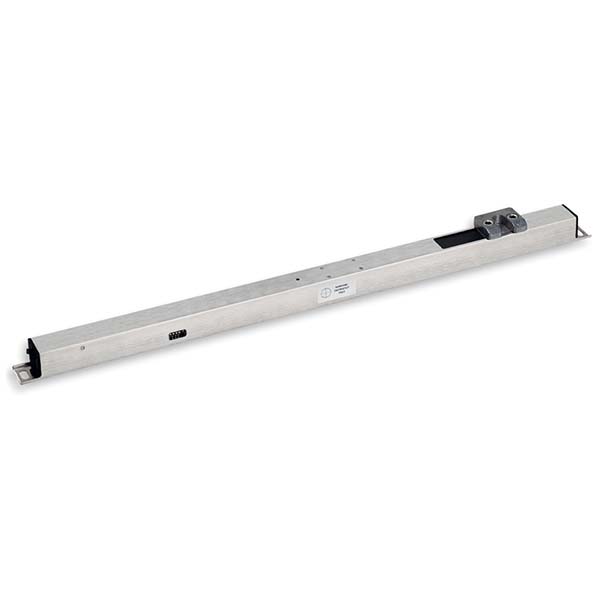

Ultraflex Control Systems E-LOCK F-Signal

MAIN FEATURES:
E-LOCK is a linear drive designed to lock the window hardware and ensure, in combination with a chain actuator, the best window closing tightness.
E-LOCK can be integrated into the window profile or on the profile, connected to the window hardware through a slot.
It has been designed to be used in combination with electric chain actuators series QUASAR, VEGA and NANO 24 Vdc.

> Stainless steel case.
> The locking plate can be mounted on both side of the drive.
> Provided with an emergency unlocking mechanism.
> Different strokes and directions can be selected by internal switches.
> Available a version to be used with BMSline actuators for the direct connection to a Building Management System network.

• Available on request E-LOCK F-SIGNAL version that provides lock/unlock feedback signal.
• It is possible to install two E-LOCK drives (in F-SIGNAL version) on one window.

Additional information

Manufacturer

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS Supermaster E-LOCK F-Signal
Voltage Supply:

24 VDC +/-10%
Current Absorption (Max load):

0,3 A
Max Force:

600 N
Available Stroke:

19 – 38 MM
Speed:

1,6 MM/S
Limit Stop:

HALL SENSOR
Safety Stop:

ELECTRONIC
Protection Class:

IP 32
Parallel Connection:

 Yes
Operation:

 POLARITY INVERSION
Brackets:

 INCLUDED
Feedback:

 YES, FREE POTENTIAL

Download PDF's

Ultraflex Control Systems UCS Supermaster E-LOCK F-Signal data sheet

Ultraflex Control Systems UCS Supermaster E-LOCK F-Signal Manual
