Ultraflex Control Systems UCS Quasar L AC

Call us for latest pricing

Brand: Ultraflex Control Systems | Manufacturer Part numbers: 41052C, 41053E, 41054G, 41055J, 41056L, 41057N, 41058R, 41059T, 41060B

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Pivot frames
  • Cupolas
Specifications at a glance:

Traction force: 300 N

Thrust force: 300 N

Strokes: 600 / 750 / 1000 MM

Protection Class: IP 40

Voltage Supply: 110v AC 240v AC

Colours Available:

Available in black

Black

Available in white

White

Available in Silver Anodised

SAA

Product Information

Description

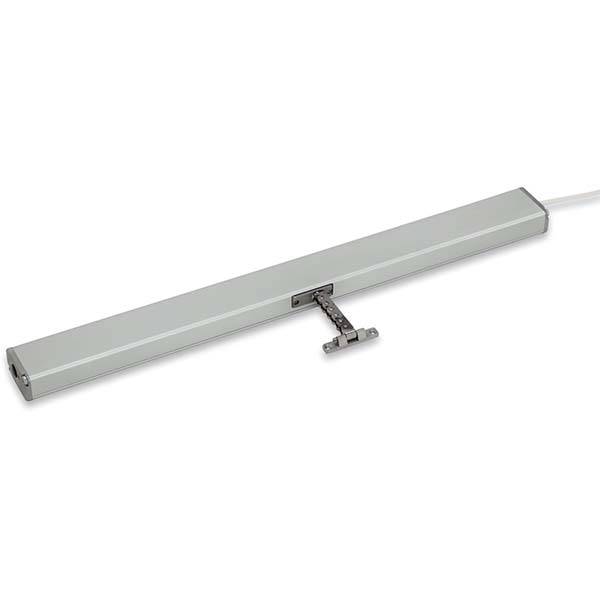

Ultraflex Control Systems Quasar L AC
MAIN FEATURES:
Available 3 different strokes: 600 mm – 750 mm – 1000 mm.
Chain in double stainless steel links.
Anodised (silver) or painted (white or black) aluminium casing.

Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.

Easy replacement of the cable in case a different / longer cable or a different colour is required; upon request it is possible to supply actuators with cable exit by the opposite side.
QUASAR L AC is provided with 3 m cable (no synchronization, feedback signal and speed selection).

OTHER VERSIONS UPON REQUEST:
SYNCHRO QUASAR L DC versions with IP42 protection class, for a higher resistance against atmospheric agents.
RAL colour and chain length can be customised.

Additional information

Manufacturer

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS Quasar L AC
Voltage Supply:

110 V AC – 240 V AC
Current Absorbtion (Max load):

0,4 A – 0,2 A
Operation:

THREE WIRES (OPEN, CLOSE, COM)
Max Force:

300 N
Available stroke:

600 / 750 / 1000 MM
Speed:

15 MM/S
Duty Cycle:

50%
Limit Stop:

ELECTRONIC
Safety Stop:

ELECTRONIC
Parallel Connection:

YES
PROTECTION CLASS:

 IP40
Cable:

 3 M – 3 WIRES + EARTH
Locking force:

 3500 N

Download PDF's

Ultraflex Control Systems UCS Quasar L AC data sheet

Ultraflex Control Systems UCS Quasar L AC dimensions

Ultraflex Control Systems UCS Quasar L AC manual
