Ultraflex Control Systems SYNCHRO NANO DC

Product Information

Description

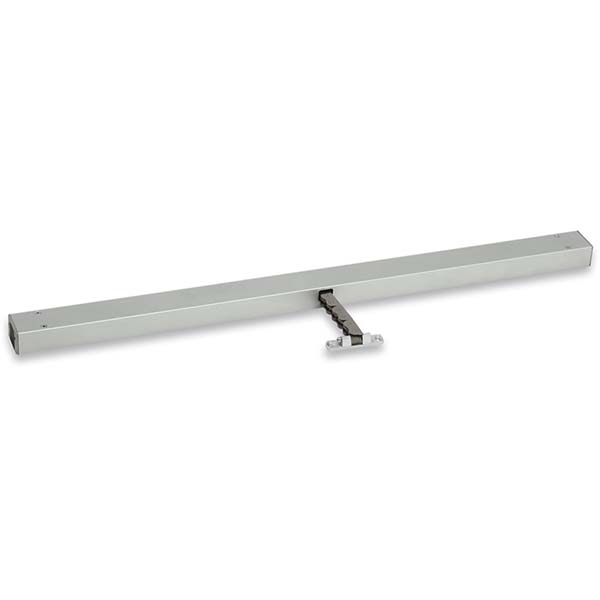

Ultraflex Control Systems SYNCHRO NANO DC
MAIN FEATURES:
The highest performance (400 N) in the smallest case (24 x 35 mm). Very silent operation. Chain in double stainless steel links. Aluminum extrusion case. Electronic stop in the intermediate positions in case of overload. Soft stop in close and fully open position. Reduction of entrapment risk: stop and reverse action in case of obstacle detected outside the Soft Stop zone.

SYNCHRO NANO DC versions are equipped with an integrated speed synchronization control board for the installation of more than one actuator on the same vent, avoiding any external control panel (max 4 actuators + E-Lock).

SYNCHRO NANO DC versions provide also open/close feedback.
Cable connection on both sides

Additional information

Manufacturer	UCS

Brand

Ultraflex Control Systems

Product Applications

This product is suitable for:

Top-hung windows
Bottom-hung windows
Pivoting frame windows
Roof windows
Cupolas

Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS Synchro Nano

Voltage Supply:

24 VDC +/-15%

Current Absorption (Max load):

1,2 A

Operation:

POLARITY INVERSION

Max Force:

400 N

Available stroke (programmable):

200 / 300 / 400 / 500 / 600 / 800 MM

Speed:

4 – 14 MM/S

Duty Cycle:

30 %

Limit Stop:

ELECTRONIC

Safety Stop:

ELECTRONIC

Parallel Connection:

YES

PROTECTION CLASS:

IP40

Synchro:

YES

Feedback:

YES
