Product Information

Description

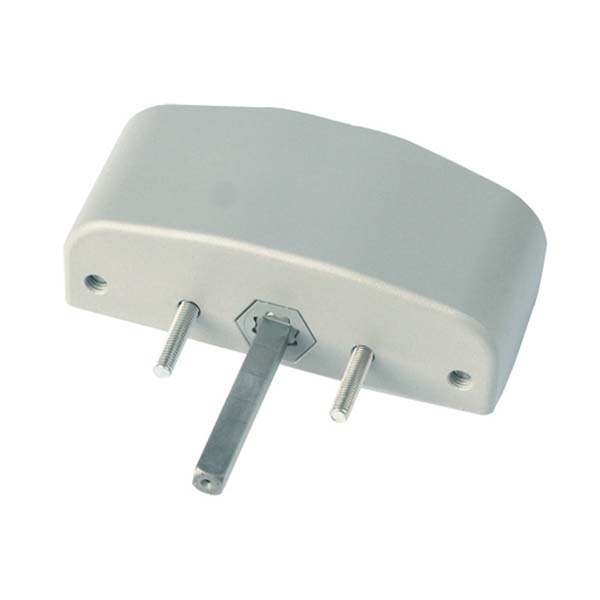

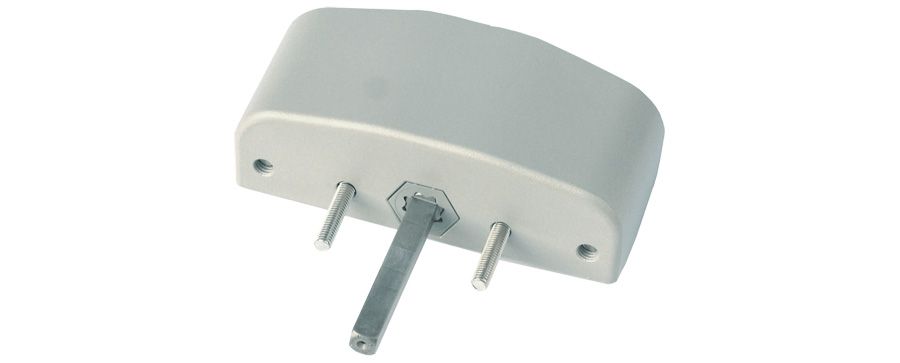

Ultraflex Control Systems PLUSULTRA Left
MAIN FEATURES:
PlusUltra is an easy inexpensive solution for the automation of windows with multiple locking points, avoiding the installation of additional electric actuators (or electronic locks).
It is suitable for outward opening windows.

• PlusUltra has to be installed together with chain actuators series QUASAR and VEGA. A version for manual opening mechanism is also available.
• The force to release the locking points (before opening) and engage them again (after complete closing) is supplied by the chain of the electric actuator during the first part of its travel.
• The transmission of the movement is provided by 90° rotation of the standard pin for internal gear (7×7 mm) included in PlusUltra. The gearbox integrated in the profile operates the bars of the multiple locking hardware.
• PlusUltra provides max torque of 0.34 Nm, usually suitable for operation of max 4 locking points
• According to the actuator to which it is connected, different fixing systems are necessary.

PLUSULTRA LEFT for gearbox with clockwise closing rotation

Additional information

Manufacturer

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Download PDF's

Ultraflex Control Systems UCS PlusUltra Left data sheet

Ultraflex Control Systems UCS PlusUltra Left Dimensions
