Product Information

Description

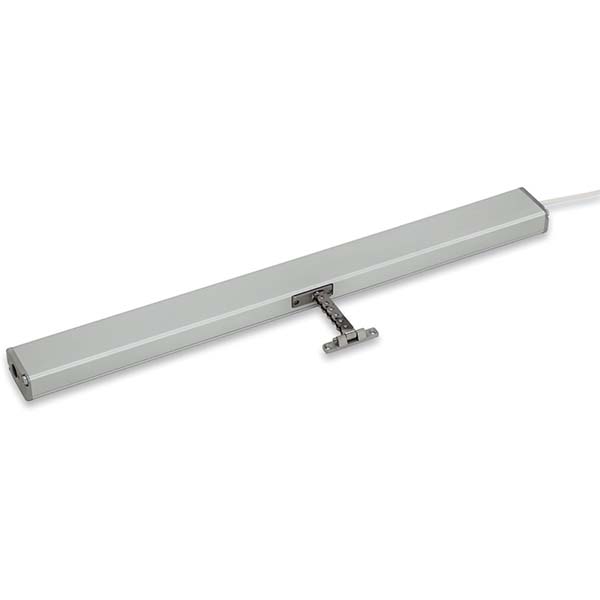

Ultraflex Control Systems Synchro Quasar L AC
MAIN FEATURES:
Available 3 different strokes: 600 mm – 750 mm – 1000 mm.
Chain in double stainless steel links.
Anodized (silver) or painted (white or black) aluminum casing.

Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.

Easy replacement of the cable in case a different / longer cable or a different colour is required; upon request it is possible to supply actuators with cable exit by the opposite side.

SYNCHRO QUASAR L AC versions are equipped with an integrated speed synchronization control board for the installation of more than one actuator on the same vent, avoiding any external control panel.
AC version: 1 Synchro Quasar AC + 1 Synchro Quasar DC (max 2 couples).

OTHER VERSIONS UPON REQUEST:
SYNCHRO QUASAR L DC versions with IP42 protection class, for a higher resistance against atmospheric agents.
RAL colour and chain length can be customised.

Additional information

Stroke (mm)

500

Max Force (N)

300

Supply Voltage

230Vac

Max Current (amps)

0.20

Max Speed (mm/s)

15.00

Locking Force (N)

3000

Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating

IP40

Manufacturer

Colour/Finish

Black (RAL 9005), Grey (RAL 9006), White (RAL 9010)

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS Quasar L AC
Voltage Supply:

110 V AC – 240 V AC
Current Absorbtion (Max load):

0,4 A – 0,2 A
Operation:

THREE WIRES (OPEN, CLOSE, COM)
Max Force:

300 N
Available stroke:

600 / 750 / 1000 MM
Speed:

15 MM/S
Duty Cycle:

50%
Limit Stop:

ELECTRONIC
Safety Stop:

ELECTRONIC
Parallel Connection:

YES
PROTECTION CLASS:

 IP40
Cable:

 2 X 3 M – 3 WIRES + EARTH AND 5 WIRES
Locking force:

 3500 N
Symchro:

 YES

Download PDF's

Ultraflex Control Systems UCS Synchro Quasar L AC data sheet

Ultraflex Control Systems UCS Synchro Quasar L AC dimensions

Ultraflex Control Systems UCS Synchro Quasar L AC manual
