Nekos K-Lock

Call us for latest pricing

Brand: Nekos | Manufacturer Part numbers: K-Lock

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Pivot frames
  • Cupolas
Specifications at a glance:

Traction force: 600 – 850 N (starting force)

Thrust force: 600 – 850 N (starting force)

Strokes: 18 mm / 36 mm

Protection Class: IP 40

Voltage supply: 24v DC

Colours Available:

Available in Silver Anodised

SAA

Nekos K-Lock
The Nekos K-LOCK is the consequence of Nekos renewed technology in automatic window, curtain walls and doors blocking: a high-performances electromechanical block, provided with integrated electronic control for the opening/closing sequence. The Nekos K-Lock is intended to be recessed mounted into many aluminium, PVC and wooden profile and into all kind of windows.

Brand

Nekos
Nekos

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

K-Lock 24V
Power voltage:

24V
Traction force:
starting force
600 – 850 N
Thrust force:
starting force
600 – 850 N
Strokes:

18 mm / 26 mm
Absorbed current:

0,85 A
Power absorption at nominal load:

20 W
No load speed:

5 mm / s
Length of power cable:

2 m
Electrical insulation:

Class III
Type of service:

5 cycles
Operating temperature:

– 20°C + 70°C
Protection Class:
IP32
IP40



Stroke end:
Electronic by dip switch, Electronic in closing

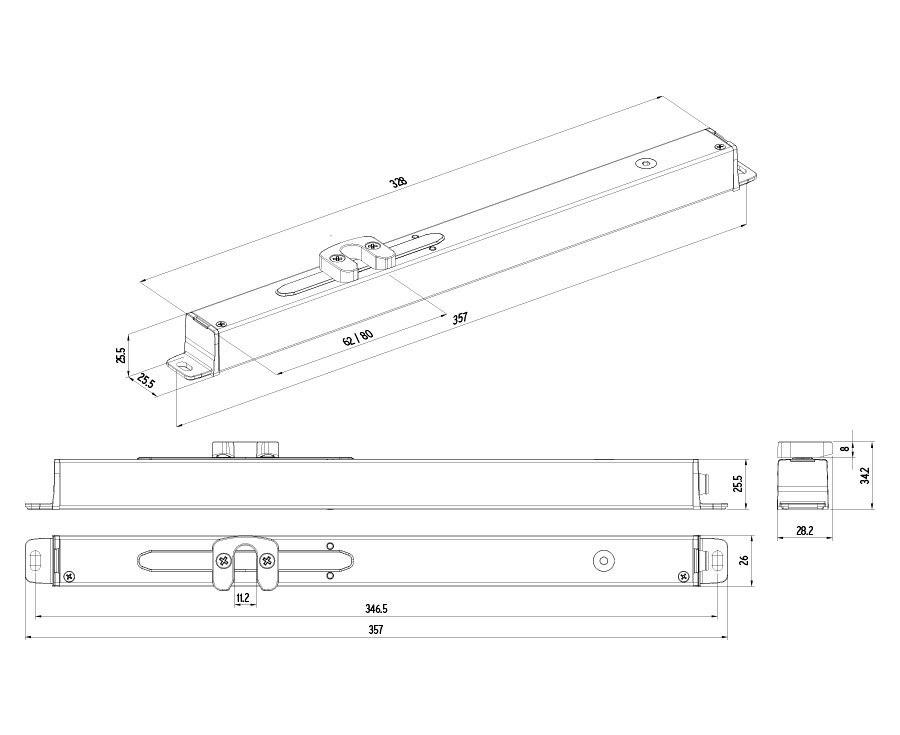

Dimensions:

25,5 x 25,5 x 357 mm
Weight:

0,56 kg

Download PDF's

Nekos K-Lock instructions

Nekos K-Lock data
