Product Information

Description

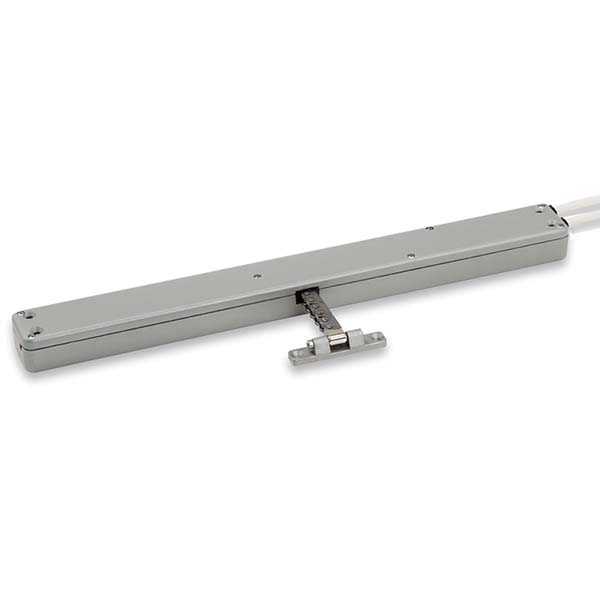

Ultraflex Control Systems VEGA DC
MAIN FEATURES:
High performance in small die-cast aluminum casing (45 x 32 mm), powder painted.
Chain in double stainless steel links. Chain exit in central position.
Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.

VEGA DC is provided with 1,5 m cable (no synchronization, feedback signal and speed selection). Suitable for combined installation with the additional locking device E-LOCK or PLUSULTRA (see related data sheet).

Additional information

Stroke (mm)

300

Max Force (N)

300

Supply Voltage

24Vdc

Max Current (amps)

0.70

Max Speed (mm/s)

9.00

Locking Force (N)

3000

Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating

IP30

Manufacturer

Colour/Finish

Black (RAL 9005), Grey (RAL 9006), White (RAL 9010)

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS VEGA DC
Voltage Supply:

24 VDC +/-10%
Current Absorbtion (Max load):

0,7 A
Operation:

POLARITY INVERSION
Max Force:

300 N
Available stroke:

300 MM
Speed:

9 MM/S
Duty Cycle:

50%
Limit Stop:

ELECTRONIC
Safety Stop:

ELECTRONIC
Parallel Connection:

YES
PROTECTION CLASS:

 IP30
Cable:

1,5 M – 2 WIRES

Download PDF's

Ultraflex Control Systems UCS VEGA DC data sheet

Ultraflex Control Systems UCS VEGA DC instructions
