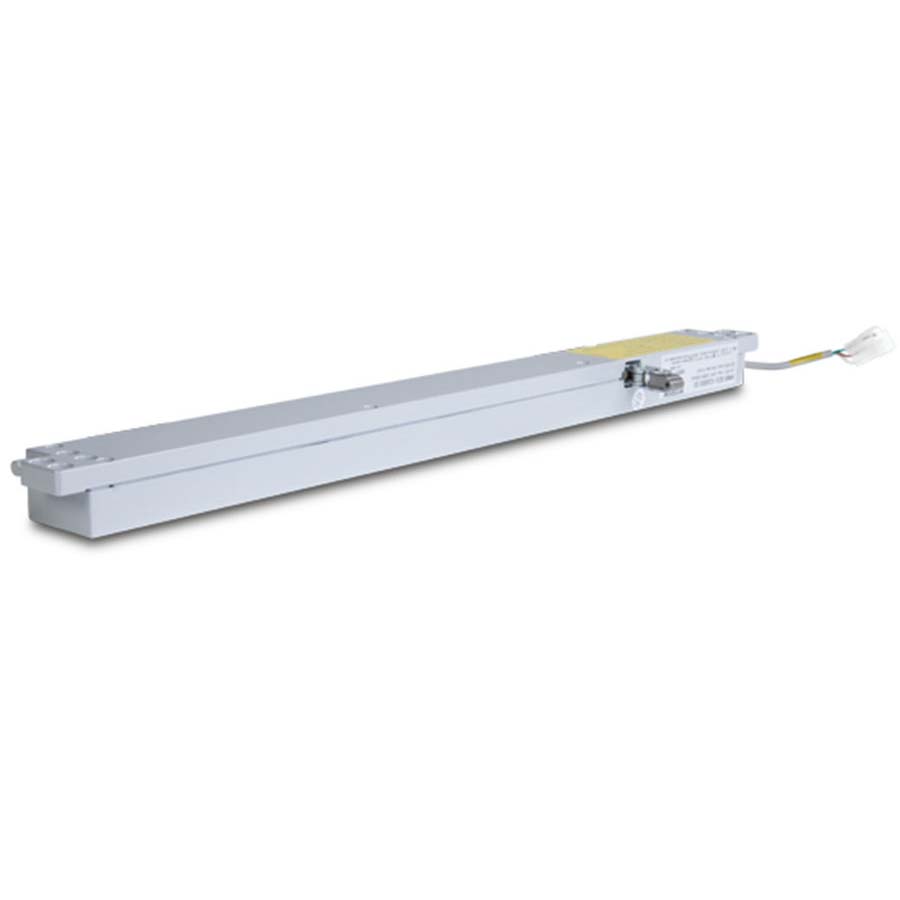

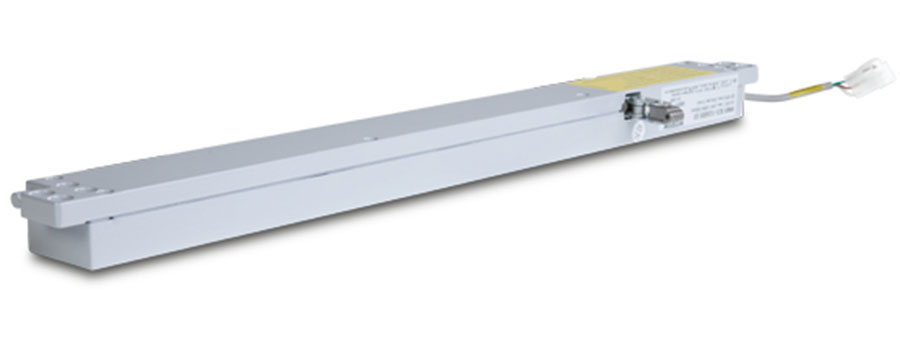

Window Master WMX 523
Chain actuator
- Chain actuator for concealed installation.
- For smoke and comfort ventilation.
- For top hung, bottom hung and turning windows.
- Not appropriate for roof windows.
24V Nominal voltage
The product is to be connected to a ±24V power supply
Smoke ventilation
The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat
MotorLink®
The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster
UL certified
The product is UL certified according to UL325 for US and CSA C22.2 no.247-14 for Canada
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
Programmable 24V DC chain actuator for concealed installation for smoke and comfort ventilation.
– to be used together with ±24V control units or control units with MotorLink®
– can be used together with espagnolette WMB
– external safety edge can be connected directly to the actuator (actuator version ’E’)
– available with and without UL certification:
– Europe: order without UL certification (version 0)
– USA / Canada: order with UL certification (version U)
– synchronisation of up to four window actuators – no need for an external synchronisation module
– genuine position feedback and three speeds when using control unit with MotorLink®
– soft close
– the electronics in this actuator can be programmed to suit specific requirements
– i.e. pressure- and traction force, stroke, speed/sound level – with the WAT 100 programming box, also possible following installation
– built-in electronic load switch-off/end stop
– electronic actuator with micro controller
– the actuator has an integrated reverse function to ensure a prolonged life span of the window gaskets
– easy mounting
Additional information
Stroke (mm) | Programmable, 50 – 500 |
---|---|
Max Force (N) | 400 |
Supply Voltage | 24Vdc |
Max Current (amps) | 0.50 |
Max Speed (mm/s) | 9.50 |
Locking Force (N) | 3000 |
Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
IP Rating | IP20 |
Manufacturer | |
Colour/Finish | Aluminium (RAL 9006) |
Brand
Window Master
