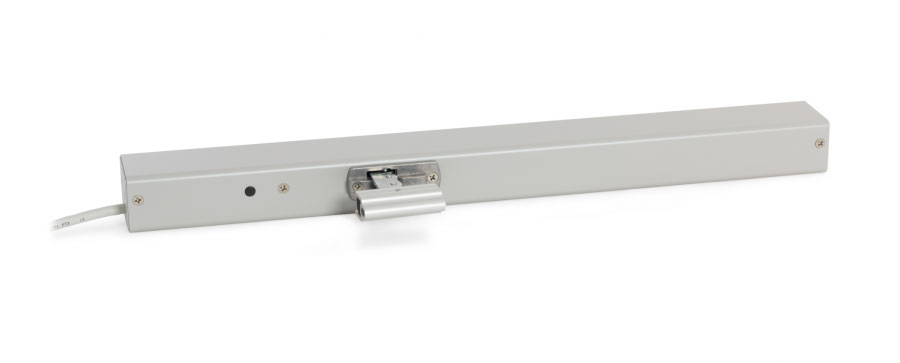

D+H KA 54
KA 34’s big brother: Just as robust and reliable but the D+H KA 54 SHEV chain drive is significantly more powerful with 500 N. Exceptionally flexible and universally applicable. For mounted installation.
Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
With motor electronics controlled via microprocessor
High‑speed function (HS) for especially fast opening windows in case of fire (SHEV)
Special chain stabilisation

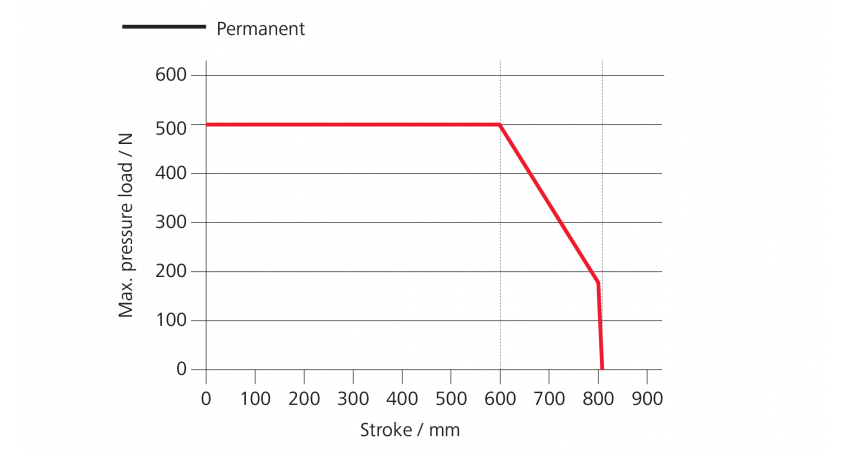

Pressure applications up to 600 mm, application tension stroke lengths >1000 mm possible
Relief of pressure on window gasket after closing process
Programmable drive functions and different drive parameters
D+H KA 54 Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)
Additional information
| Stroke (mm) | 350 |
|---|---|
| Max Force (N) | 500 |
| Supply Voltage | 24Vdc |
| Max Current (amps) | 1.40 |
| Max Speed (mm/s) | 13.30 |
| Locking Force (N) | 2600 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP32 |
| Manufacturer | |
| Colour/Finish | White Aluminium (RAL 9006) |
