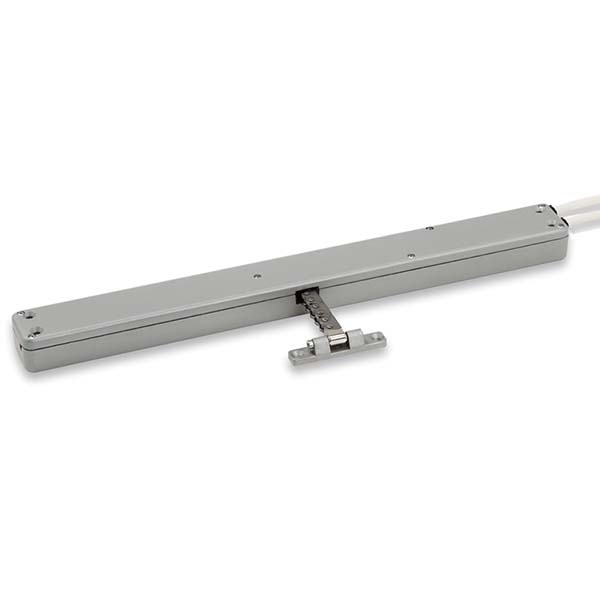

Ultraflex Control Systems VEGA AC
MAIN FEATURES:
High performance in small die-cast aluminum casing (45 x 32 mm), powder painted.
Chain in double stainless steel links. Chain exit in central position.
Quick and easy installation: the manual closing position regulation is not required.
The stop in closing position is regulated by an electronic limit switch control.
Electronic stop in the intermediate positions in case of overload.
VEGA AC (no synchronization, feedback signal and speed selection).
Additional information
| Stroke (mm) | 300 |
|---|---|
| Max Force (N) | 300 |
| Supply Voltage | 230Vac |
| Max Current (amps) | 0.15 |
| Max Speed (mm/s) | 9.00 |
| Locking Force (N) | 3000 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP30 |
| Manufacturer | |
| Colour/Finish | Black (RAL 9005), Grey (RAL 9006), White (RAL 9010) |
Brand
Ultraflex Control Systems
Product Applications
|
This product is suitable for:
 |
Technical Details
Model:
UCS Vega AC
Voltage Supply:
110 VAC – 240 VAC
Current Absorbtion (Max load):
0,3 A – 0,15 A
Operation:
THREE WIRES (OPEN, CLOSE, COM)
Max Force:
300 N
Available stroke:
300 MM
Speed:
7 MM/S
Duty Cycle:
50%
Limit Stop:
ELECTRONIC
Safety Stop:
ELECTRONIC
Parallel Connection:
YES
PROTECTION CLASS:
IP30
Cable:
2 X 3M – 5 AND 3 WIRES
