Description

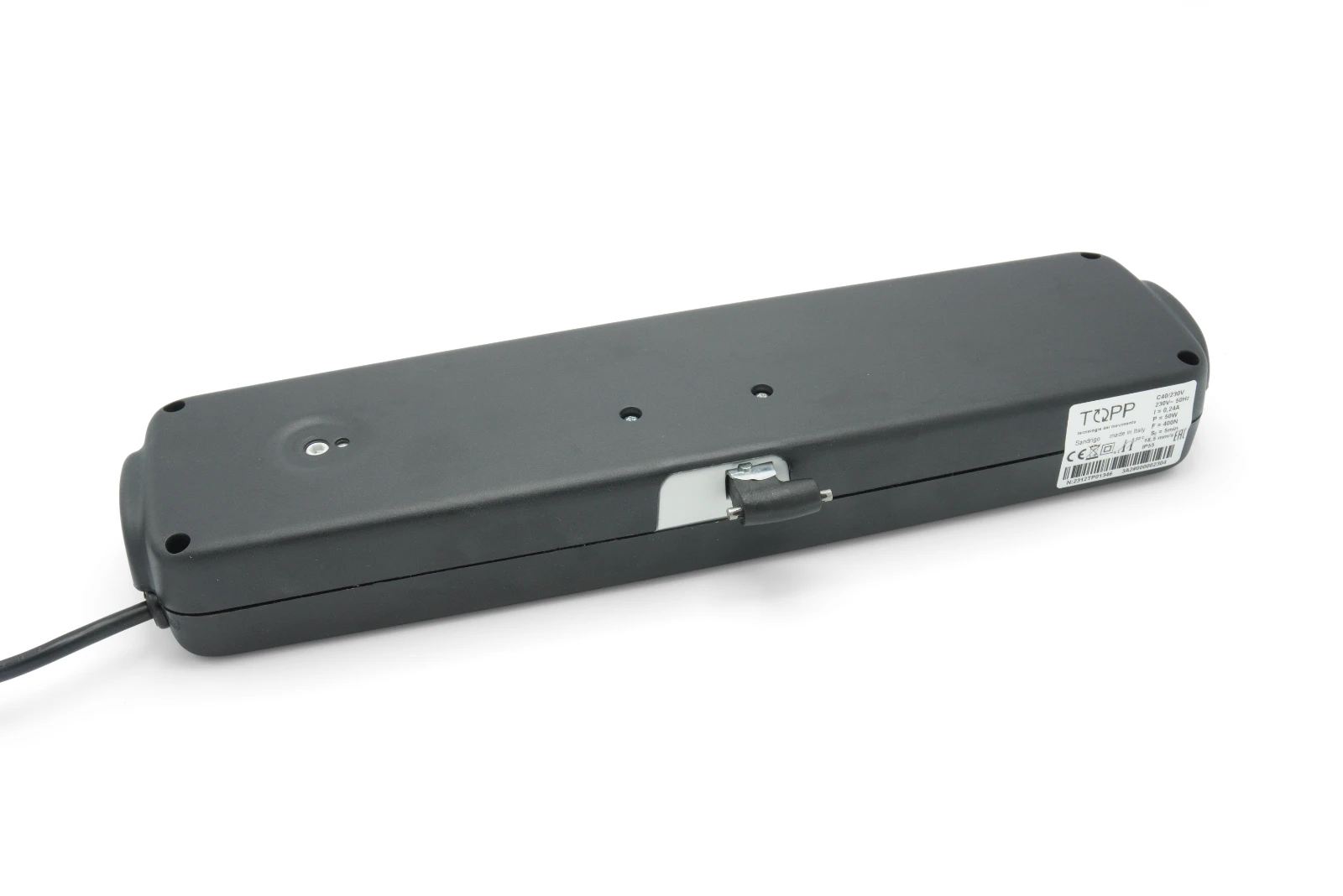

Topp C40 Chain Actuator
Electric C40 actuator with double link articulated chain, enclosed in a special casing, with different mounting accessories for top and bottom hung windows. Operation at 230V 50Hz or, as an alternative, at 24V DC. Maximum applicable load 400N. Fast hooking and unhooking system of the chain to the window. Max. stroke 500mm, end of stroke adjustable at 100, 150, 200, 205, 300, 350, 400 mm by an external knob located on both sides of the actuator. Electronic device with acoustic warning to signal erroneous installation to the user. Electronic traction control speed reduction, during the last 100mm of closing action. High protection IP 55 rated.
Upon request, a preset S version for the synchronous operation of more actuators on the same window is available.
CE marked device.
Additional information
| Stroke (mm) | Selectable, 100, 150, 200, 250, 300, 400, 500 |
|---|---|
| Max Force (N) | 400 |
| Supply Voltage | 230Vac |
| Max Current (amps) | 0.24 |
| Max Speed (mm/s) | 18.50 |
| Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
| IP Rating | IP55 |
| Manufacturer | |
| Colour/Finish | Black, Grey, White |
| Application | Natural Ventilation |
TOPP Chain actuator C40 details
