Thrust force 300 N – Max. stroke 380 mm

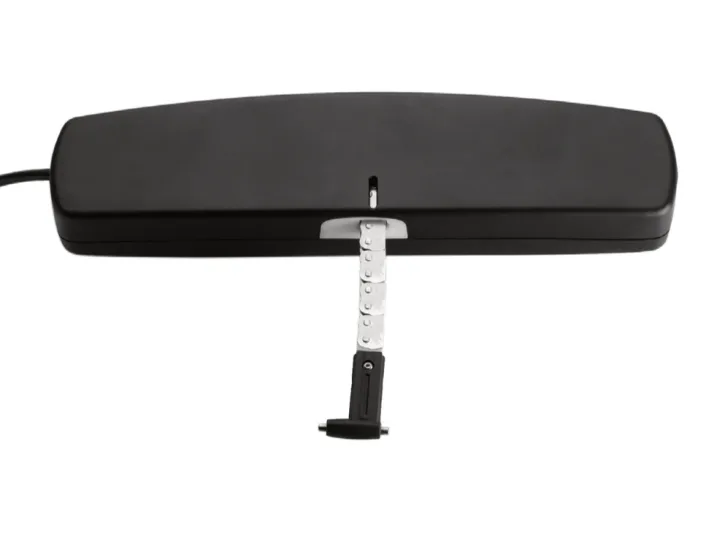

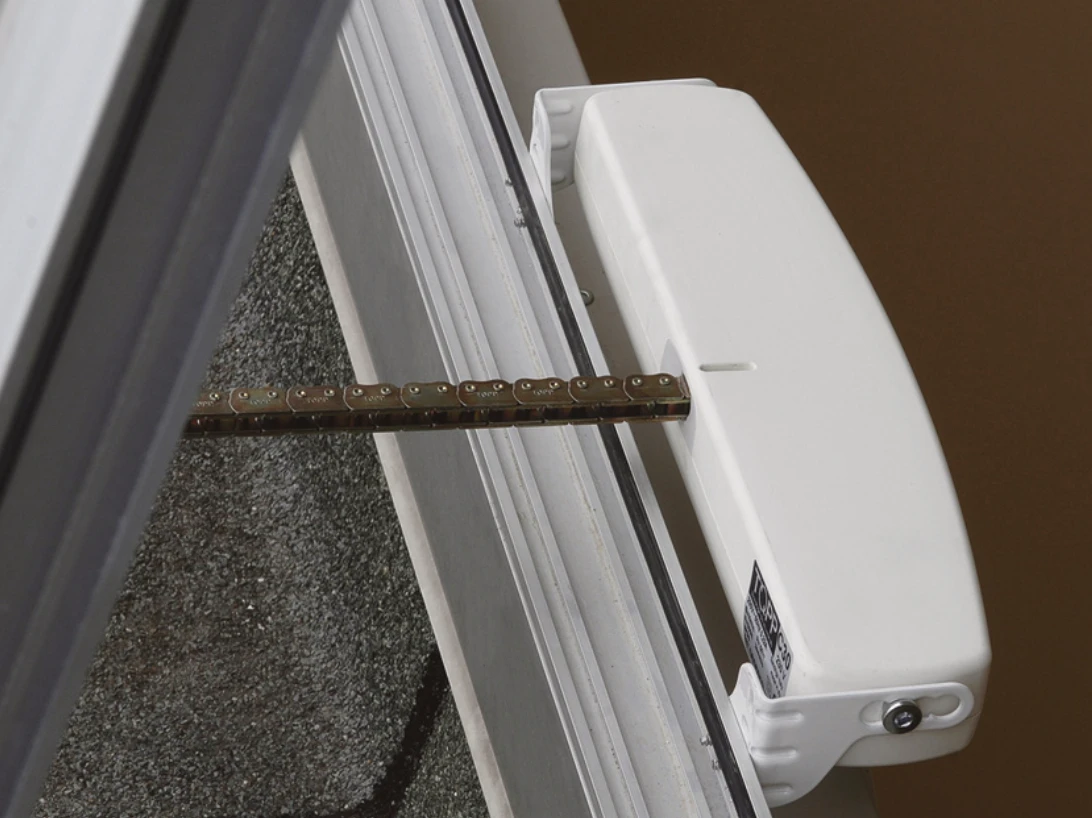

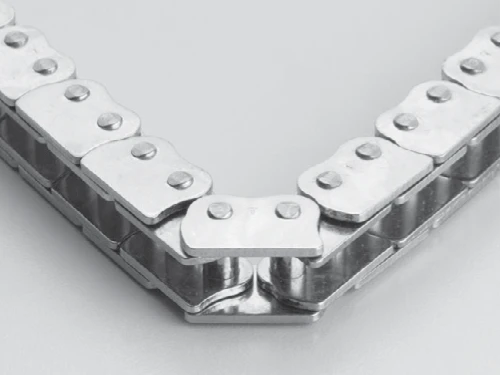

Electric C30 actuator with double link articulated chain, enclosed in a special casing, with different mounting accessories for top and bottom hung windows. Operation at 230V 50Hz or, as an alternative, at 24V DC. Maximum applicable load 300N. Fast hooking and unhooking system of the chain to the window. Adjustment of the stroke at 200 or 380mm by an external knob. Electronic device with acoustic warning to signal erroneous installation to the user.
Upon request, a preset S version for the synchronous operation of more actuators on the same window is available.
CE marked device.

Additional information

Stroke (mm)

Selectable, 200, 380

Max Force (N)


Supply Voltage


Max Current (amps)


Max Speed (mm/s)


Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating




Black, Grey, White

Download PDF's

TOPP Chain actuator C30 instructions
TOPP Chain actuator C30 pdf details
TOPP Chain actuator C30S instructions
TOPP Chain actuator C30R instructions

Watch Installation Videos

Topp C30 Chain Actuator Installation Guide
