Project Overview

Savannah Heights Benfleet external view

Savannah Heights, a new development situated in the heart of Benfleet, Essex, comprises 30 luxury flats with 1 and 2-bedroom layouts.

In collaboration with the project’s electrical contractor, we supplied a comprehensive building-wide smoke vent system that covers both the main stairwells through the roof and the adjacent lobby areas through an internal smoke shaft all being triggered by the buildings fire alarm system.

We diligently ensured that all specified components aligned with the building’s fire strategy and met the free vent area requirements outlined in Approved Document B.

Installed Equipment

Product Name Description
2x Flat Roof Hatch Stairwell AOV EN 12101-2 Certified hatch with triple skin clear polycarbonate
1x Flat Roof Shaft Aluminium Bladed Louvre EN 12101-2 Certified louvre for use at the head of the smoke shaft
3x WindowMaster WMD 820 Door Chain Actuators
1x WSC 520 0ISS Multi Zone AOV Control Panel EN 12101-10 Certified Multi Zone Programmable AOV Control Panel (battery backup included)
1x WSC 104 Single Zone AOV Control Panel EN12101-10 Certified Single Zone AOV Control Panel (battery backup included)
7x WSK 501 Call Points Break glass units with monitoring and reset functionality

Installation Photos

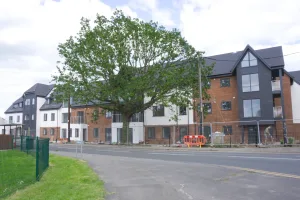

Savannah Heights Benfleet external view 1
Smoke Vent Roof Hatch from Head of Stairwell 1

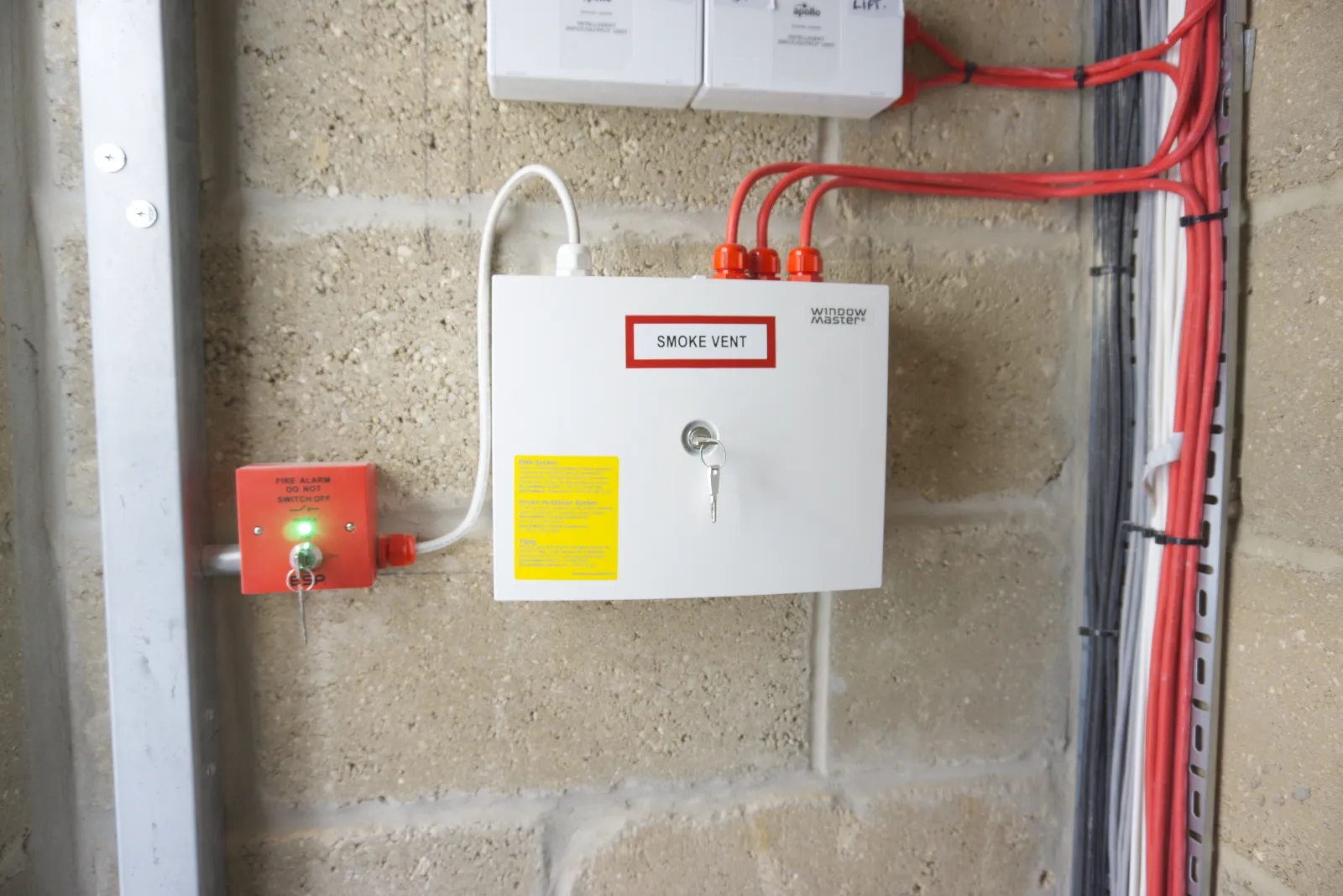

WSC 104 panel installed in a riser

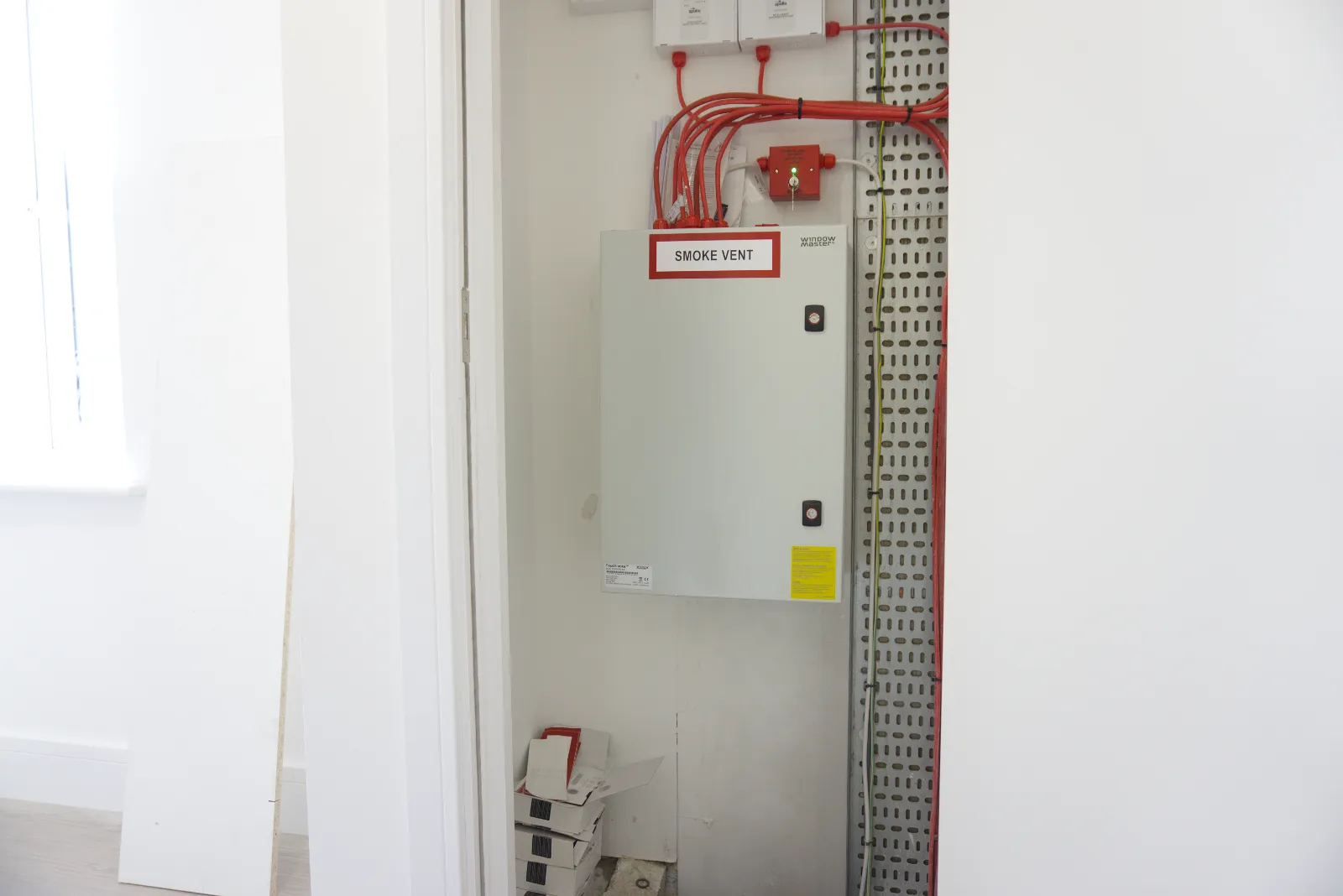

WSC 5xx series panel installed in a riser

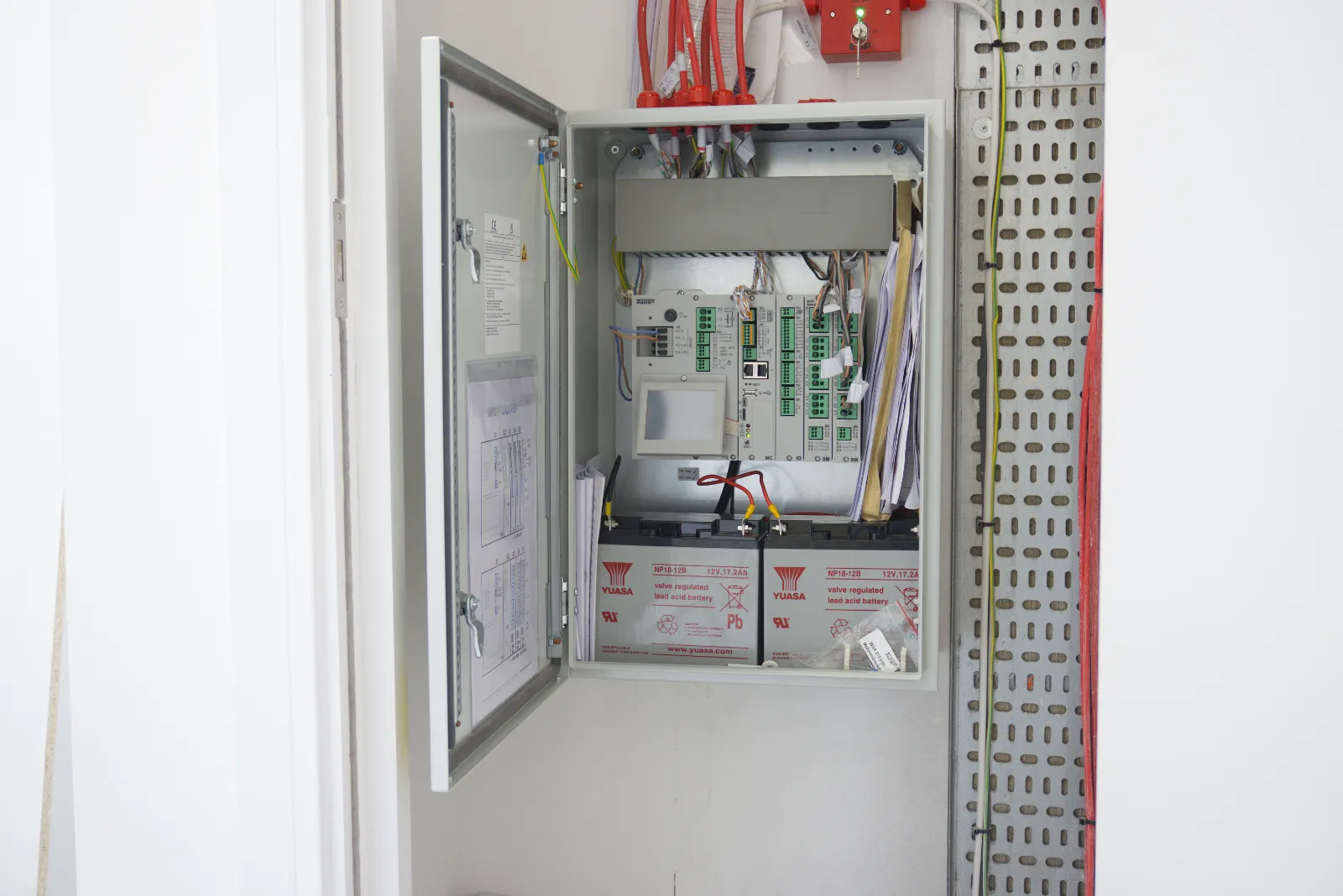

WSC 5xx series panel installed in riser with door open

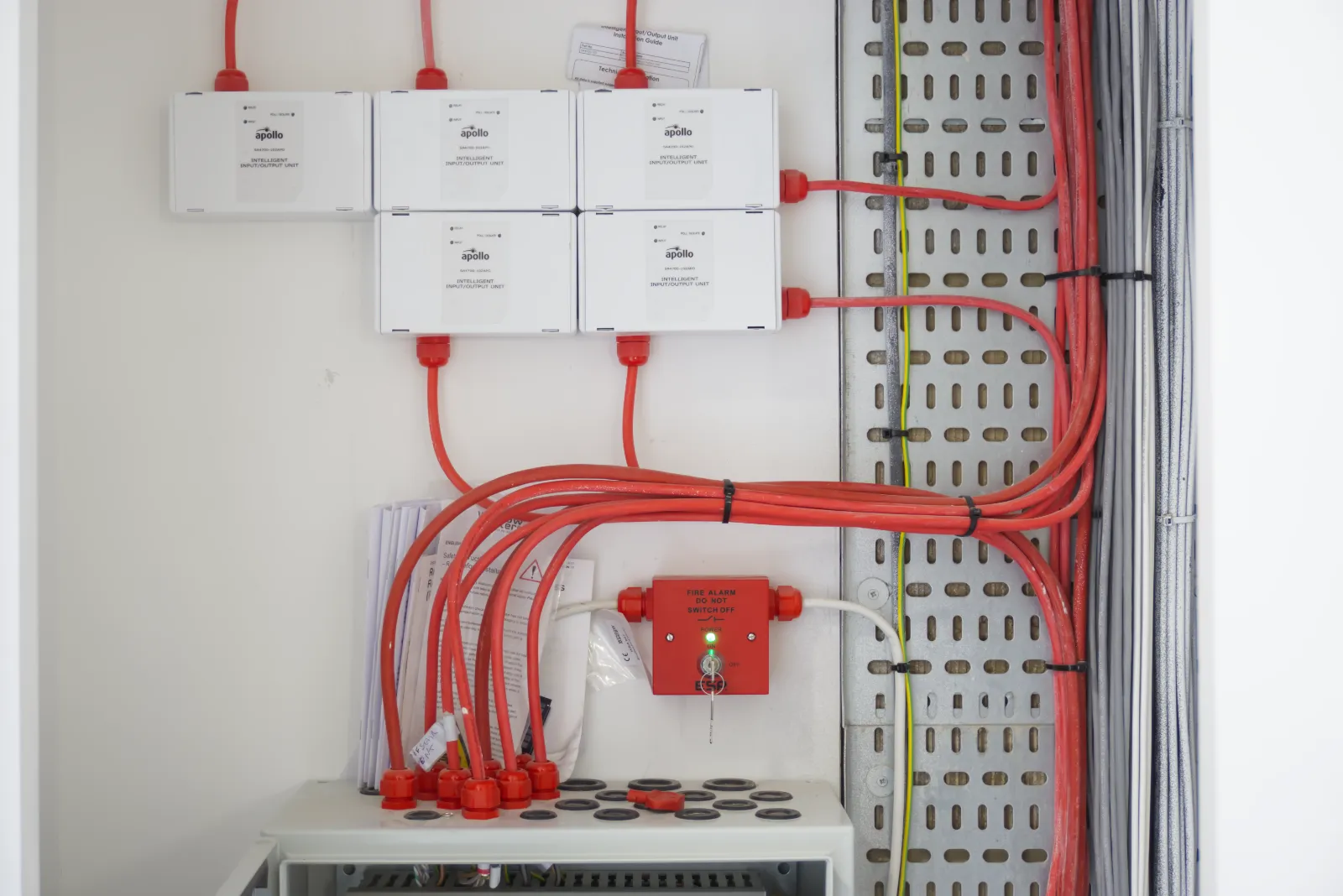

Apollo fire alarm IO modules with wiring installed in riser
WSC 5xx series panel installed with display active

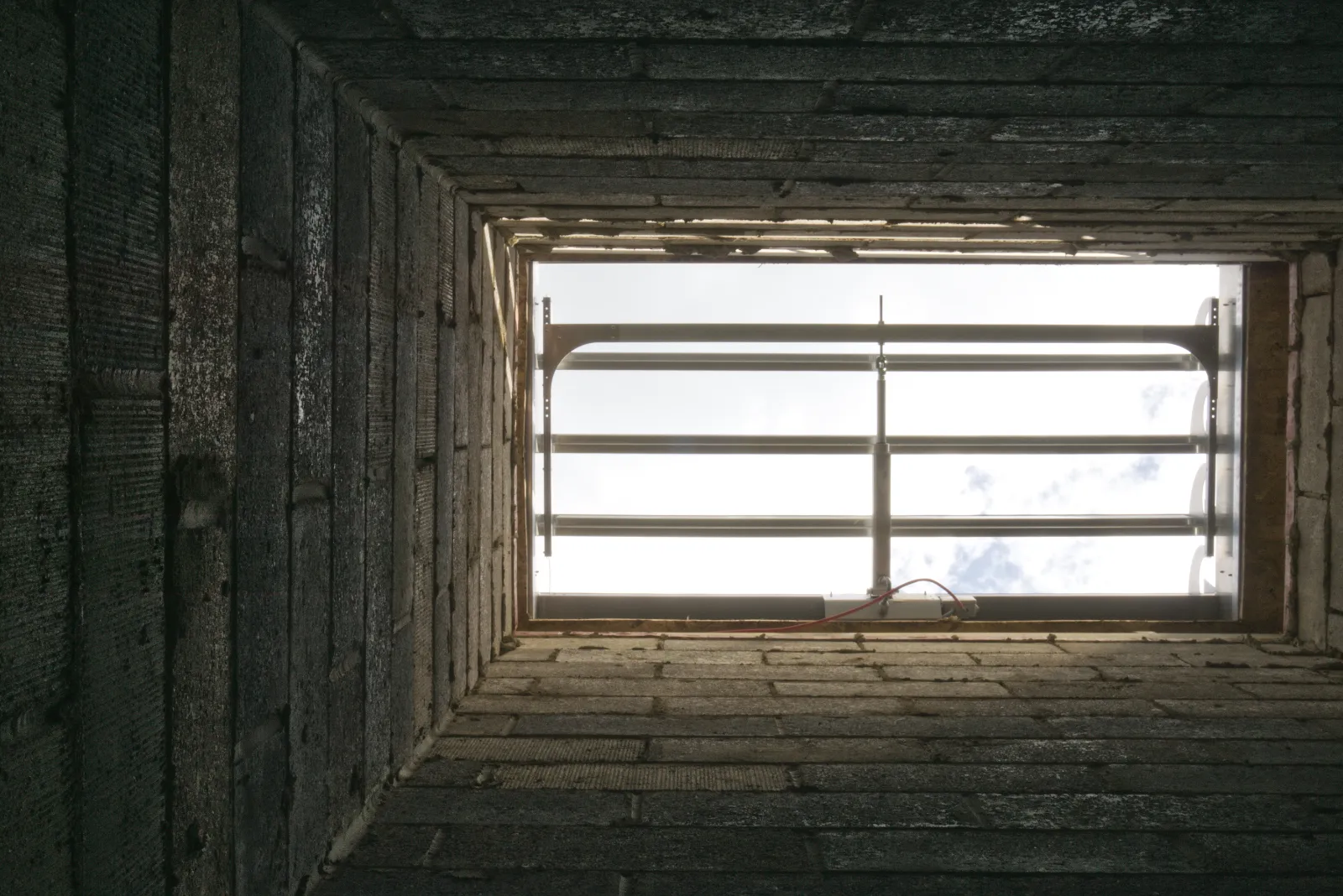

Open Aluminium Flat Roof Louvre viewed from inside smoke shaft

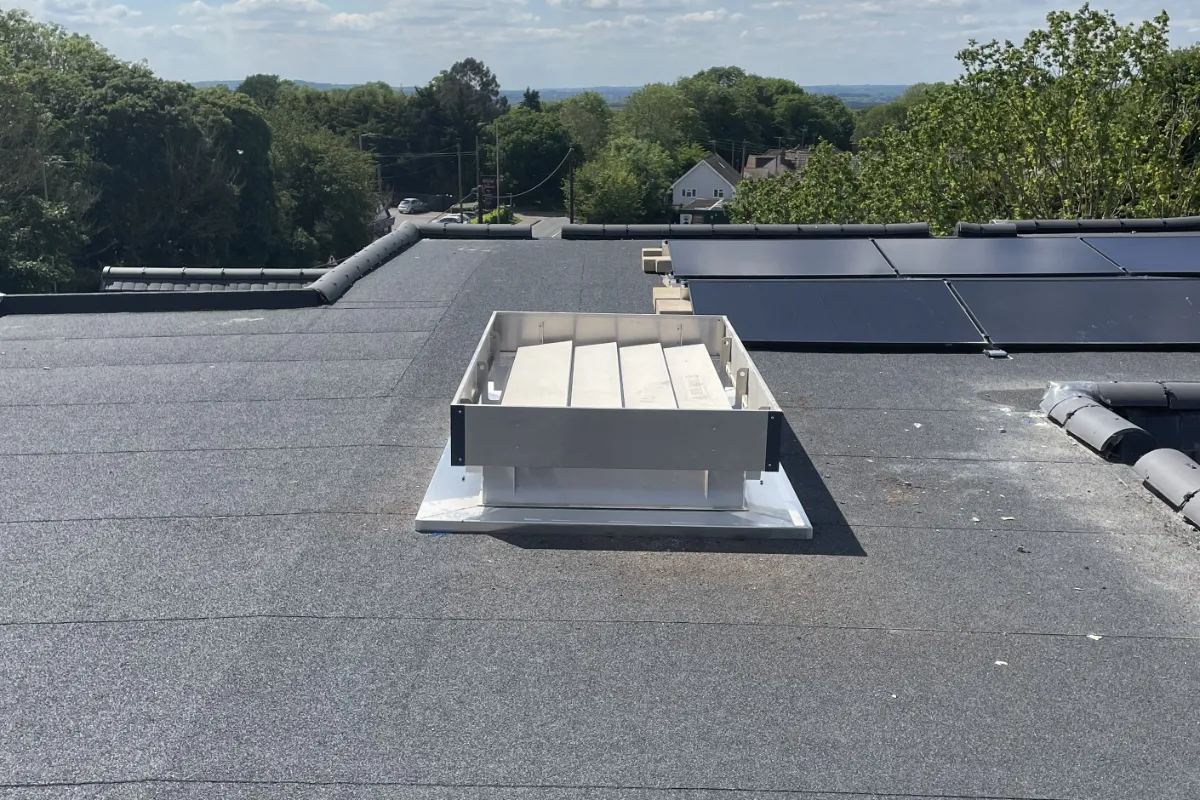

Aluminimum AOV Roof Louvre from outside

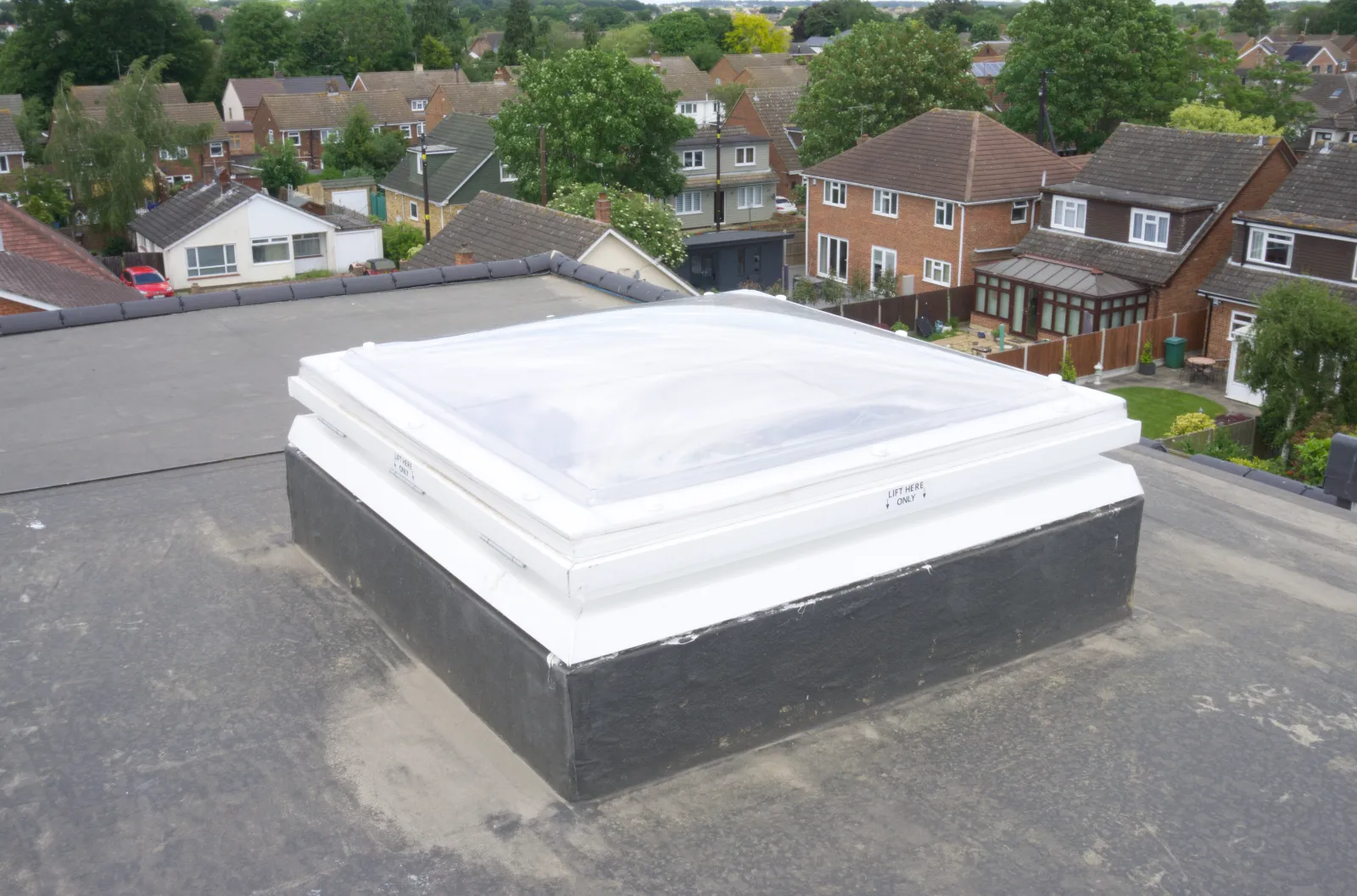

Flat roof hatch smoke vent installed on roof 1

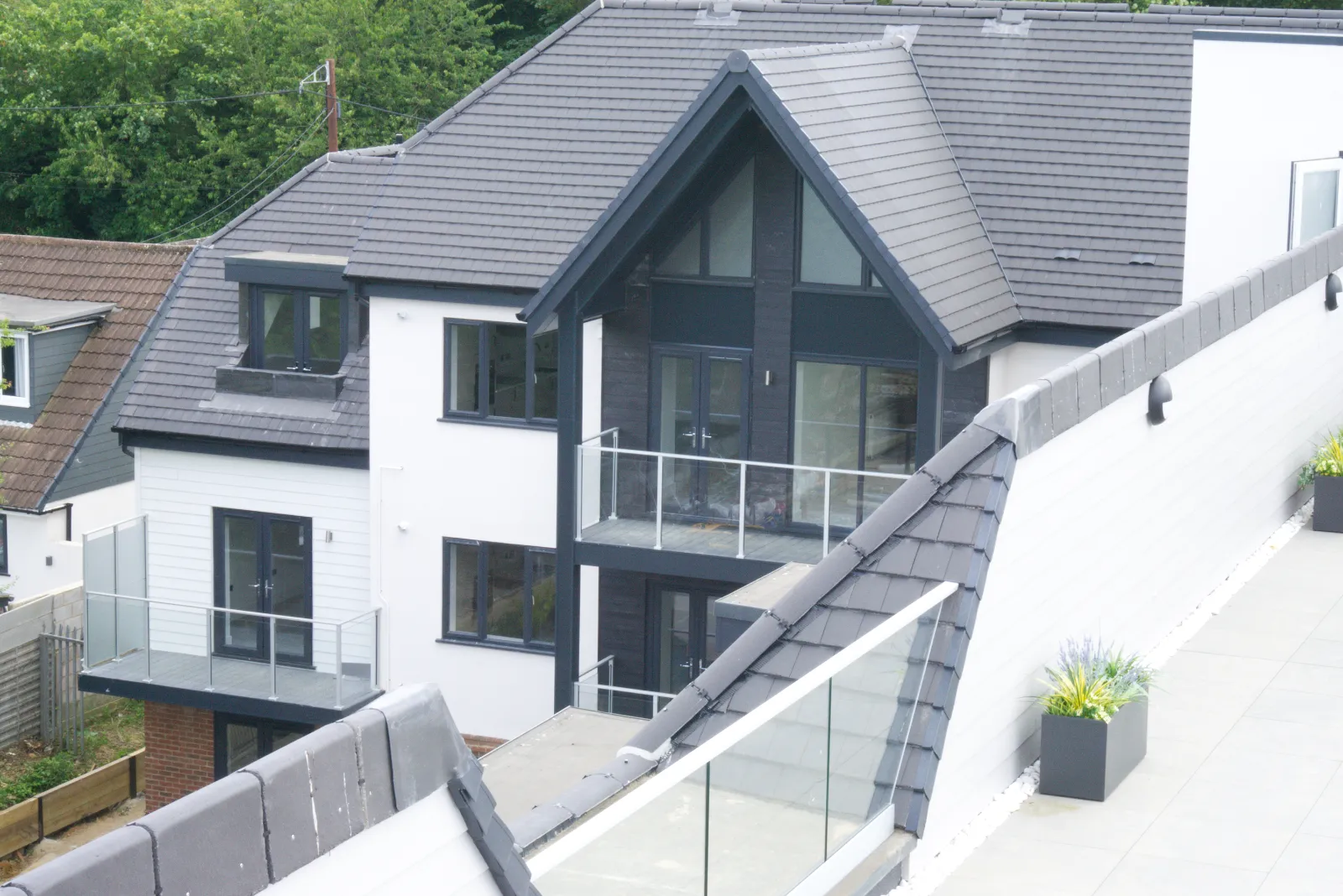

Savannah Heights Benfleet external view 2

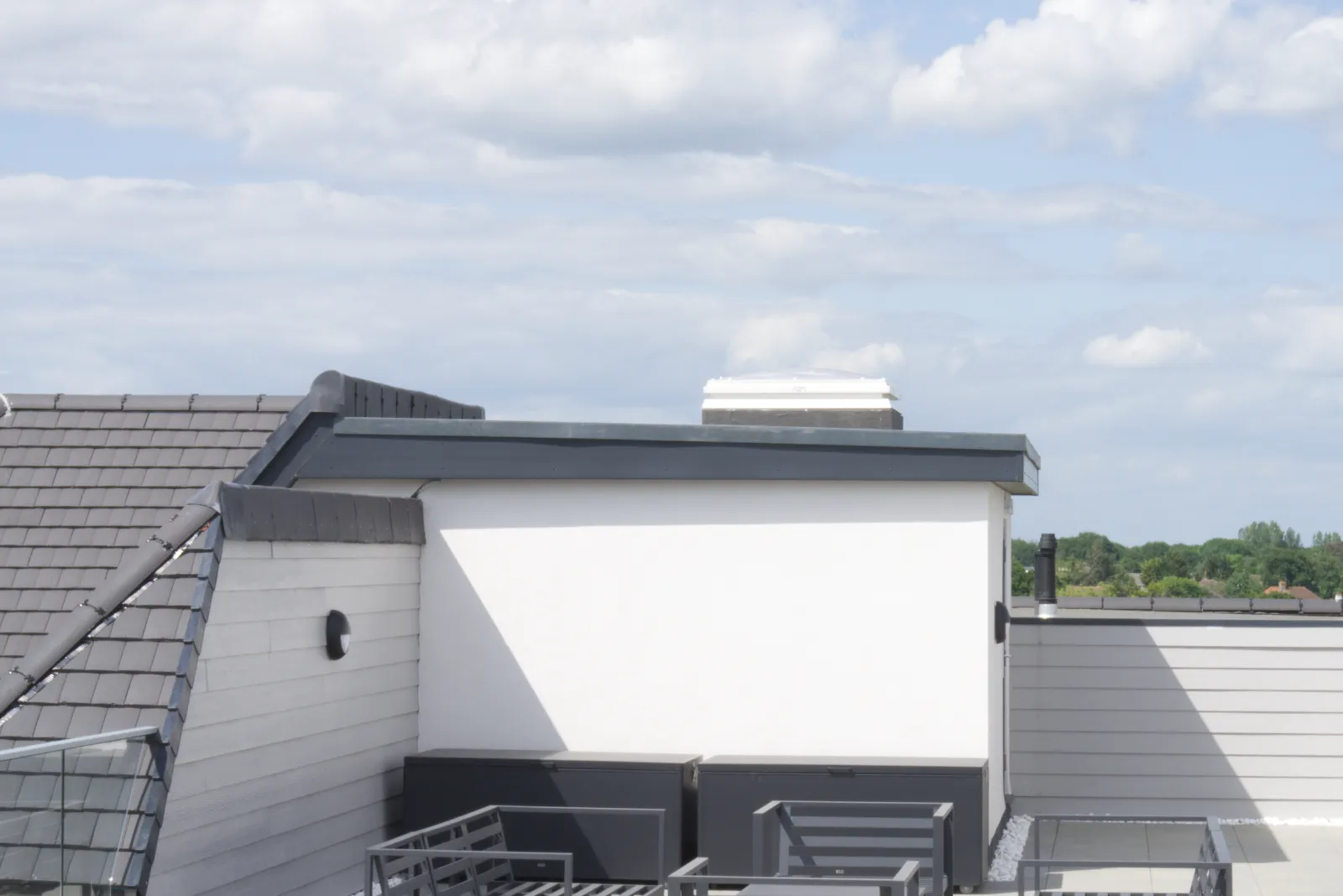

Flat roof hatch smoke vent installed on roof 3

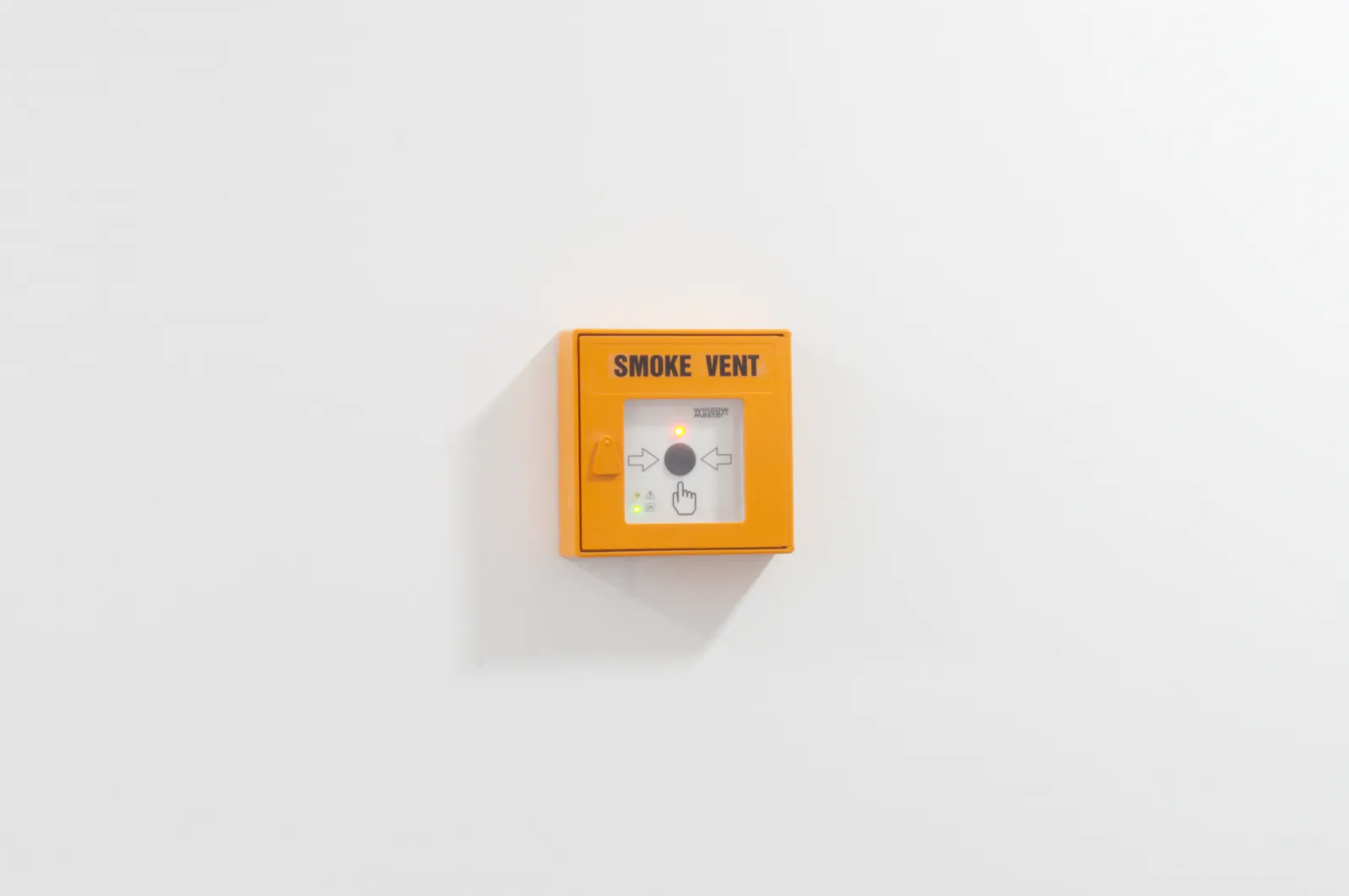

WSK 501 break glass installed

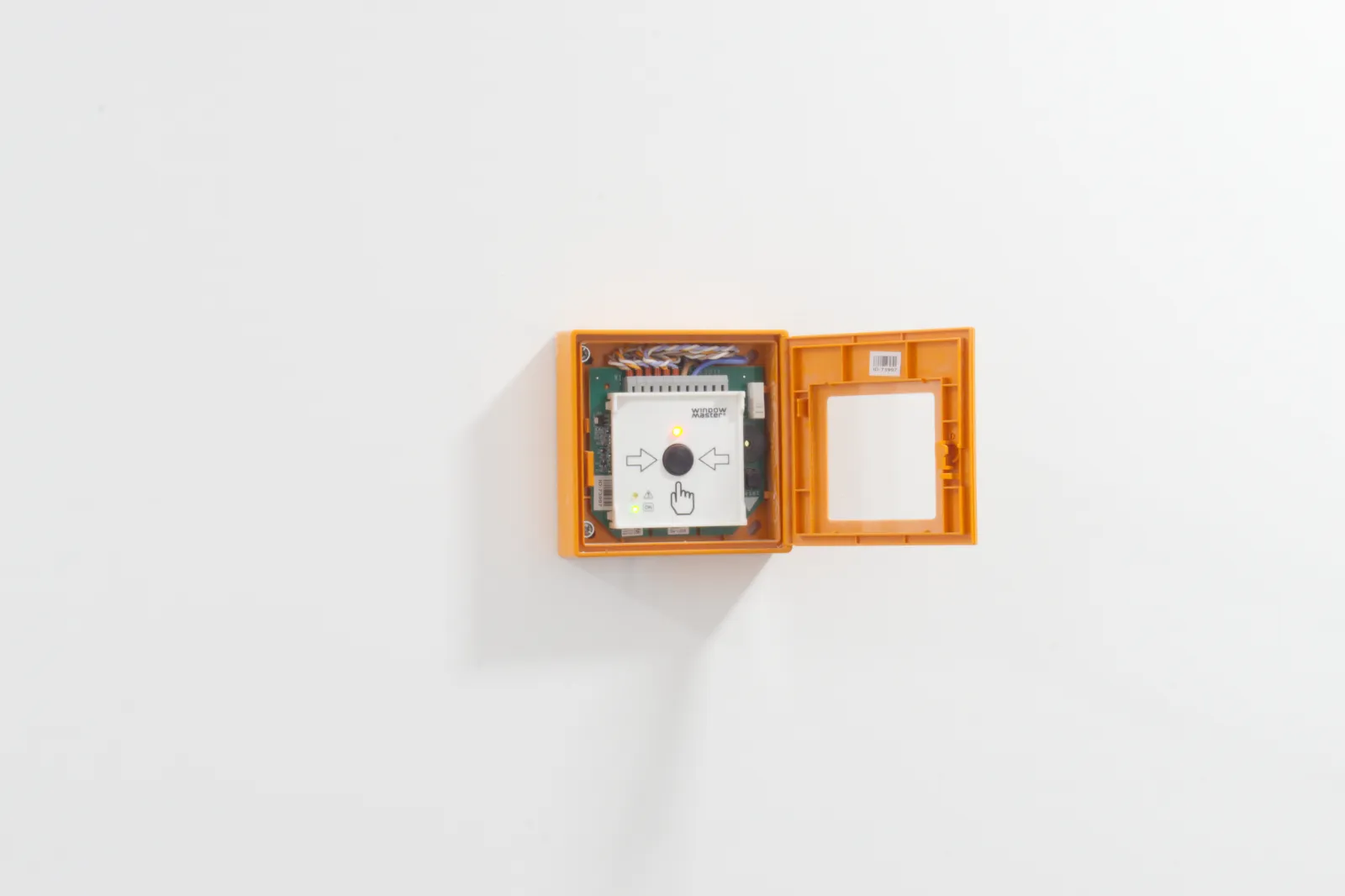

WSK 501 break glass installed with door open

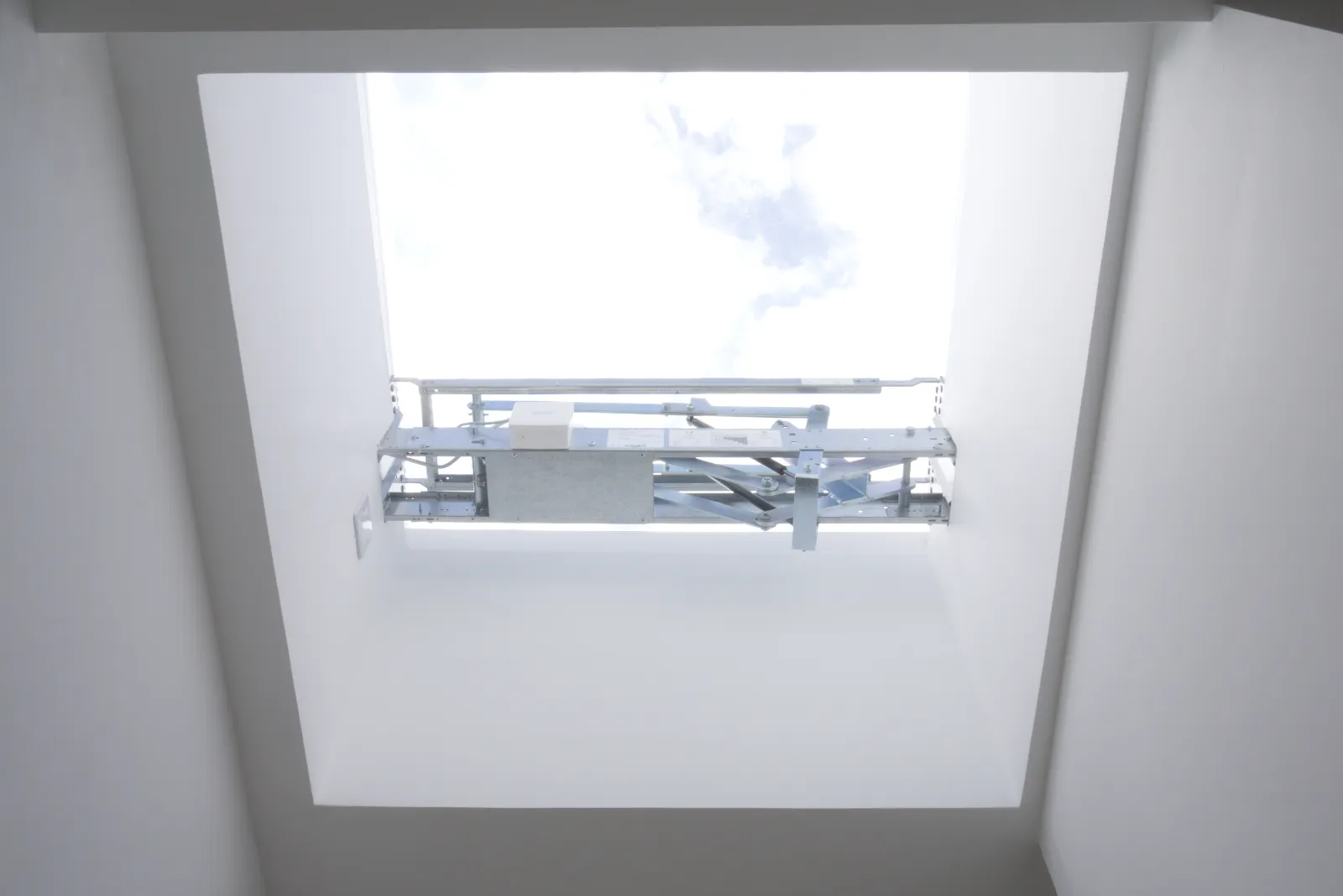

Smoke Vent Roof Hatch from Head of Stairwell 2
