Description

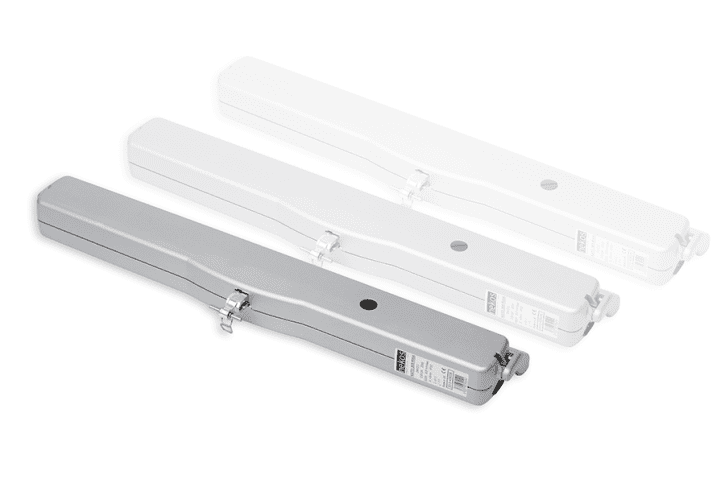

Nekos Kato 305 RWA Syncro³
The Nekos Kato 305 RWA Syncro³ version based on communication between actuators through a direct connection allows instantaneous control of the force, speed and resistance of each actuator through an encoder reading of the work of the individual motors. The continuous exchange of information allows the actuators to open and close in synchronization. Syncro³ is the evolution of the first patent that provided for installation and wiring of a maximum of two motors connected directly to one another.
▪ Today the Syncro³ software allows connection of up to 8 motors directly to one another without the need for external synchronization control units.
▪ The number of actuators to be included on the frame in Syncro³ function varies according to the dimensions, weight and type of the frame itself.
▪ For a width of more than 1200 mm the use of two motors is already recommended in order to allow correct movement and perimeter seal of the frame when closed. An additional actuator is recommended for every additional 1200 mm of width.
Additional information
Stroke (mm) | Selectable, 200, 300, 500 |
---|---|
Max Force (N) | 300 |
Supply Voltage | 24Vdc |
Max Current (amps) | 0.95 |
Max Speed (mm/s) | 9.20 |
Locking Force (N) | 2000 |
Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
IP Rating | IP32 |
Manufacturer | |
Colour/Finish | Black (RAL 9005), Grey (RAL 9006), White (RAL 9010) |
