Topp C240 Chain Actuator
Electric chain actuator model Topp C240 with 2 double-link chains, in an elegant die-cast aluminium profile, with custom-made length from 1200 mm to 4000 mm, complete with brackets and accessories for top and bottom hung windows.

Operation at 230V~50Hz or, as an alternative, at 24V DC. Max. thrust force 400N. Fast hooking and unhooking system to the window frame. Max. stroke 360 mm.
CE marked.

Stroke (mm)

360
Max Force (N)

400
Supply Voltage

230Vac
Max Current (amps)

0.22
Max Speed (mm/s)

8
Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung
IP Rating

IP30
Manufacturer

Colour/Finish

Aluminium
Application

Natural Ventilation

Brand

Topp

Topp

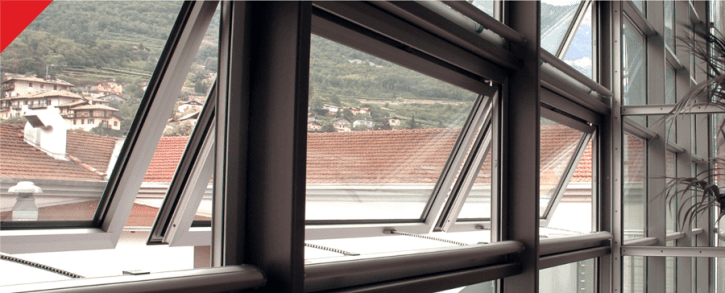

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights
  • Cupolas
Product Applications: Bottom hung, Top hung, Cupolas, Skylights

Technical Details

Model:
C240 230V
C240 24V
Power voltage:
230V ~ 50Hz
min 21V ~ max 28V
Max applicable load in thrust:
400 N
400 N
Max applicable load in traction:
300 N
300 N
Stroke:
360 mm
360 mm
Absorbed current:
0,22 A
0,75 A
Idle translation speed:
8 mms
7,5 mms
Duration of the idle stroke:
46 s
48 s
Double electrical insulation:
yes
–
Service type:
S2 di 4 min
S2 di 4 min
Operating temperature:
– 5°C + 50°C
– 5°C + 50°C
Protection Class:
  IP 30
IP30
Window mounting adjustment:
not necessary
not necessary
Parallel connection option:
yes
yes
Stroke end:
Electronic in opening, by amperometric absorption in closing
Electronic in opening, by amperometric absorption in closing
