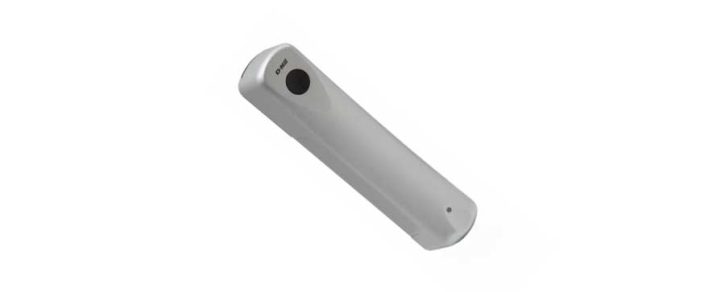

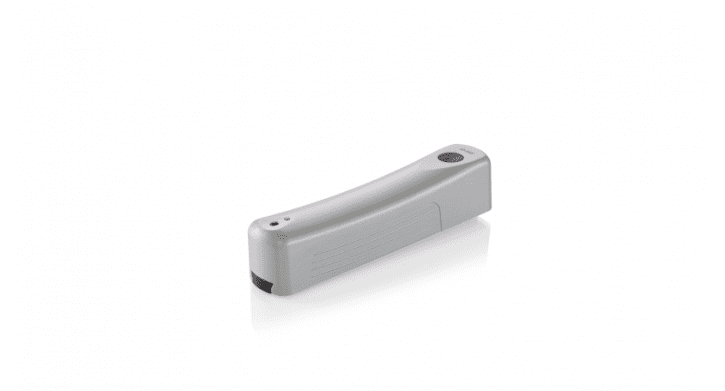

D+H FRA 11-BSY+
Safety first: Your windows lock automatically thanks to this drive. The FRA 11-BSY+ replaces the handles on your window sashes and provides an increased level of burglary protection.
With motor electronics controlled via microprocessor for communication and sequence control of connected BSY+ and PLP window drives for opening windows
To be used in conjunction with an internal chamber gearbox and 43 mm mounting distance
Can be combined with any D+H drive with BSY+ technology
BRV (for PLP) or VP (for BSY+ / ACB) option required for connected window drive
Up to 4 FRA 11‑BSY+ drives on one window possible
Position display for the locking mechanism
LED status display for the drive
Automatic locking mechanism for the window
Increased burglary protection
Technical Details
24 V DC / ±15 % / 1 A
90° / 180 °
Emission sound pressure level:
-5 °C … +75 °C
B300 (30 min / 300 °C)
Polyamide
Painted
W 43 x H 200 x D 43 mm
FRA 11-BSY+ Instructions
Silver
