Description

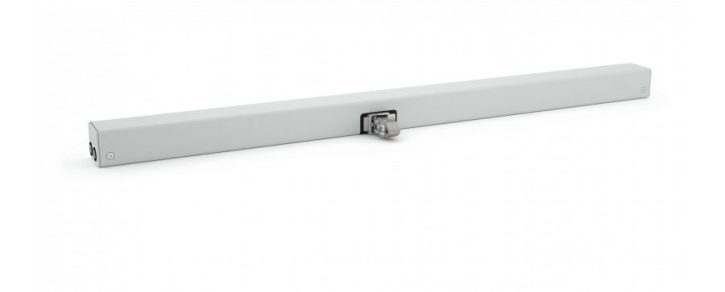

D+H CDC-0252-0350-5-ACB
Likely the quietest way to automatically open windows: D+H reduced the sound pressure level of the D+H CDC-0252-0350-5-ACB chain drive to a minimum. The 230 V power supply unit has smaller cable cross-sections and reduces costs.
Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
Perfectly suited for profile integrated and surface mounted installation
Low running noises thanks to the innovative acoustic decoupling of the drive components
Direct control via 230 V AC
Universal bracket sets for installation of all commonly available profile systems
Flexible overall lengths for customised strokes
Available in all RAL colours
D+H CDC-0252-0350-5-ACB Integrated ACB (Advanced Communication Bus) bus interface with Modbus protocol
The drive is integrated directly via open bus communication through the ACB (Advanced Communication Bus), e.g. in a building management system
Additional information
Stroke (mm) | 500 |
---|---|
Max Force (N) | 250 |
Supply Voltage | 230Vac |
Max Current (amps) | 0.20 |
Max Speed (mm/s) | 13.6 |
Locking Force (N) | 1500 |
Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
IP Rating | IP32 |
Manufacturer | |
Colour/Finish | White Aluminium (RAL 9006) |
Brand
Product Applications
This product is suitable for:
|
