D+H VCD 204-TMS+ Set

Stroke (mm)

Selectable, 350

Max Force (N)

200

Supply Voltage

24Vdc

Max Current (amps)

0.35

Max Speed (mm/s)

Locking Force (N)

2000

Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating

IP30

Colour/Finish

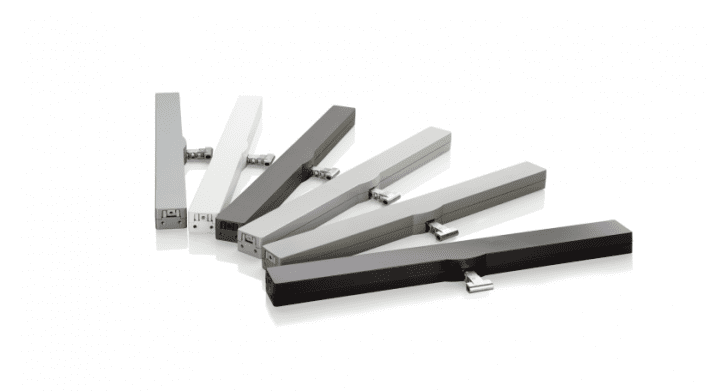

Black, Silver

Application

Natural Ventilation

D+H VCD 204-TMS+ Set
D+H set for larger ventilation windows with a safety cut-off: Two chain drives in tandem operation communicate with each other in the D+H VCD 204-TMS+ Set and work together to ensure twice the force. Power supply that can be looped.

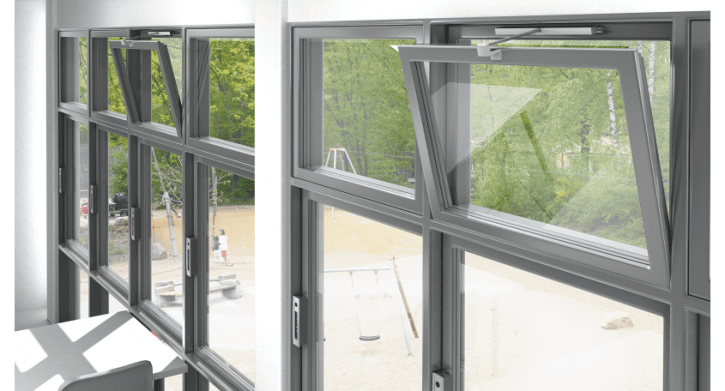

For façade windows, roof windows and ventilation flaps in conservatories
With motor electronics controlled via microprocessor

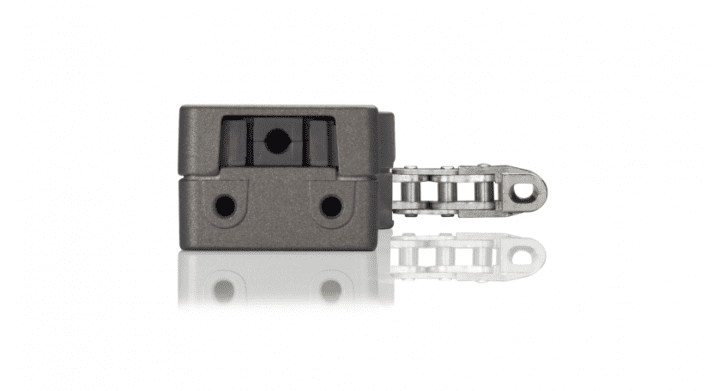

Special chain stabilisation and centred chain outlet
“TMS+” tandem safety function for operating 2 drives on one sash
Option of chain stroke programming via magnet
Reprogrammed opening stroke is transmitted to the tandem drive
Direct cable guidance between the drives for visually appealing solution
D+H VCD 204-TMS+ Set simple connection via plug connector
Programmable drive functions and different drive parameters
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)

Stroke (mm)	Selectable, 350
Max Force (N)	200
Supply Voltage	24Vdc
Max Current (amps)	0.35
Max Speed (mm/s)	6
Locking Force (N)	2000
Window Types	Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung
IP Rating	IP30
Colour/Finish	Black, Silver
Application	Natural Ventilation
