D+H CDC-TW-0502-0500-1-ACB

Stroke (mm)

500

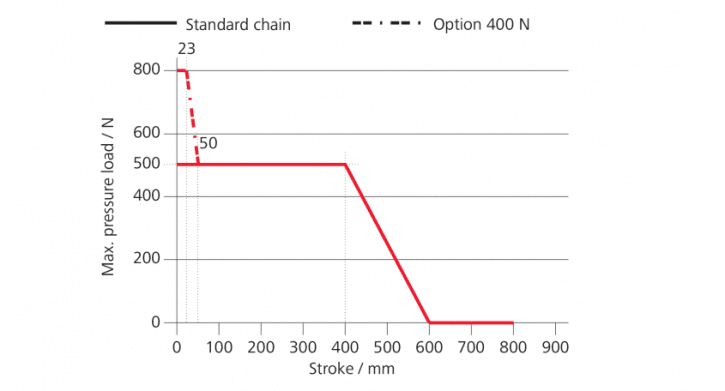

Max Force (N)

500

Supply Voltage

24Vdc

Max Current (amps)

1.6

Max Speed (mm/s)

13.6

Locking Force (N)

3000

Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating

IP32

Colour/Finish

Silver

Application

Natural Ventilation

D+H CDC-TW-0502-0500-1-ACB

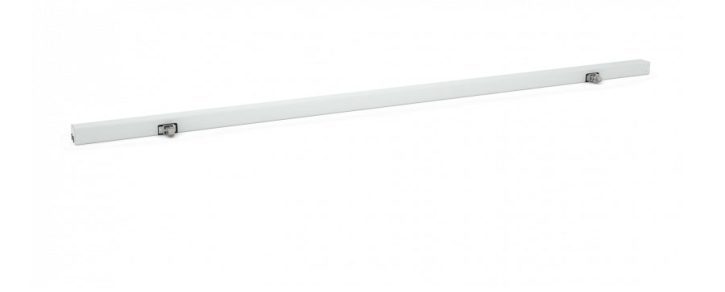

You can even open larger windows with almost no noise: The D+H CDC-TW-0502-0500-1-ACB chain drive consists of two chains in a housing. The advantage: Double the power, but installation is just as easy.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
Perfectly suited for profile integrated and surface mounted installation
Low running noises thanks to the innovative acoustic decoupling of the drive components
Direct control via 230 V AC
Universal bracket sets for installation of all commonly available profile systems

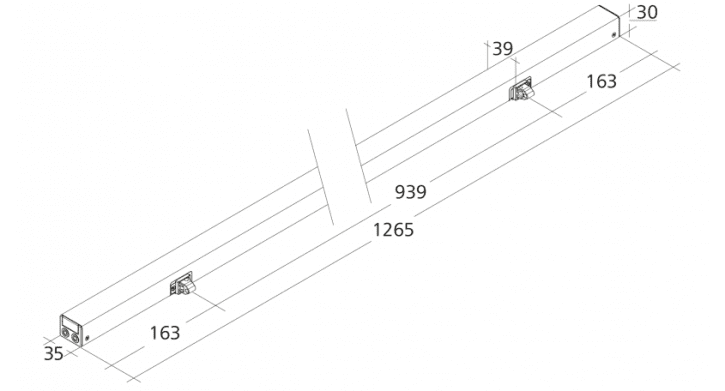

Flexible overall lengths for customised strokes
Available in all RAL colours
Integrated ACB (Advanced Communication Bus) bus interface with Modbus protocol
The drive is integrated directly via open bus communication through the ACB (Advanced Communication Bus), e.g. in a building management system

Stroke (mm)	500
Max Force (N)	500
Supply Voltage	24Vdc
Max Current (amps)	1.6
Max Speed (mm/s)	13.6
Locking Force (N)	3000
Window Types	Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung
IP Rating	IP32
Colour/Finish	Silver
Application	Natural Ventilation
