Description

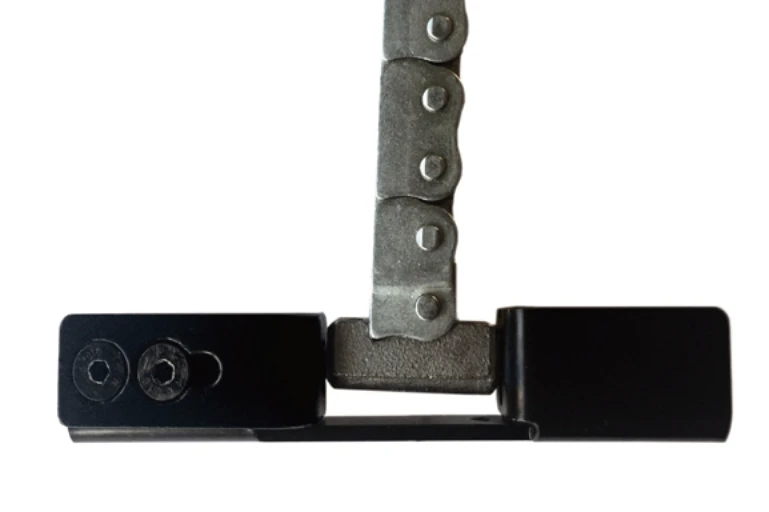

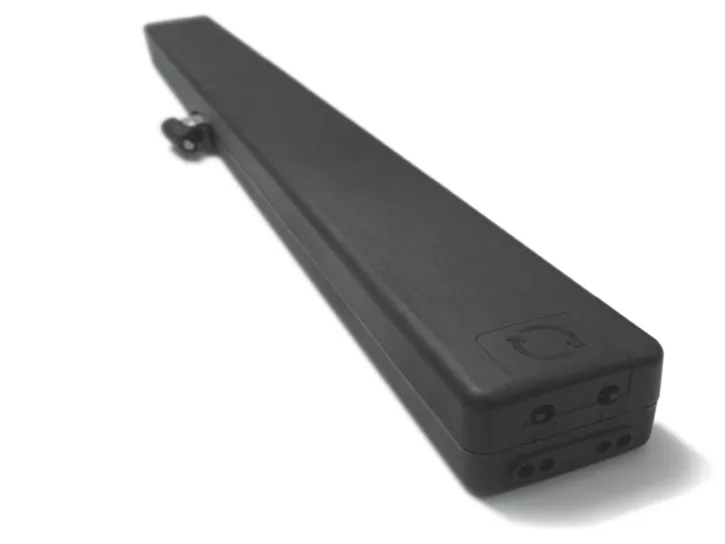

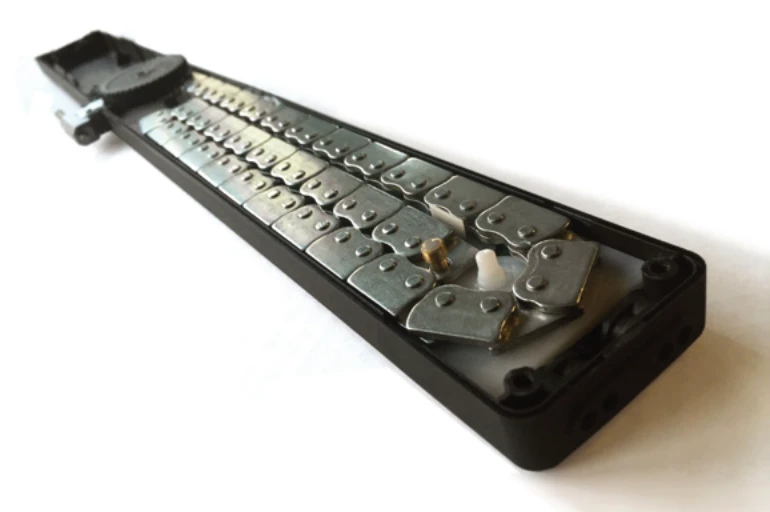

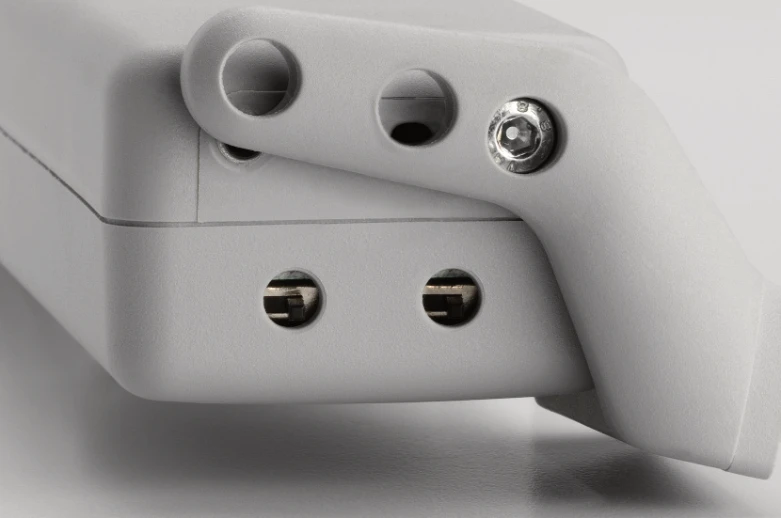

Electric C60 actuator with double link articulated chain, enclosed in a special casing, with different mounting accessories for top and bottom hung windows. Operation at 230V 50Hz or, as an alternative, at 24V DC. Maximum applicable load 300N. Adjustment of the stroke at 510 or 600mm by an external knob.
CE marked device.
Additional information
Stroke (mm) | Selectable, 510, 600 |
---|---|
Max Force (N) | 200 |
Supply Voltage | 230Vac |
Max Current (amps) | 0.14 |
Max Speed (mm/s) | 8.00 |
Window Types | Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung |
IP Rating | IP30 |
Manufacturer | |
Colour/Finish | Black, Grey, White |
