D+H CDC-0252-0500-5-ACB

Stroke (mm)

500

Max Force (N)

250

Supply Voltage

230Vac

Max Current (amps)

0.2

Max Speed (mm/s)

13.6

Locking Force (N)

1500

Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating

IP32

Colour/Finish

Silver

Application

Natural Ventilation

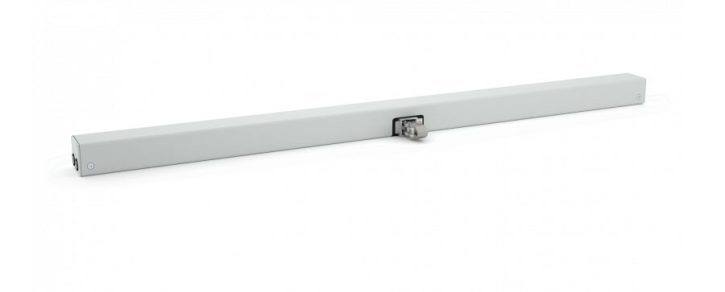

D+H CDC-0252-0500-5-ACB
Can be used in almost all air/smoke ventilation scenarios: D+H CDC-0252-0500-5-ACB chain drive is supplied with 230 V of power. This makes installation even easier. You save time and money.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
Perfectly suited for profile integrated and surface mounted installation
Low running noises thanks to the innovative acoustic decoupling of the drive components
Direct control via 230 V AC
Universal bracket sets for installation of all commonly available profile systems
The D+H CDC-0252-0500-5-ACB has Flexible overall lengths for customised strokes
Available in all RAL colours
Integrated ACB (Advanced Communication Bus) bus interface with Modbus protocol
The drive is integrated directly via open bus communication through the ACB (Advanced Communication Bus), e.g. in a building management system

Stroke (mm)	500
Max Force (N)	250
Supply Voltage	230Vac
Max Current (amps)	0.2
Max Speed (mm/s)	13.6
Locking Force (N)	1500
Window Types	Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung
IP Rating	IP32
Colour/Finish	Silver
Application	Natural Ventilation
