SHD 54-BSY+ Set

SHD 54-BSY+ Set

SHD 54-BSY+ Set

Brand: D+H | Manufacturer Part numbers: SHD 54/450-BSY+ Set, SHD

This product is suitable for:

Roof & Skylight windows
Top & bottom hung windows
Conservatory Ventialtion

Specifications at a glance:

Power Supply: 24 V DC / 15 % / 1 A

Force: 500 N

Protection Class: IP50

Colours Available:

Available in White

White

Key Specs

Stroke (mm)	Programmable, 450
Max Force (N)	500
Supply Voltage	24Vdc
Max Current (amps)	1
Max Speed (mm/s)	15.2
Window Types	Side Hung
IP Rating	IP50
Colour/Finish	Silver
Application	Natural Ventilation, Smoke Ventilation

Available Colours

Suitable Applications

Natural Ventilation

Smoke Ventilation

Call us to order now

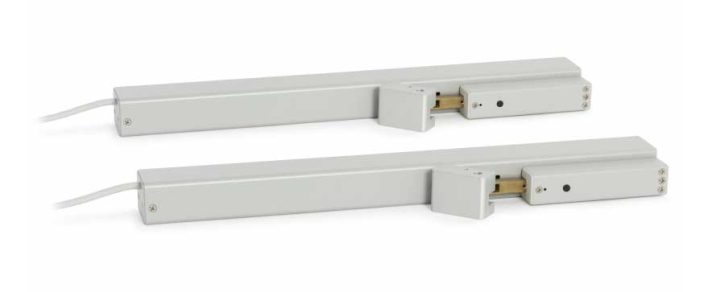

D+H SHD 54-BSY+ Set
Bundled power: D+H SHD 54-BSY+ side-hung vent drive set consists of two drives that are installed above or below the window sashes. In comparison to the SHD 54, it can open windows with dimensions of up to 1.2 m x 2 m.

For opening and closing wide side‑hung vents
For sash sizes to 1.2 x 2 m
Synchronised dual chain drive set
With motor electronics controlled via microprocessor
Opening the windows to 65° in less than 30 sec.
Locking mechanism for the window in conjunction with window locking drive (optional)
Configurable locking direction on the drive
Programmable drive functions and different drive parameters
D+H SHD 54-BSY+ Set Bracket set included

Stroke (mm)	Programmable, 450
Max Force (N)	500
Supply Voltage	24Vdc
Max Current (amps)	1
Max Speed (mm/s)	15.2
Window Types	Side Hung
IP Rating	IP50
Colour/Finish	Silver
Application	Natural Ventilation, Smoke Ventilation

Brand

Product Applications

This product is suitable for:

Roof & Skylight windows
Top & bottom hung windows
Conservatory Ventialtion

Technical Details

Model:

SHD 54-BSY+ Set

Power Supply:

24 V DC / ±15 % / 1 A

Force of pressure:

500 N

Tensile force:

500 N

OPEN running speed:

11.8 mm/s

OPEN running speed – SHEV:

11.8 mm/s

CLOSED running speed:

15.2 mm/s

Protection:

IP 32

Emission sound pressure level:

LpA ≤ 70 dB(A)

Temperature range:

-15 °C (-5 °C *) … +75 °C

Fire resistance:

B300 (30 min / 300 °C)

Housing:

Aluminium

Connection:

2.5 m silicone cable

W x H x D:

500 x 40 x 115 mm

Download PDF's

SHD 54-BSY+ Set Instructions
