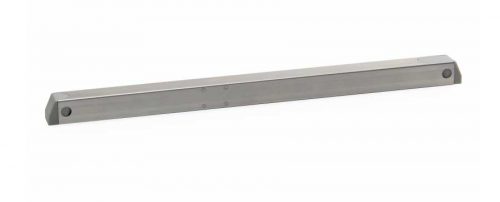

Aumuller Window Louvre Drive LLA16 S12 24 V DC

By: Joseph

Brand: Aumuller | Manufacturer Part numbers:  LLA16 S12 24 V DC

This product is suitable for:

  • Dome & Skylight windows
  • Top & bottom hung windows
  • Pivoting windows
Specifications at a glance:

Stroke: 60 – 200 mm; programmable
Force: 1600 / 1600 N;programmable
Voltage supply: 24 V DC
Protection Class: IP 40

Colours Available:

Available in Anodised Aluminium
Grey


Bracket Options:
Options listed in Download Pdf below.
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Description

Window Louvre Drive LLA. Modern SHEV systems and ventilation systems are complex high-tech systems. But louvre drives from AUMÜLLER offer more than technical perfection and outstanding functionality. They give you and your project freedom. Whether technology, appearance or equipment – intelligent systems from AUMÜLLER will meet your individual requirements without compromise.



  • Reliable Function: through high-quality, durable, wear-free materials and inherently safe construction.
  • Fast Assembly: direct fixing points without brackets, various driver adapters for universal use.
  • Self-learning: automatic configuration of synchronous operation and sequence control in the multi-drive system via external M-COM module.

Self-learning stroke detection, convenient installation and user-friendly emergency cut-off function: louvre drives from AUMÜLLER meet the precise requirements of modern slat-based window systems. How does it work?
Visually appealing: the paint finish on the drive housing in the colour of the louvre window naturally integrates into the overall design of the facade.
Smart: microprocessor controlled load dependant cut-off electronics enable synchronous operation in multi-drive systems without additional modules and project-specific programming.
Safe: An emergency cut-off programme works quickly and easily, minimising material damage in the event of a malfunction.

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267

Brand

Aumuller

Product Applications

This product is suitable for:

  • Dome & Skylight windows
  • Top & bottom hung windows
  • Pivoting windows

Technical Details

Model:

LLA16 S12 24 V DC

Switch-off electronics:

S12 – integrated, intelligent control electronics

Rated Voltage:

24 V DC

Cut-Off Current:

1.2 A

Stroke:

60 – 200 mm; programmable

Force:

1600 / 1600 N;programmable

Speed (Open / Close):

4.0 / 4.0 mm/s; programmable

Housing (W x H x L):

anodised aluminium, 35 x 35 mm, length stroke dependent; plastic end caps

Connection Cable:

halogen free, grey, 2×0.75 mm², length 1 m

Protection Rating:

IP 40

Download PDF's

LLA16 S12 24 V DC Instructions

Assembly Instructions
