Aumuller KSA TWIN S12 24 V DC (Z)

By: Joseph

Brand: Aumuller | Manufacturer Part numbers:  KSA TWIN S12 24 V DC (Z)

This product is suitable for:

  • Dome & Skylight windows
  • Top & bottom hung windows
  • Pivoting windows
Specifications at a glance:

Thrust: 1200 / 1200 N; programmable
Max Strokes: 400 – 600 mm; programmable
Voltage supply: 24 V DC
Protection Class: IP 30

Colours Available:

Available in Anodised Aluminium
Grey


Bracket Options:
Options listed in Download Pdf below.
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Description

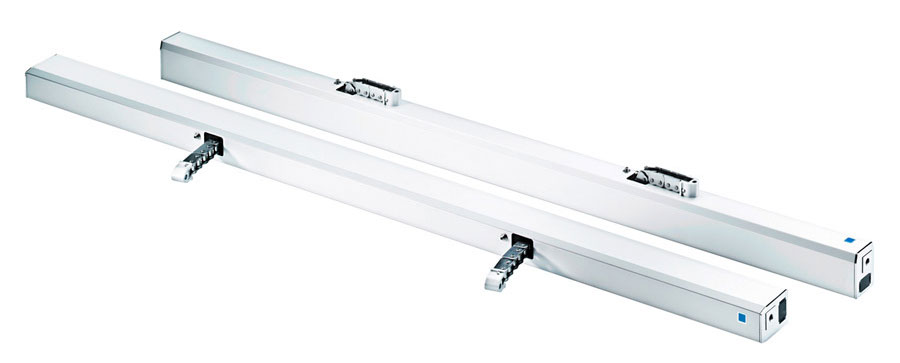

Aumuller KSA TWIN S12 24 V DC (Z)
Power, Control, Safety: large windows in roofs and facades require smart drive solutions that can always be relied upon. KSA chain drives from AUMÜLLER operate with forces of up to 1200 N. An electronic speed control system ensures smooth engine running and low noise development. The KSA TWIN or KSA D versions with two chains and double the force guarantee safety even in the most challening situations and meet the highest demands.

Efficient, esthetic and smooth running: the AUMÜLLER-Click plug-in connection solution at the end of the drive allows a quick installation as well as flexible cabling. The drive, with its symetric, chrome-plated cast aluminium covers is optimised for use in exposed areas and offers an especially quiet operation.

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267

Brand

Aumuller

Product Applications

This product is suitable for:

  • Dome & Skylight windows
  • Top & bottom hung windows
  • Pivoting windows

Technical Details

Model:

KSA TWIN S12 24 V DC (Z)

Switch-off electronics:

S12 – intelligent, progammable control electronics

Rated Voltage:

24 V DC

Cut-Off Current:

2.4 A

Stroke:

400 – 600 mm; programmable

Force (Push / Pull):

1200 / 1200 N; programmable

Speed (open / closed):

max. 12.0 / 8.0 mm/s; programmable from 5.0 mm/s

Housing (W x H x L):

anodised aluminium, 56 x 40 mm, length stroke dependant

Connection Cable:

halogen free, grey, 5×0.5 mm², length 3 m

Protection Rating:

IP 30

Download PDF's

Aumuller KSA TWIN S12 24 V DC Instructions
