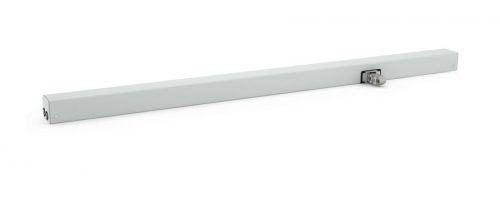

D + H LDx-1-PLP

By: Joseph

Brand: D+H | Manufacturer Part numbers:  LDx-1

This product is suitable for:

  • Louver windows
Specifications at a glance:

Power Supply: 24 V DC / ±20 % / 1.6 A
Force: 1800 N
Nominal Locking Force: 5000 N
Protection Class: IP40

Colours Available:

Available in Anodized Aluminium
SAA


Bracket Options:
Options listed in Download Pdf below.
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Description

Freely configurable and virtually silent: at up to 1800 N, the LD Series opens and closes even the heaviest louvre windows quietly and reliably. In addition to this standard version, the LDx-1-PLP is also available in an “fail-safe version”.

Max. force of pressure and tensile force of 1400 N and 1800 N
Holding force of 5000 N for very large louvre windows
Louvre window drive can be adapted for all common louvre manufacturers (such as EuroLam, Fieger, HAHN, NACO, Schneider + Nölke)
Centrally supported driver position
Developed based on DIN EN 12101-2
Can be used for openings for smoke exhaust and for daily ventilation
With motor electronics controlled via microprocessor
With a sound pressure level of LpA ≤ 45 dB(A), the drive is among the quietest of its class
Corrosion‑protected drive components
Programmable drive functions and different drive parameters
Additional passive and active anti‑trap protection system for the main closing edges with reversing function
A fail-safe version of the LDx drive is available, which guarantees opening and closing in the event of a power cut, the function is secured by an energy storage (LDx-1-PLP-FS). The technical data and dimensions of the fail-safe version is different from the LDx-1-PLP version, for more information about the fail-safe product please contact us.

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267

Brand

Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

Model:

LDx-1-PLP

Power Supply:

24 V DC / ±20 % / 1.6 A

Force of pressure:

1800 N

Tensile force:

1800 N

Nominal Locking Force:

5000 N

Nominal force:

1800 N

OPEN running speed:

2 mm/s



CLOSED running speed:

2 mm/s

Protection:

IP 40

Emission sound pressure level:

LpA ≤ 45 dB(A)

Temperature range:

-5 °C … +75 °C

Fire resistance:

B300 (30 min / 300 °C)

Housing:

Anodized Aluminium

Connection:

2.5 m silicone cable

W x H x D:

365 x 67 x 38 mm

Download PDF's

LDx-1-PLP Instructions
