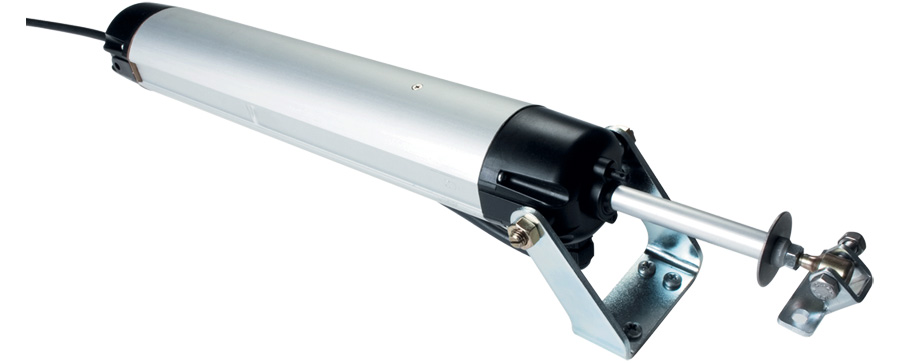

Ultraflex Control Systems Max

By: Joseph

Brand: Ultraflex Control Systems | Manufacturer Part numbers: 41325R, 40541N, 40614P, 40915Z, 40929V

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Skylights, roof windows
  • Pivot frames
  • Cupolas
Specifications at a glance:

Traction force:  450 N
Thrust force:  450 N
Strokes:  180 / 300 / 500 MM
Protection Class:  IP 54
Voltage supply: 230v AC

Colours Available:

  Available in Silver Anodised
SAA


Bracket Options:
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Description

MAIN FEATURES:
Load transmission by rigid spindle. Not suitable for outdoor application.
In this case, a special version is available on request: Max WP-specific installation guide to follow.

Available versions:
> With end bracket and adjustable eyelet for an easier installation.
> With sliding bracket and fixed eyelet: for easier installation also on window with windowsills or other internal obstacles, the sliding bracket can be fixed on the whole length of actuator, provided with two dovetail guides.

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267

Brand

Ultraflex Control Systems
Ultraflex Control Systems - UCS Products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas
Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

UCS Max

Voltage Supply:

230v AC +/-10%

Current Absorbtion (Max load):

0,7 A

Operation:

THREE WIRES (OPEN/CLOSE/COM)

Max Force:

450 N

Available stroke:

180 / 300 / 500 MM

Speed:

20 MM/S

Limit Stop:

MICRO SWITCHES/one_third_last]

Safety Stop:

THERMIC

Parallel Connection:

YES

PROTECTION CLASS:

IP65

Cable:

 1,0 M – 3 WIRES + EARTH

Download PDF's

Ultraflex Control Systems UCS Max data sheet

Ultraflex Control Systems UCS Max Manual
