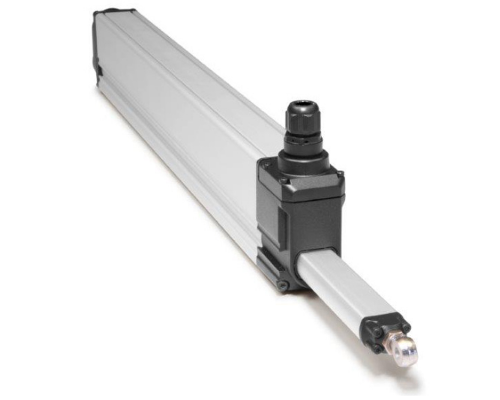

Topp S80 Linear Actuator
Topp S80 Linear Actuator

Topp S80 Linear Actuator

Call us for latest pricing

Enquire or Call 01702 826267 to Order

Brand: Topp | Manufacturer Part numbers: S80 230V, S80 24V

This product is suitable for:

  • Top-hung windows
  • Louvered windows
  • Cupolas
Specifications at a glance:

Max applicable load in thrust: 800 N

Max applicable load in traction: 800 N

Strokes: 200 – 400 – 600 – 800 – 1000 mm

Idle translation speed: 6,5 mms

Protection Class: IP 68 (Strokes 200-400) IP65 (Strokes 600-800-1000)

Voltage supply: 230v AC, 24v DC

Colours Available:

Available in silver
Silver

Topp S80 Linear Actuator
Linear electric actuator Topp model S80 with self-aligning tilting movement, complete with support and fitting accessory for top hung windows or sun blades and louvers. Operation at 230V 50Hz, or, as an alternative, at 24V DC. Max. traction and thrust force 800N.
Preset for the synchronous operation of two actuators on the same window.

Available strokes: 200 – 400 – 600 – 800 – 1000mm. Worm screw in stainless steel and IP68 protection degree for 200 and 400mm strokes. IP65 for 600, 800 and 1000mm strokes.
CE marked device.

Brand

Topp
Topp

Product Applications

This product is suitable for:

  • Top-hung windows
  • Louvered windows
  • Cupolas
Product-applications linear stem actuator

Technical Details

Model:
S80 230V
S80 24V
Power voltage:
230V ~ 50Hz
24V
Max applicable load in thrust:
800 N
800 N
Max applicable load in traction:
800 N
800 N
Strokes:
200 – 400 – 600 – 900 – 1000 mm
200 – 400 – 600 – 900 – 1000 mm
Absorbed current:

0,4 A
Idle translation speed:
0,2 A
0,1 A
Idle translation speed:
6,5 mms
6,5 mms
Duration of the idle stroke:
calculate as stroke divided by no-load speed
Double electrical insulation:
yes
–
Service type:
S2 di 3 min
S2 di 3 min
Operating temperature:
-20°C + 60°C
-20°C + 60°C
Protection Class:
  IP 68 (Strokes 200-400) IP65 (Strokes 600-800-1000)
IP 68 (Strokes 200-400) IP65 (Strokes 600-800-1000)
Parallel connection option:
yes
yes
Stroke end:
mechanical / electronic
mechanical / electronic

Download PDF's

TOPP Rack actuator S80 instructions

TOPP Rack actuator S80 pdf details
