Product Information

Description

Strong actuator suitable for roof openings for comfort ventilation

To be used together with ±24V control units or control units with MotorLink®

Synchronization of up to 4 window actuators – no need for an external synchronization module

Genuine position feedback and 3 speeds when using control unit with MotorLink®

The electronics in this actuator can be programmed to suit specific requirements – i.e. pressure- and traction force, stroke, speed/sound level – with the WAT 100 programming box, this is also possible following installation

The actuator has an integrated reverse function to ensure a prolonged life span of the window gaskets

Brackets and fastenings to be ordered seperately.

Additional information

Manufacturer

Brand

Window Master
WindowMaster brand products

Product Applications

This product is suitable for:

  • Top-hung windows
  • Bottom-hung windows
  • Pivoting frame windows
  • Roof windows
  • Cupolas

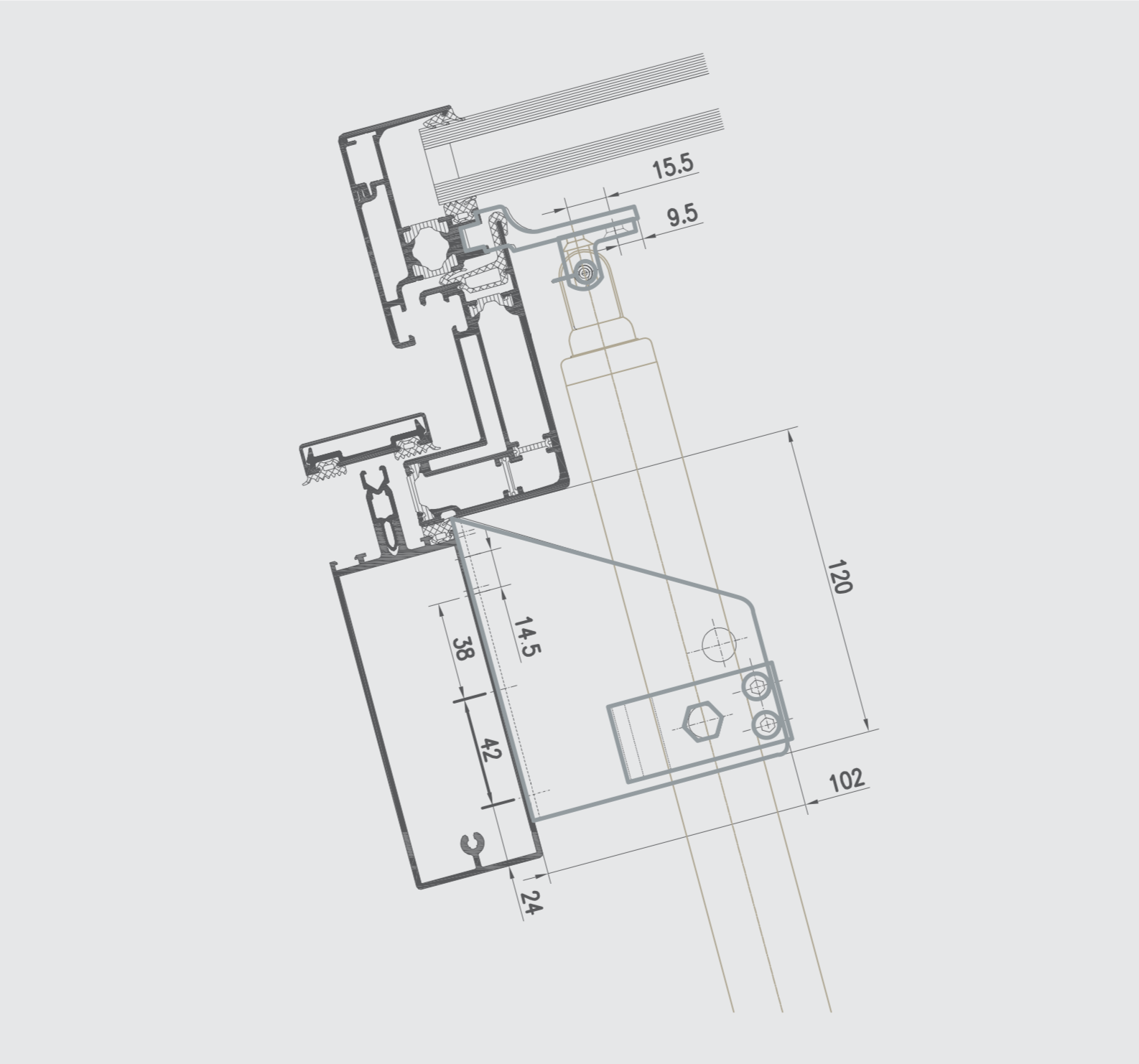

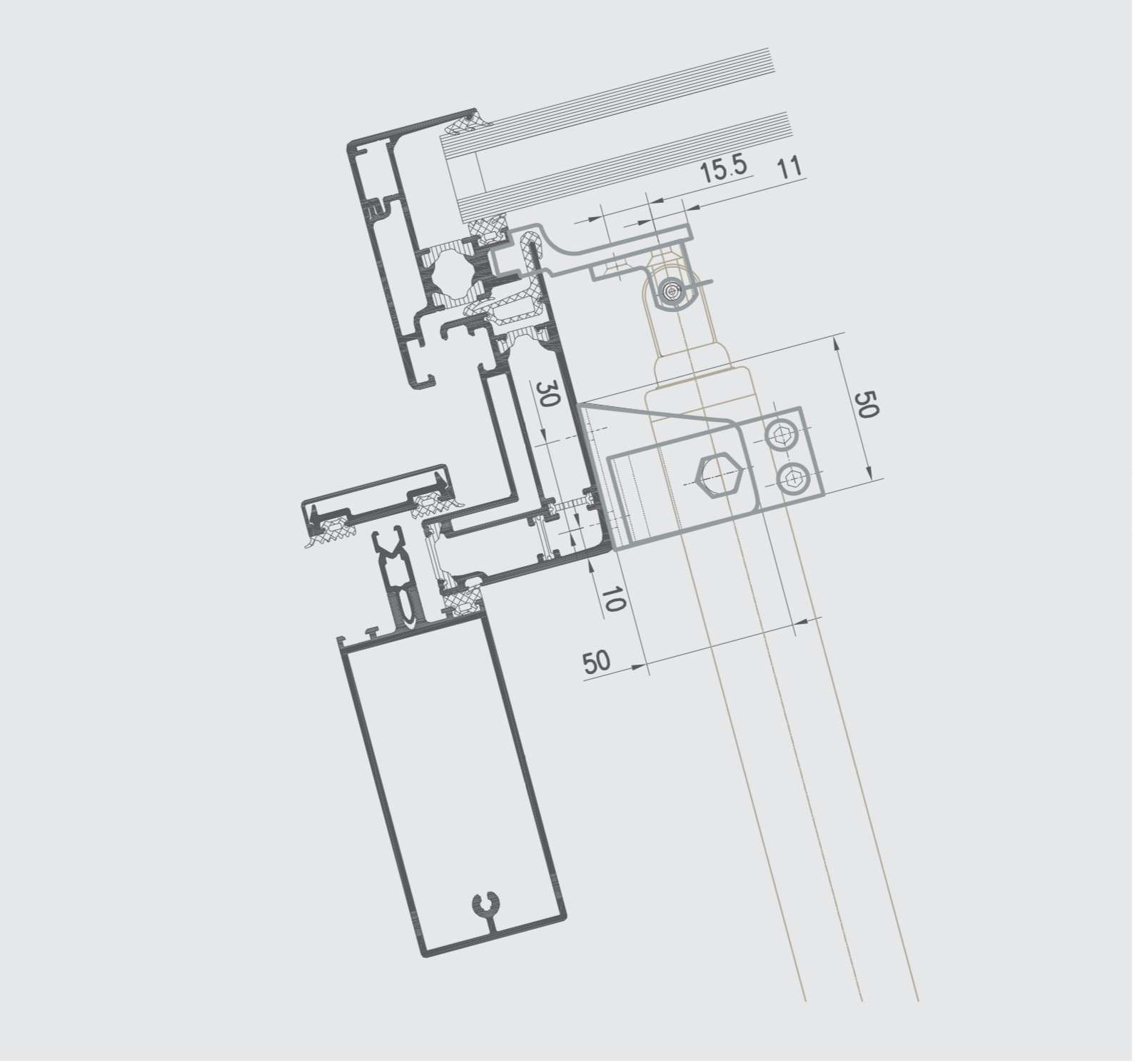

Product applications top & bottom hung , pivot windows & cupolas

Technical Details

Model:

WMS 306-n
Nominal voltage:

24V DC (+30% -20%) max. 10% ripple
Traction force:

600 N
Thrust force:

600 N
Strokes:

300 mm / 500 mm /750 mm
Absorbed current at nominal load:
0,21 / 0,14 A
0,63 A
Power absorption at nominal load:
17 W
15 W
Average speed:
4 mm /s
4 mm / s
Length of power cable:
2 m
2 m
Electrical insulation:
  Class II
Class III
Type of service:
2 cycles
5 cycles
Operating temperature:

– 20°C + 70°C
Protection Class:
IP66
IP66



End stroke stop:
Electronic with magnetic selector
Electronic with magnetic selector
Stroke travel at max load:
25 / 50 / 75 s
25 / 50 / 75 s
Dimensions:
72 x 34,5 x 344 / 444 / 594 mm
72 x 34,5 x 344/ 444 / 594 mm
Weight:
  0,89 kg
0,87 kg

Download PDF's

Window Master WMS 306-n instructions
Window Master WMS 306-n installation
Window Master WMS 306 Data Sheet
