D + H ZA-1000-1-PLP

By: Joseph

Brand: D+H | Manufacturer Part numbers:  ZA-1-PLP

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion
Specifications at a glance:

Power Supply: 24 V DC / ±15 % / 1.2 A
Force: 1000 N
Stroke: 100 – 1500 mm
Nominal locking force: 1100 N
Protection Class: IP65

Colours Available:

Available in White
White


Bracket Options:
Options listed in Download Pdf below.
Get in touch for help picking the right brackets for your window.

NOT SURE IF THIS IS EXACTLY RIGHT?
Call 01702 826267 to order or for advice
CALL TO ORDER NOW
Next Day Delivery on 100s of Products
EXPERT ADVICE
Free for Trade & Public

Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

Description

Tried-and-tested design with extra power: The ZA-1000-1-PLP visually resembles the ZA-0300-1-PLP, however, it is significantly more powerful with 1000 N of force of pressure and tensile force up to a stroke of 800 mm.

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation
With motor electronics controlled via microprocessor
Low current consumption thanks to high efficiency
Option of cable infeed above and below
Drive unit can be changed from left to right
Programmable drive functions and different drive parameters
Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection)
Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)

Buy Now

Free Live Product Support - help finding window opener products

Order Now by Phone

The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.

To Order Dial: 01702 826 267

Brand

Product Applications

This product is suitable for:

  • Roof & Skylight windows
  • Top & bottom hung windows
  • Conservatory Ventialtion

Technical Details

Model:

ZA-1000-1-PLP

Power Supply:

24 V DC / ±15 % / 1.2 A

Force of pressure:

1000 N

Tensile force:

1000 N

Nominal locking force:

1100 N

Stroke:

100 – 1500 mm

OPEN running speed:

7.1 mm/s

OPEN running speed – SHEV:

8 mm/s

CLOSED running speed:

7.1 mm/s

Protection:

IP 65

Temperature range:

-5 °C … +75 °C

Emission sound pressure level:

LpA ≤ 51 dB(A)

Fire Resistance:

B300 (30 min / 300 °C)

Connection:

2.5m silicone cable

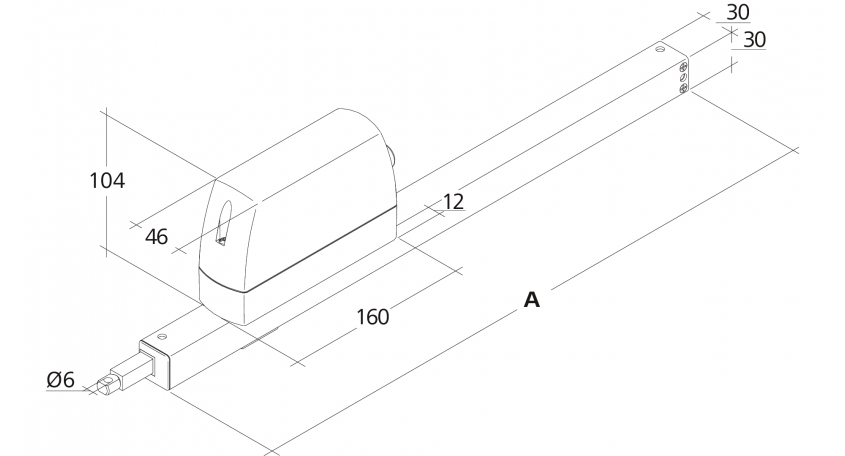

W x H x D:

A: 225 – 1662 mm

Download PDF's

ZA-1000-1-PLP Instructions
