Brand: Ultraflex Control Systems | Manufacturer Part numbers: 40209F, 40211T, 40213V, 40789D, 40790E, 40631P, 40632S, 40633U, 40847J, 40848K, 40223B, 40225D, 40227F, 40754U, 40755V
- Top-hung windows
- Bottom-hung windows
- Skylights, roof windows
- Pivot frames
Traction force: 650 N
Thrust force: 650 N
Strokes: 180 / 350 / 550 / 750 / 1000 MM
Protection Class: IP 55
Voltage supply: 24v DC
Get in touch for help picking the right brackets for your window.
Call 01702 826267 to order or for advice
Next Day Delivery on 100s of Products
Free for Trade & Public
Don’t worry call us on our product support line and our experts will give you free advice and guidance
to find the correct product for your application: 01702 826267

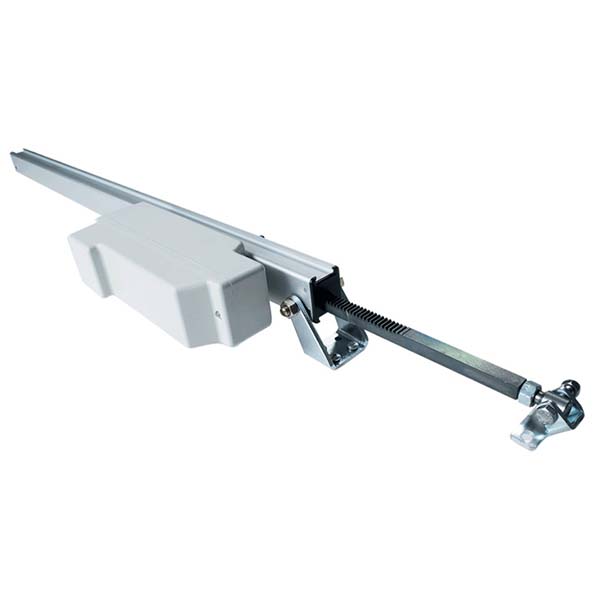

10 mm square rack transmission for stroke 180mm, 350mm, 550mm and 12 mm square rack transmission for stroke 750mm, 1000mm.
Supplied with 1,5 m cable.
Available end brackets or sliding brackets (to be ordered separately); the dovetail slide allows the fixing on the whole length of the Rack actuator. Not for multiple systems.
For large domes/top hinged windows or to provide more stability, the Rack actuator can be used either in the Dual Rack or in the Double Rack version, providing two or more push points on the same vent. Double Rack provides the double of the force.
Dual Rack: push force 650 N (230 Vac) – 750 N (24 Vdc). For each system assembly are necessary 1x Rack actuator, 1x Rack group, 1x connecting rod and 2x end brackets (part No. 40234E)
Double Rack: push force 1300 N (230 Vac) – 1500 N (24 Vdc). For each system assembly are necessary 1x Rack actuator, 1x Auxiliary Rack actuator in parallel connection, 1x connecting rod and 2 end brackets (part No. 40234E)
It is also available a Rack Group Double Pivot for system assembly providing 3 or more push points.
Order Now by Phone
The range of manual and electric window openers is vast and choosing the right solution depends on your needs. Our website carries just a sample of the most popular products we sell, but by no means covers everything we stock or can supply. It is always best to call us and we will help you confirm if it is the correct product for your exact needs.
To Order Dial: 01702 826 267
Ultraflex Control Systems
This product is suitable for:
