Mingardi Micro Evo 1

Stroke (mm)

Selectable, 100, 200, 300, 400

Max Force (N)

300

Supply Voltage

230Vac

Max Current (amps)

0.11

Max Speed (mm/s)

Window Types

Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung

IP Rating

IP32

Colour/Finish

Black, Silver, White

Application

Natural Ventilation

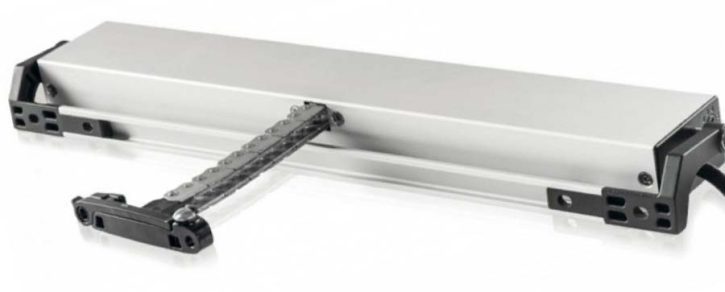

Mingardi Micro Evo 1
MINGARDI electrical linear actuator with double-link chain inside the metallic casing. Equipped with overload protection and automatic end limit setting. Equipped with 4 electronically selectable strokes. Equipped with a synchronization system that coordinates the chain movement of multiple actuators (up to 4) without using any external control unit. Available operating voltages: 110-240 V, 50/60 Hz AC or 24 V DC.

Suitable for parallel wiring. In compliance with the relevant European Directives. Available versions: anodized silver or painted black RAL 9005 casing with black accessories and cable; White RAL 9003 casing version available with white accessories and cable.

Mingardi Micro Evo 1 comes complete with accessories for installation on top hinged or bottom hinged windows.

Stroke (mm)	Selectable, 100, 200, 300, 400
Max Force (N)	300
Supply Voltage	230Vac
Max Current (amps)	0.11
Max Speed (mm/s)	13
Window Types	Bottom Hung, Centre Pivot, Rooflight, Side Hung, Skylight, Top Hung
IP Rating	IP32
Colour/Finish	Black, Silver, White
Application	Natural Ventilation
