Description
io-homecontrol® control unit
- 1A
- 1 motorline
- io-homecontrol®
- Controls window atuators with MotorLink®
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
230V rated voltage
The product use rated voltage 230V
MotorLink®
The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster
io-homecontrol®compliant
The product is compliant with io-homecontrol® and uses wireless communication

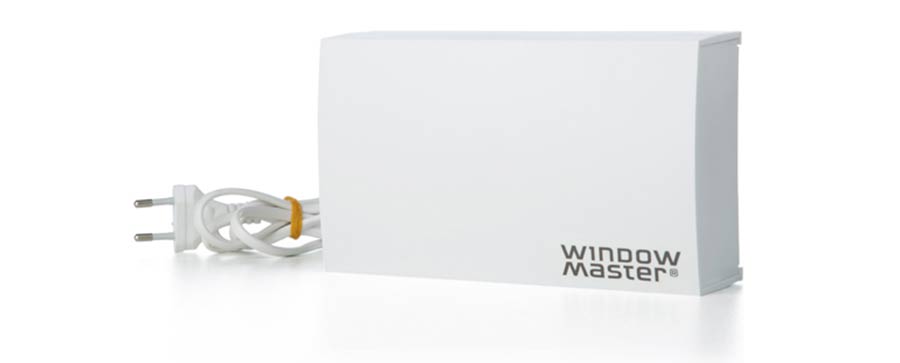

Control unit for operation of up to two 24 VDC MotorLink® actuators with a total current consumption of max 1A or WIC 01M can be connected to one window actuator and one io-homecontrol® sunscreen product from VELUX / VELFAC.
Additional information
| Manufacturer |
|---|
Brand
Window Master
Technical Details
Model:
WIC 01M
Primary voltage:
230 VAC +/- 10%, 50/60Hz, max. 35W
Secondary voltage:
24 VDC, max. 0,8A
Size:
180 x 110 x 70mm (WxHxD)
Colour:
White NSC 1000
Window Master WIC 01M Data Sheet
